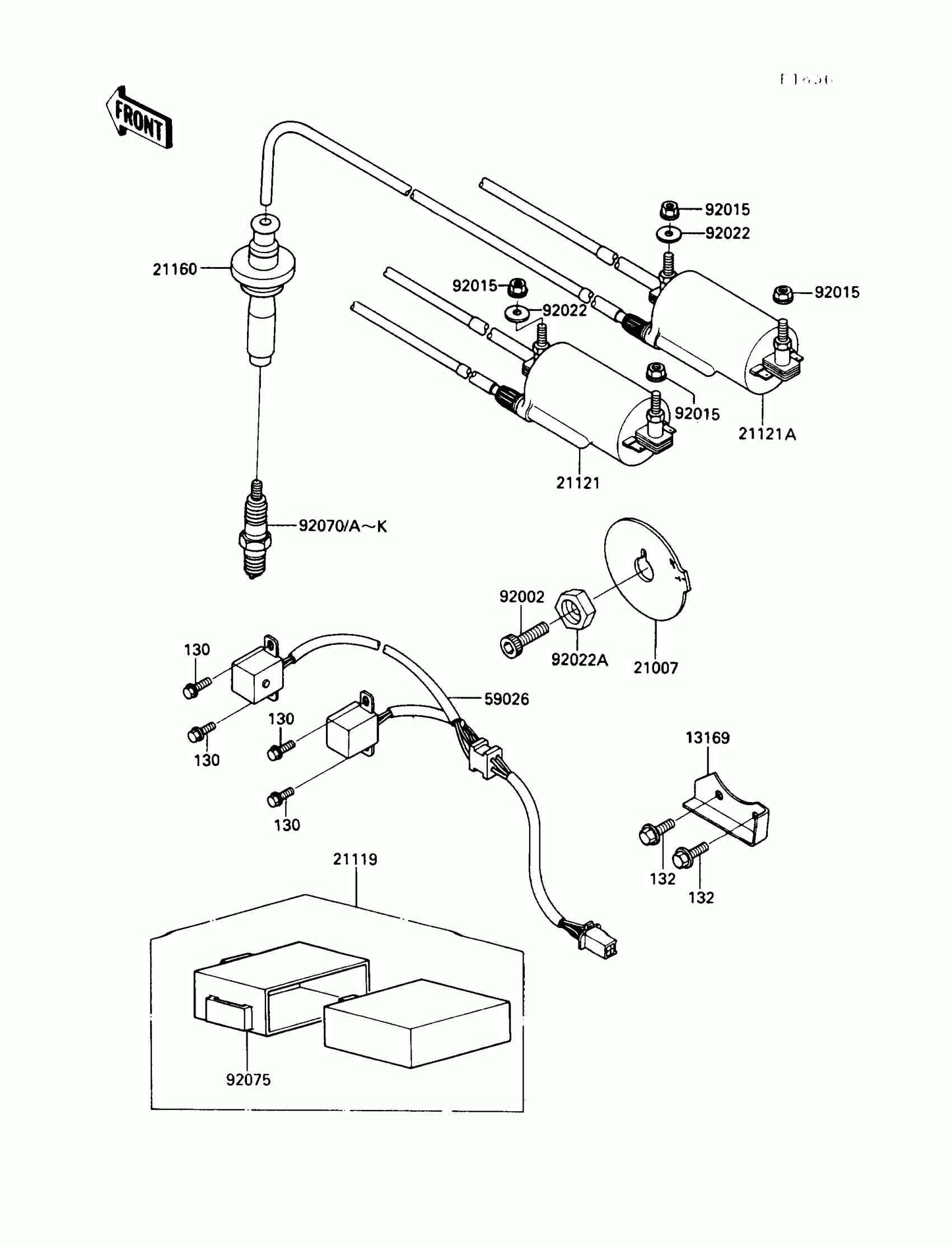

Kawasaki Concours Ignition Coil Diagram
#
Description
Price
13169
PLATE,CHAIN GUIDE
13169-1748
$15.45
21007
ROTOR,PULSING COIL
21007-1109
$52.38
21119
IGNITER
21119-1110
$577.25
21121
COIL-IGNITION,#1
21121-1110
$149.76
21121A
COIL-IGNITION,#2
21121-1111
$149.76
21160
CAP-ASSY-PLUG
21160-1065
$60.68
59026
COIL-PULSING
59026-1061
$225.70
92002
BOLT,SOCKET,8X25
92002-1442
$5.05
92015
NUT,FLANGED,6MM
92015-1193
Unavailable
92022
WASHER PLAIN
92022-024
$3.65
92022A
WASHER,ROTOR
92022-1497
$9.59
92070
Not Available As Spare Part - Friction Washer
Unavailable
92070A
PLUG-SPARK,D8EA(NGK)
92070-1011
$3.46
92070B
Not Available As Spare Part - Friction Washer
Unavailable
92070C
PLUG-SPARK,D7EA(NGK)
92070-1013
$3.62
92070D
PLUG-SPARK,DR8ES(NGK)
92070-1019
$9.44
92070E
Not Available As Spare Part - Friction Washer
Unavailable
92070F
PLUG-SPARK,D9EA(NGK)
92070-1034
$3.62
92070G
Not Available As Spare Part - Friction Washer
Unavailable
92070H
Not Available As Spare Part - Friction Washer
Unavailable
92070I
PLUG-SPARK,DR7ES(NGK)
92070-1113
Unavailable
92070J
PLUG-SPARK,DR8ES-L(NGK)
92070-1116
$3.62
92070K
Not Available As Spare Part - Friction Washer
Unavailable
92075
DAMPER,IGNITER
92075-1592
$45.76
130
BOLT-FLANGED,5X12
130G0512
$2.19
132
BOLT-FLANGED-SMALL
132G0612
$1.17
