Description

Price

13042

WEIGHT,HANDLE

13042-1006

Unavailable

13168A

LEVER,CHOKE

13168-1516

$9.37

14024

COVER,HANDLE

14024-1104

$28.37

46003

HANDLE,LH,LOW TYPE

46003-1213

$392.30

46003A

HANDLE,RH,LOW TYPE

46003-1214

$392.30

46003B

HANDLE,LH,HIGH TYPE

46003-1246

$392.30

46003C

HANDLE,RH,HIGH TYPE

46003-1247

$392.30

46019A

GRIP-ASSY,THROTTLE

46019-1077

$37.37

46075A

GRIP,LH

46075-1088

$19.11

46091B

HOUSING-ASSY-CONTROL,RH

46091-1591

$164.78

46091C

HOUSING-ASSY-CONTROL,LH

46091-1593

$209.18

92002

BOLT,SOCKET,8X30

92002-1844

Unavailable

92022

WASHER,8.5X14.5X1.6

92022-1470

$4.31

92033

RING-SNAP,OD=22.2

92033-1102

Unavailable

92066

PLUG,HANDLE

92066-1124

$6.10

92066A

PLUG

92066-1216

$4.65

92066B

PLUG,13.5X12,POLYETHYLENE

92066-1245

$6.10

92072

BAND,L=365

92072-1197

$7.84

92092

BUSHING-RUBBER,HANDLE

92092-1018

Unavailable

120

BOLT-SOCKET,8X20

120S0820

$4.15

220A

SCREW-PAN-CROS,5X25

220C0525

$3.52

220B

SCREW-PAN-CROS,5X40

220C0540

$1.92

222

SCREW-CSK-RD-CROS,5X25

222C0525

$4.30

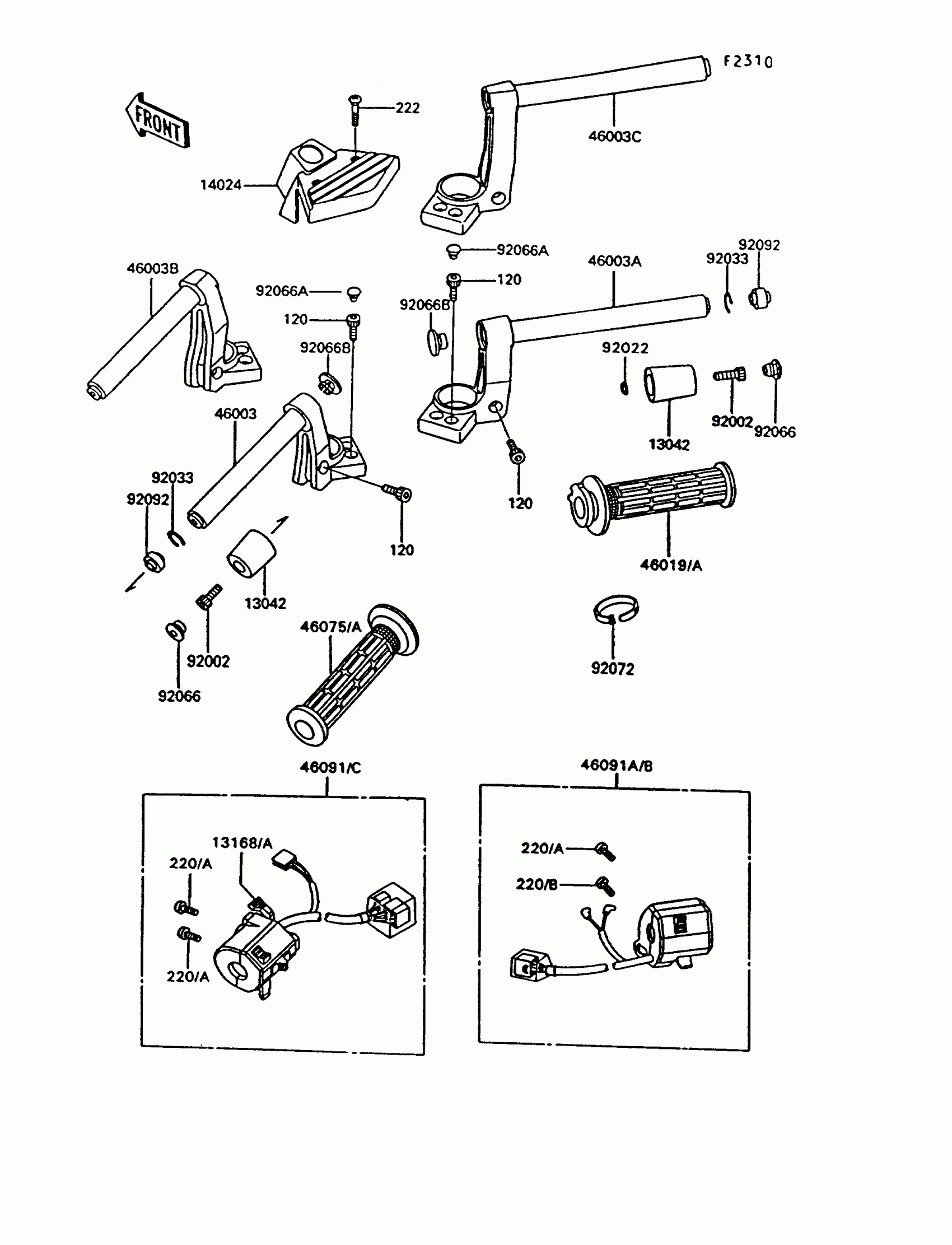

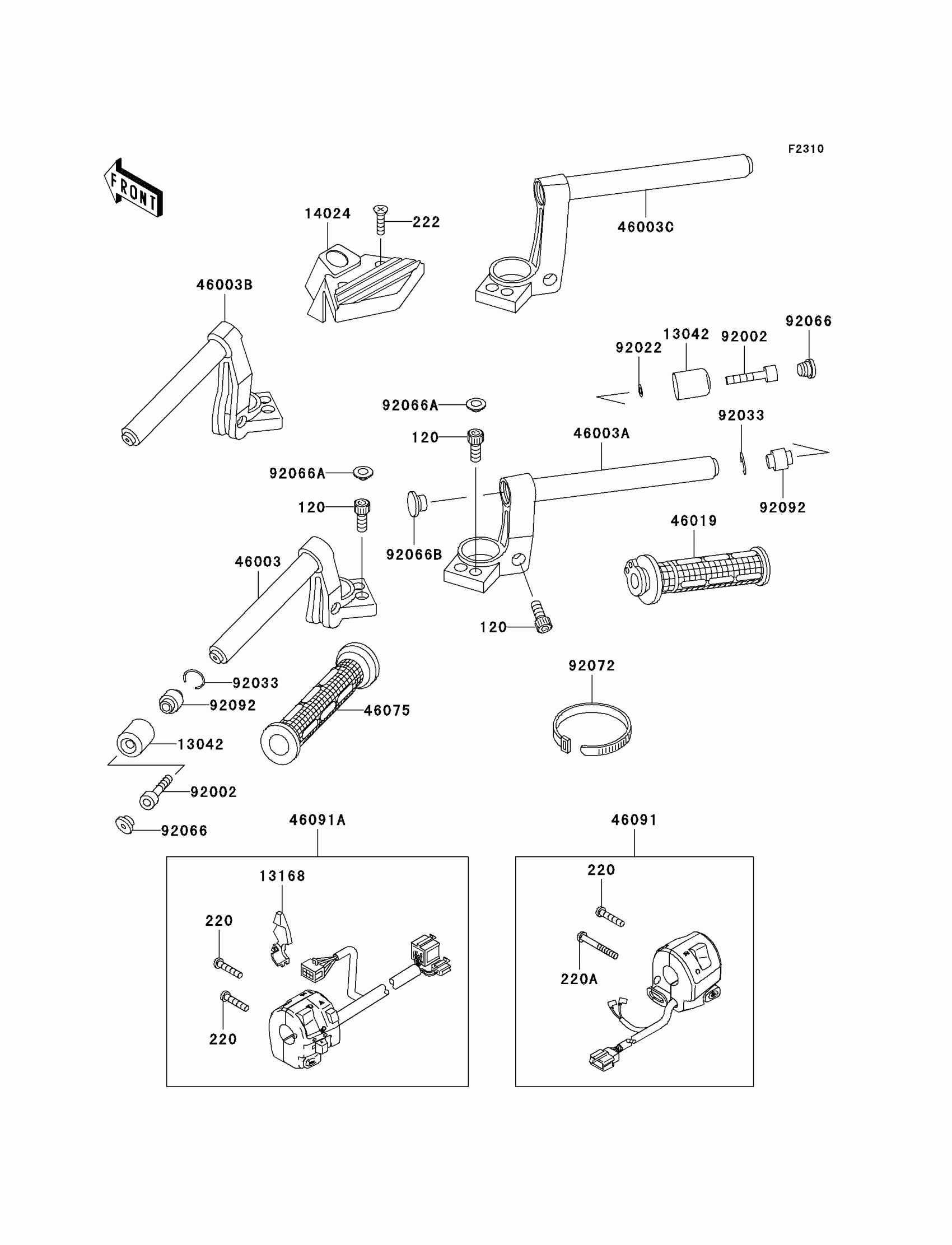

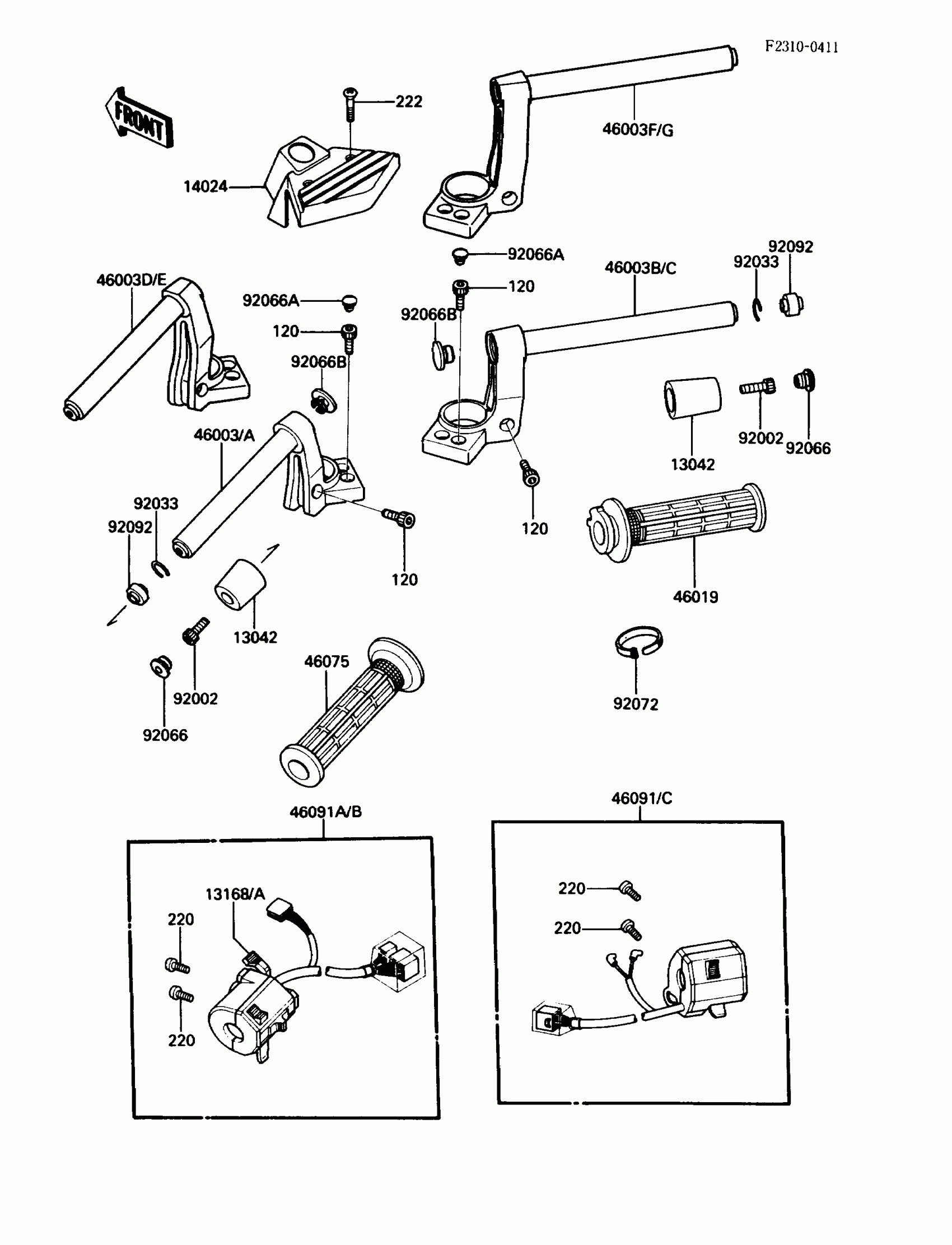

Kawasaki Concours Handlebar Diagram

WEIGHT,HANDLE

LEVER,CHOKE

COVER,HANDLE

HANDLE,LH,LOW TYPE

HANDLE,RH,LOW TYPE

HANDLE,LH,HIGH TYPE

HANDLE,RH,HIGH TYPE

GRIP-ASSY,THROTTLE

GRIP,LH

HOUSING-ASSY-CONTROL,RH

HOUSING-ASSY-CONTROL,LH

BOLT,SOCKET,8X30

WASHER,8.5X14.5X1.6

RING-SNAP,OD=22.2

PLUG,HANDLE

PLUG

PLUG,13.5X12,POLYETHYLENE

BAND,L=365

BUSHING-RUBBER,HANDLE

BOLT-SOCKET,8X20

SCREW-PAN-CROS,5X25

SCREW-PAN-CROS,5X40

SCREW-CSK-RD-CROS,5X25
