1998 Kawasaki Concours Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1998 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

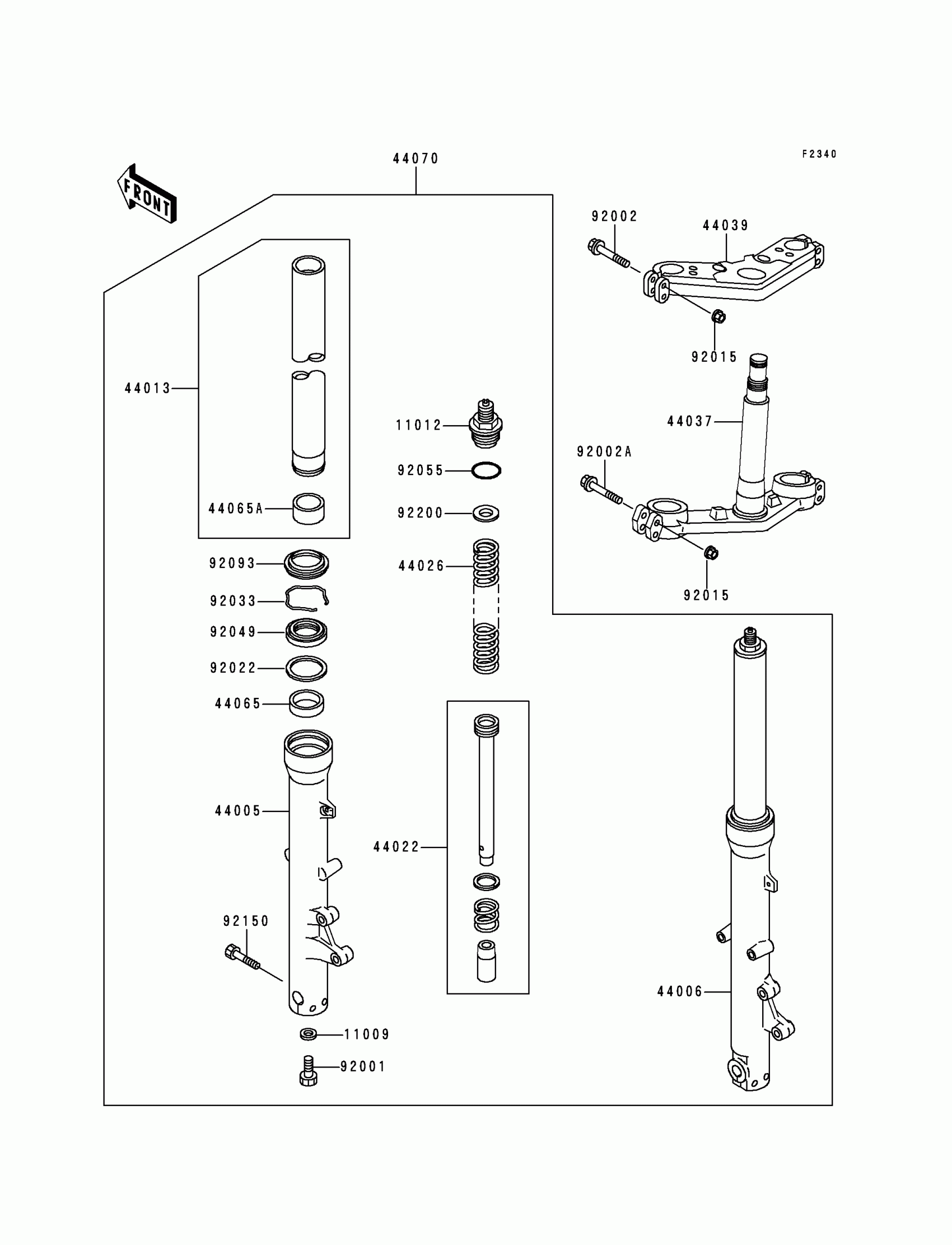

1998 Kawasaki Concours Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FORK CYLINDER BOLT

11009-1127

1
Out of stock

11012

CAP

11012-1885

1
Out of stock

44005

PIPE-LEFT FORK OUTER,BLACK

44005-1340-10

1
Out of stock

44006

PIPE-RIGHT FORK OUTER,BLACK

44006-1338-10

1
Out of stock

44013

PIPE-FORK INNER

44013-1400

1
Out of stock

44022

CYLINDER-FORK

44022-1297

1
Out of stock

44026

SPRING-FRONT FORK

44026-1560

1
Out of stock

44037

HOLDER-FORK UNDER

44037-1198

1
Out of stock

44039

HOLDER-FORK UPPER

44039-1248

1
Out of stock

44065

BUSHING-FRONT FORK

44065-1085

1
Out of stock

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1086

1
Out of stock

44070

DAMPER-ASSY,FORK,BLACK

44070-5177-10

1
Out of stock

92001

BOLT,FORK CYLINDER

92001-1309

1
Out of stock

92002

BOLT,FLANGED,8X55

92002-1158

1
Out of stock

92002A

BOLT,FLANGED,8X50

92002-1848

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1408

1
Out of stock

92022

WASHER,FORK OUTER TUBE

92022-1298

1
Out of stock

92033

RING-SNAP

92033-1036

1
Out of stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1356

1
Out of stock

92055

RING-O,FORK TOP CAP

92055-1050

1
Out of stock

92093

SEAL,FORK OUTER TUBE

92093-1359

1
Out of stock

92150

BOLT,SOCKET,10X40

92150-1468

1
Out of stock

92200

WASHER,FORK

92200-1210

1
Out of stock
