Description

Price

11009

GASKET,CLUTCH COVER

11009-1860

Unavailable

11009A

GASKET,COVER,LH

11009-1863

Unavailable

14024

COVER,LH

14024-1066

$134.15

14024A

COVER,CLUTCH

14024-1067

$344.46

14024B

COVER,SOUND ARRESTER

14024-1925

$18.03

14024E

COVER,CLUTCH COVER

14025-1814

Unavailable

32033

PIPE,CLUTCH COVER

32033-1204

$30.63

92002

BOLT,BANJO,8X20

92001-1855

Unavailable

92002A

BOLT,6X10

92002-1449

$4.11

92015

NUT,SPEED,5MM

92018-004

$4.39

92022

WASHER,5.5X20X1.2

92022-104

$4.31

92055

RING-O,20X2

92055-1146

$8.58

92066

PLUG,COVER,LH

92066-1218

$14.76

92071

GROMMET,CLUTCH COVER

92071-1108

$6.10

92075

DAMPER,CLUTCH COVER

92075-1594

$28.64

92160

DAMPER,SOUND ARRESTER

92160-1209

$133.58

132

BOLT-FLANGED-SMALL,6X20

132J0620

$3.64

132A

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

132B

BOLT-FLANGED-SMALL,6X40

132J0640

$4.44

132C

BOLT-FLANGED-SMALL,6X55

132J0655

$4.44

220

SCREW PAN HEAD 5X10

220B0510

$0.69

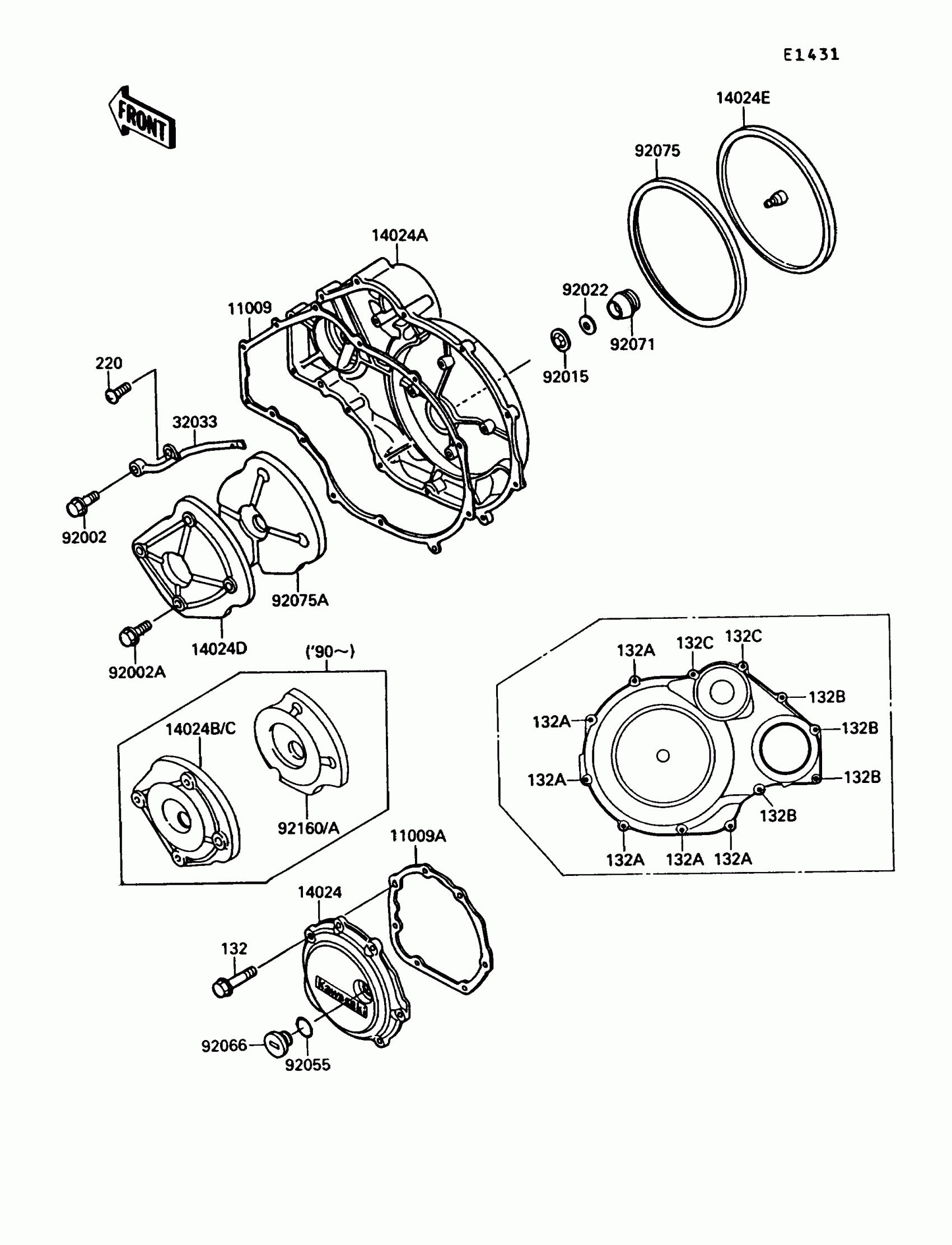

Kawasaki Concours Engine Cover Diagram

GASKET,CLUTCH COVER

GASKET,COVER,LH

COVER,LH

COVER,CLUTCH

COVER,SOUND ARRESTER

COVER,CLUTCH COVER

PIPE,CLUTCH COVER

BOLT,BANJO,8X20

BOLT,6X10

NUT,SPEED,5MM

WASHER,5.5X20X1.2

RING-O,20X2

PLUG,COVER,LH

GROMMET,CLUTCH COVER

DAMPER,CLUTCH COVER

DAMPER,SOUND ARRESTER

BOLT-FLANGED-SMALL,6X20

BOLT-FLANGED-SMALL,6X25

BOLT-FLANGED-SMALL,6X40

BOLT-FLANGED-SMALL,6X55

SCREW PAN HEAD 5X10
