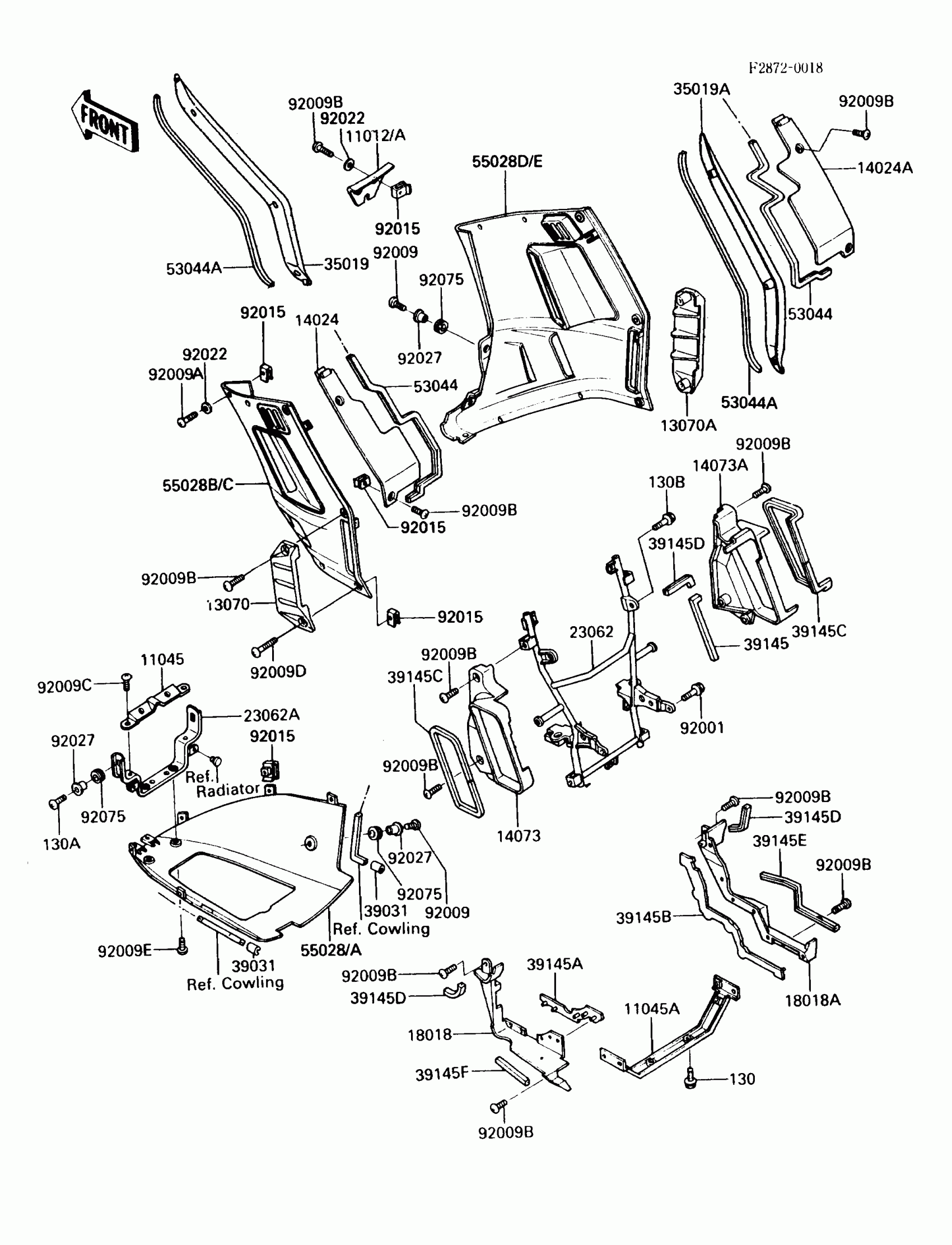

Kawasaki Concours Cowling Lowers(A1) Diagram
#
11012
CAP,RESERVOIR INSPECTION,RED
11012-1534-H3
Unavailable
11012A
CAP,RESERVOIR INSPECTION,GRAY
11012-1534-T8
Unavailable
11045
BRACKET,RESERVOIR TANK,UPP
11044-1919
$14.76
11045A
BRACKET,LOWER COWLING,RR
11044-1920
$39.92
13070
GUIDE,SIDE COWLING,LH
13070-1171
$44.82
13070A
GUIDE,SIDE COWLING,RH
13070-1172
$44.82
14024
COVER,INNER COWLING,SIDE,LH
14024-1460
Unavailable
14024A
COVER,INNER COWLING,SIDE,RH
14024-1461
Unavailable
14073
DUCT,RADIATOR,RR,LH
14073-1276
$135.06
14073A
DUCT,RADIATOR,RR,RH
14073-1284
$135.06
18018
PLATE-HEAT GUARD,SIDE,LH
18018-1068
$106.72
18018A
PLATE-HEAT GUARD,SIDE,RH
18018-1069
$121.21
23062
BRACKET-COMP,RADIATOR
23062-1064
$280.35
23062A
BRACKET-COMP,LOWER COWLING,FR
23062-1065
$38.20
35019
FLAP,SIDE COWLING,LH
35019-1193
$68.03
35019A
FLAP,SIDE COWLING,RH
35019-1194
$68.03
39031
CAP-END,TRIM
39031-1055
$6.89
39145
TRIM-SEAL,SIDE COWLING
39145-1056
$15.39
39145A
TRIM-SEAL,HEAT GUARD PLATE,LH
39145-1076
$24.84
39145B
TRIM-SEAL,HEAT GUARD PLATE,RH
39145-1077
$45.24
39145C
TRIM-SEAL,DUCT
39145-1078
$39.20
39145D
TRIM-SEAL,HEAT GUARD
39145-1079
$9.05
39145E
TRIM-SEAL,HEAT GUARD,RH
39145-1080
$24.03
39145F
TRIM-SEAL,HEAT GUARD,LH
39145-1084
$22.14
53044
TRIM,INNER COWLING
53044-1184
$27.35
53044A
TRIM,INNER COWLING
53044-1184
$27.35
55028
COWLING,LWR,C.W.RED
55028-1124-H3
$304.41
55028A
COWLING,LWR,P.G.GRAY
55028-1124-T8
$567.91
55028B
COWLING,SIDE,LH,C.W.RED
55028-1159-H3
Unavailable
55028C
COWLING,SIDE,LH,P.G.GRAY
55028-1159-T8
$457.25
55028D
COWLING,SIDE,RH,C.W.RED
55028-1160-H3
Unavailable
55028E
COWLING,SIDE,RH,P.G.GRAY
55028-1160-T8
$677.00
92001
BOLT,FLANGED,10X41,BLACK
92001-1844
$8.21
92009
SCREW,6X18,BLACK
92009-1306
$4.71
92009A
SCREW,6X22
92009-1307
$4.50
92009B
SCREW,6X14,BLACK
92009-1308
$3.92
92009C
SCREW,5X10
92009-1335
$4.38
92009D
SCREW,6X28,BLACK
92009-1400
$5.52
92009E
SCREW,6X10
92009-1402
$2.41
92015
NUT,6MM
92015-1602
$7.34
92022
WASHER,6X16X1
92022-1818
$3.24
92027
COLLAR,L=9.1,BLACK
92027-1935
$6.15
92075
DAMPER
92075-1634
$4.69
130
BOLT-FLANGED,6X10
130B0610
$0.48
130A
BOLT-FLANGED,6X18
130C0618
$1.69
130B
BOLT-FLANGED,8X12
130J0812
$0.67
