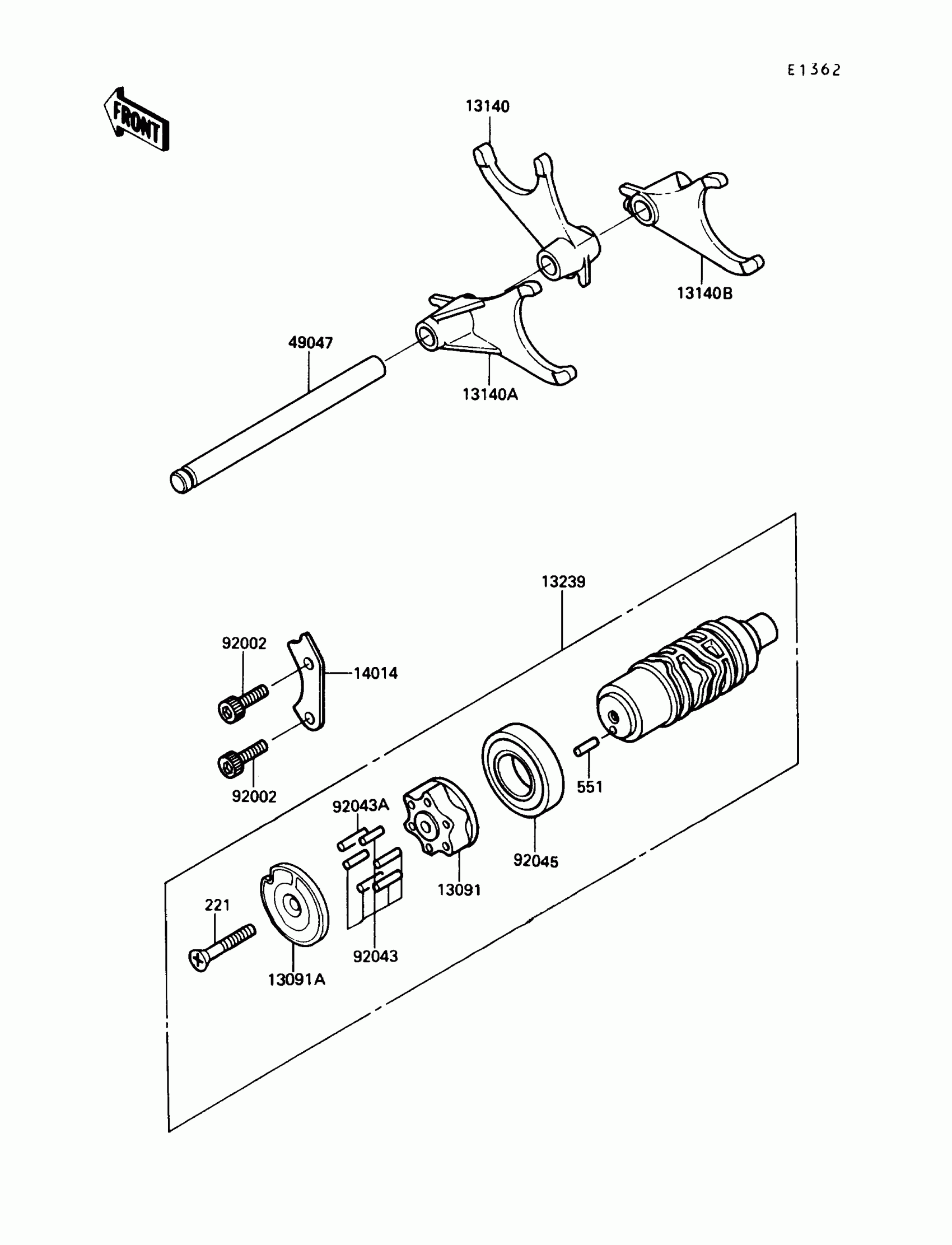

Kawasaki Concours Change Drum/Shift Fork Diagram

Description

Price

13091

HOLDER,CHANGE DRUM

13091-1275

$48.36

13091A

HOLDER,NEUTRAL

13091-1334

$26.22

13140

FORK-SHIFT

13140-1127

Unavailable

13140A

FORK-SHIFT

13140-1128

Unavailable

13140B

FORK-SHIFT

13140-1129

Unavailable

13239

DRUM-ASSY-CHANGE

13239-1122

$242.03

14014

PLATE-POSITION,CHANGE DRUM

14014-1059

$14.76

49047

ROD-SHIFT

49047-1055

$34.20

92002

BOLT,SOCKET,6X16

92002-1778

$5.00

92043

PIN,DOWEL,4X15.8

92042-014

$0.43

92043A

PIN,DOWEL,4X17.8

92042-020

$5.05

92045

BEARING-BALL,16005

92045-1045

$28.25

221

SCREW-CSK-CROS,6X45

221B0645

$4.12

551

PIN-DOWEL,4X8

551A0408

$0.78
