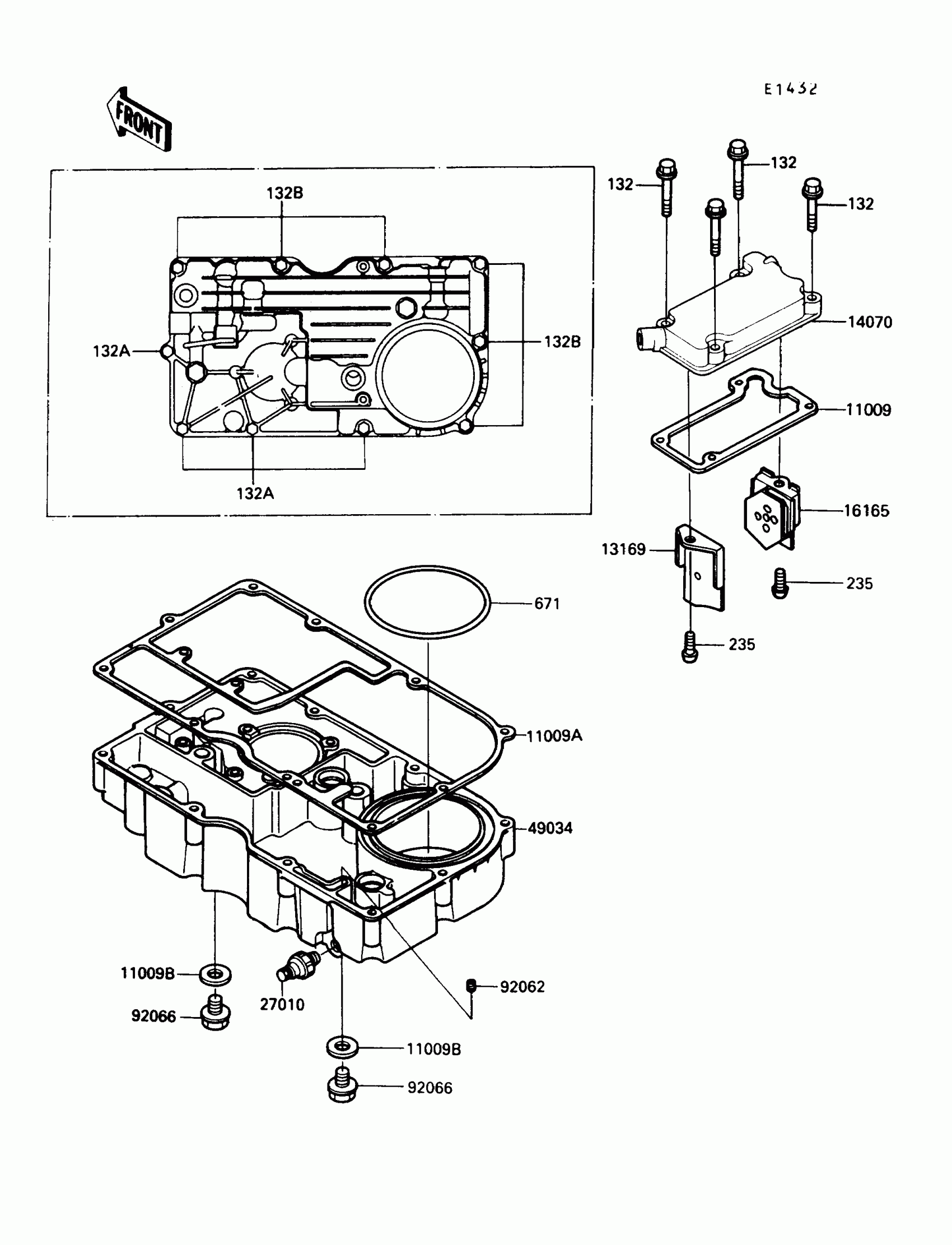

Kawasaki Concours Breather Body/Oil Pan Diagram

Description

Price

11009

GASKET,BREATHER BODY

11009-1861

Unavailable

11009A

GASKET,OIL PAN

11009-1981

$25.51

11009B

GASKET,12X22X2

92065-097

$0.74

13169

PLATE,BREATHER

13169-1967

$7.60

14070

BODY-BREATHER

14070-1072

$88.15

16165

SEPARATOR,OIL

16165-1053

$48.91

27010

SWITCH,OIL PRESSURE

27010-1155

$40.13

49034

PAN-OIL

49034-1065

$230.07

92062

NOZZLE,YELLOW

92062-1057

Unavailable

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

132

BOLT-FLANGED-SMALL,6X25

132E0625

$1.13

132A

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

132B

BOLT-FLANGED-SMALL,6X40

132J0640

$4.44

235

SCREW-PAN-WP-CROS,6X10

235B0610

$3.51

671

O RING,90MM

671B2590

$9.91
