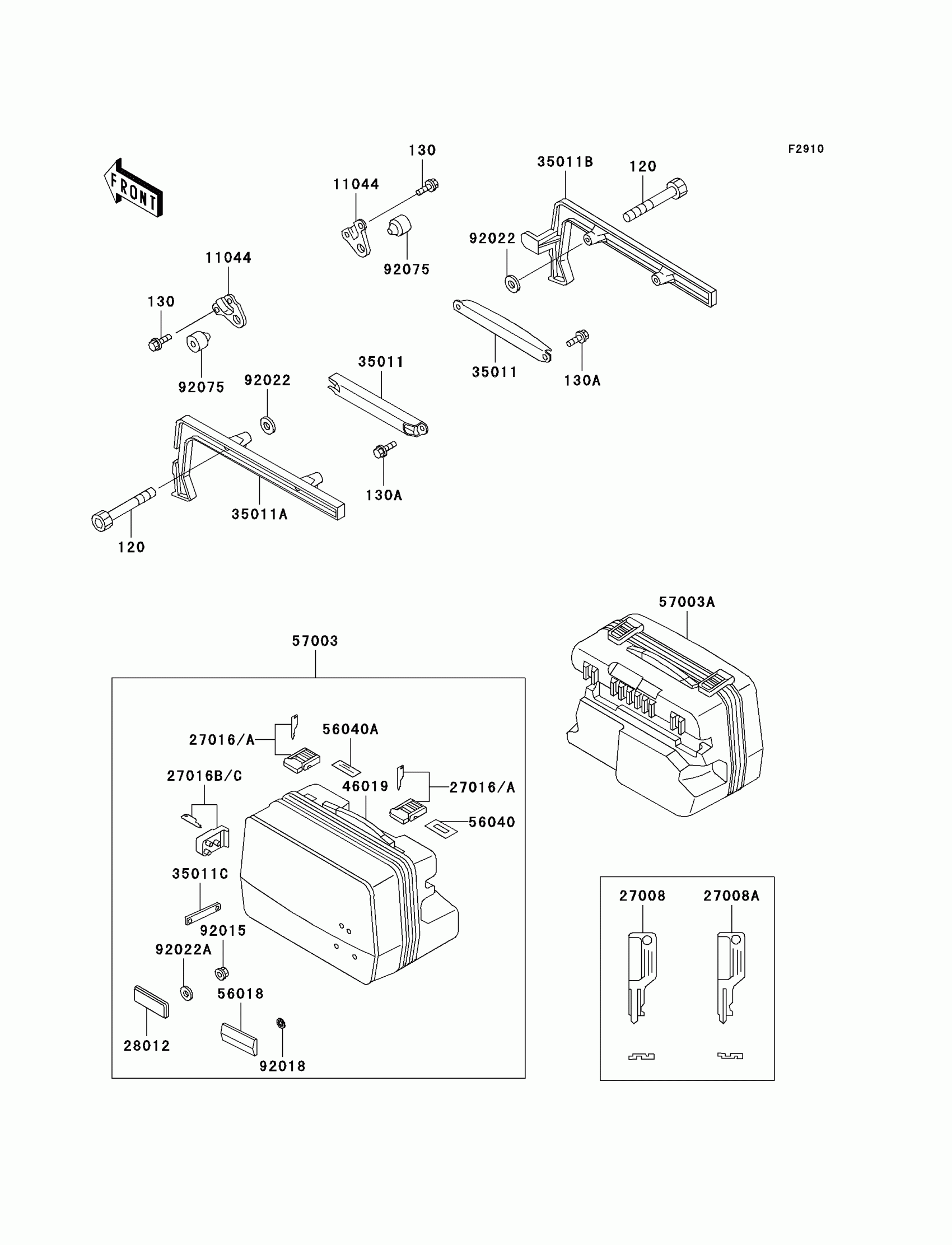

Kawasaki Concours Accessory Diagram
#
Description
Price
120
BOLT-SOCKET,8X60
120S0860
$4.97
130
BOLT-FLANGED,6X12
130G0612
$1.69
130A
BOLT-FLANGED,8X16
130J0816
$1.66
11044
BRACKET,SIDE BAG STOPPER
11044-1918
$21.29
27008
KEY-LOCK,#A,SIDE BAG
27008-1127-AA
Unavailable
27008A
KEY-LOCK,#B,SIDE BAG
27008-1127-BB
Unavailable
27016
LOCK-ASSY,#A,SIDE BAG
27016-1066-AA
$121.38
27016A
LOCK-ASSY,#B,SIDE BAG
27016-1066-BB
$121.38
27016B
LOCK-ASSY,#A,SIDE BAG MOUNT
27016-1067-AA
$121.38
27016C
LOCK-ASSY,#B,SIDE BAG MOUNT
27016-1067-BB
$121.38
28012
REFLECTOR-REFLEX
28012-1077
$23.25
35011
STAY,BAG
35011-1299
$152.08
35011A
STAY,BAG,LH
35011-1300
$121.87
35011B
STAY,BAG,RH
35011-1301
$121.87
35011C
STAY,SIDE BAG
35011-1302
$17.88
46019
GRIP-ASSY,SIDE BAG
46019-1063
$66.63
56018
MARK,SIDE BAG,CONCOURS
56018-1948
$65.10
56040
LABEL-WARNING,SIDE BAG,PAYLOAD
56040-1178
$6.10
56040A
LABEL-WARNING,SIDE BAG,LOCK
56040-1192
$6.10
57003
BAG-ASSY,SIDE,LH
57003-1068
$1,101.79
57003A
BAG-ASSY,SIDE,RH
57003-1069
$1,101.79
92015
NUT,LOCK,FLANGE CAP,5MM
92015-1263
$6.57
92018
NUT,PUSH,3MM
92018-005
$2.76
92022
WASHER,8.5X20X1.6,BLACK
92022-1317
$4.31
92022A
WASHER,NYLON,5.3X11.5X1.5
92022-1521
$3.92
92075
DAMPER
92075-1859
$7.62
