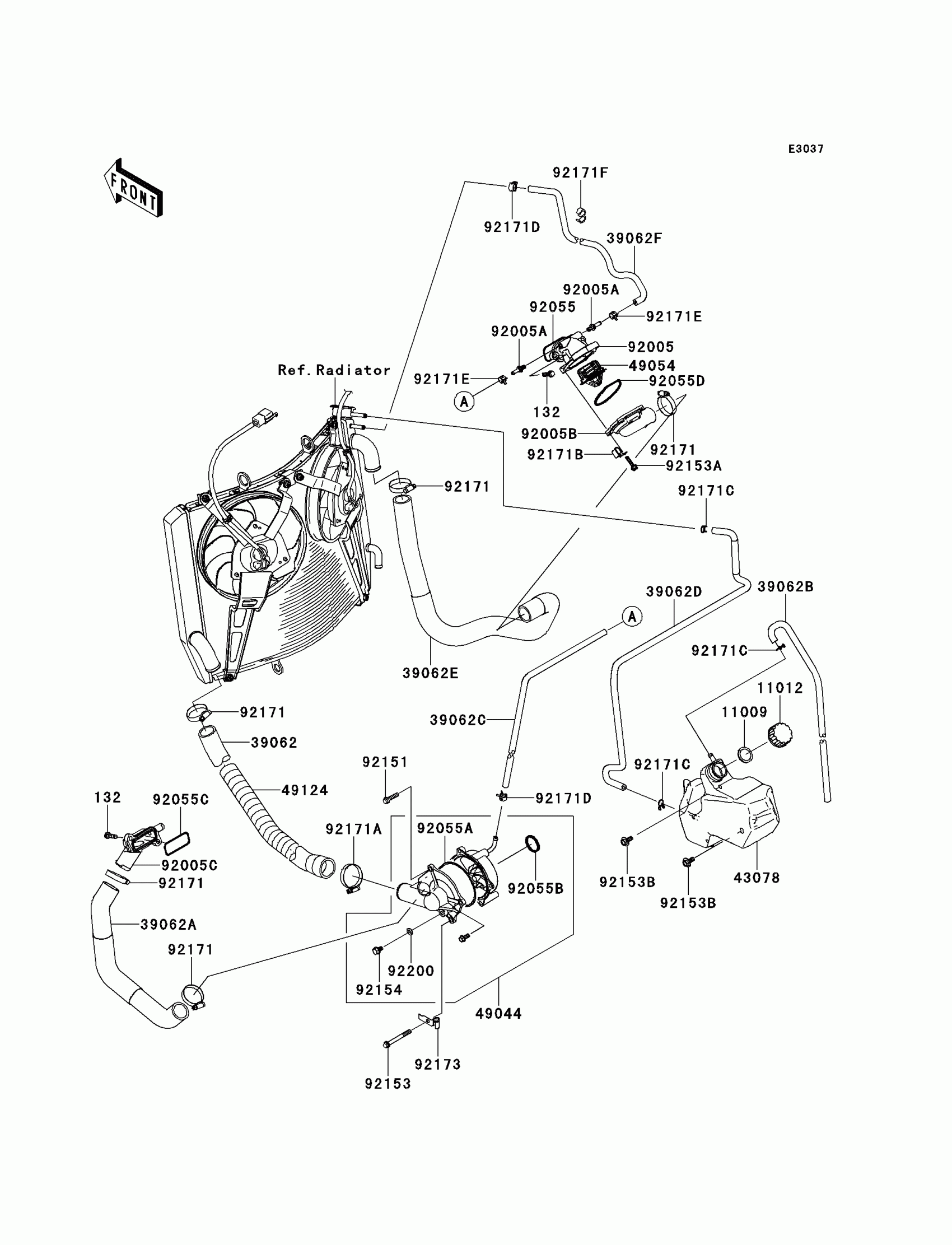

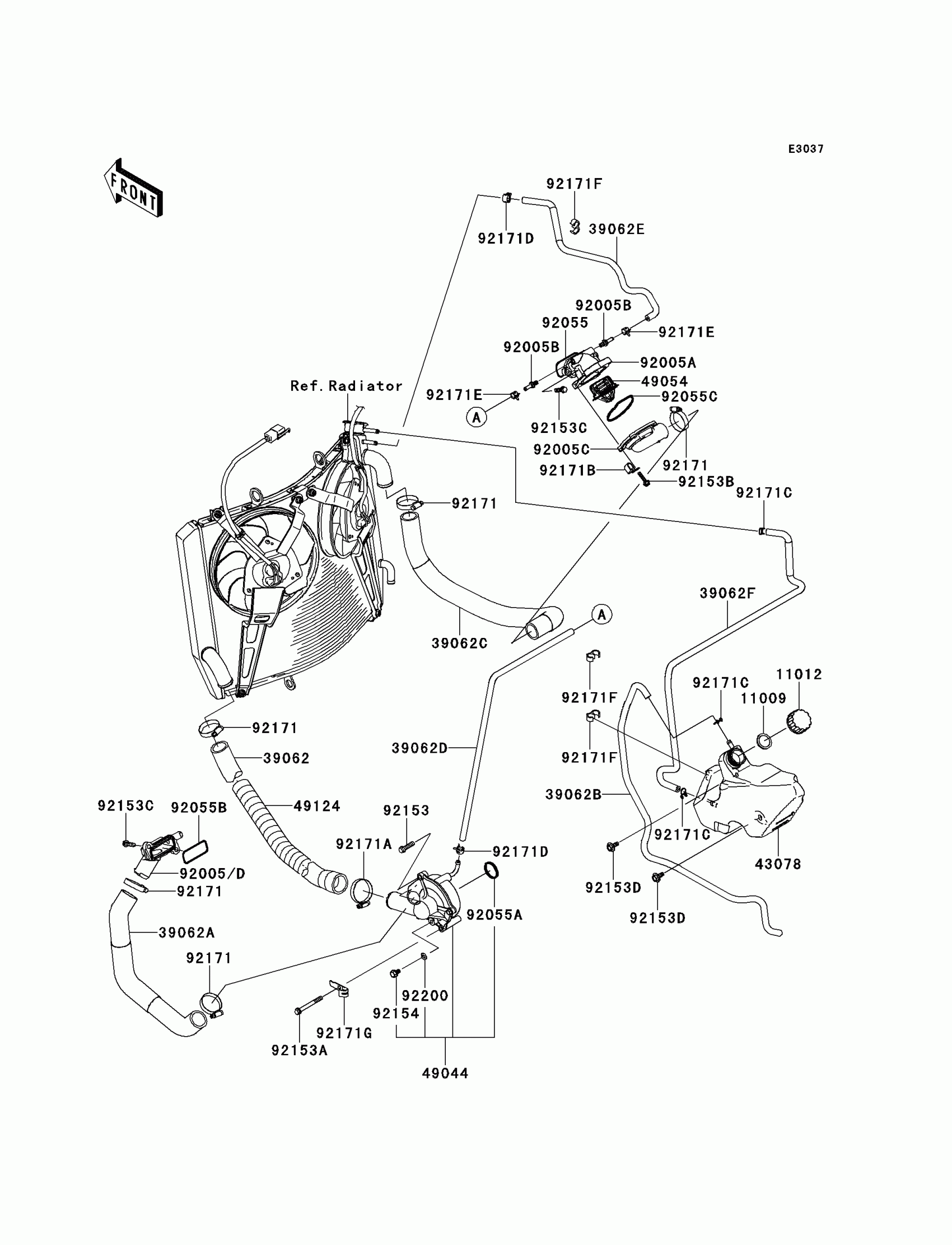

Kawasaki Concours™ 14 Water Pipe Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$1.34

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

39062

HOSE-COOLING,RAD-W/P

39062-0113

$37.51

39062A

HOSE-COOLING,W/P-CYL.HEAD

39062-0114

$43.39

39062B

HOSE-COOLING,L=597

39062-0151

$11.82

39062C

HOSE-COOLING,4X10X490

39062-0170

$8.60

39062D

HOSE-COOLING,L=797

39062-0218

$16.09

39062E

HOSE-COOLING,CYL.HEAD-RAD.

39062-0306

$69.26

39062F

HOSE-COOLING,AIR VENT

39062-0325

Unavailable

43078

RESERVOIR

43078-0063

$32.10

49044

PUMP-WATER

49044-0006

Unavailable

49054

THERMOSTAT

49054-1067

Unavailable

49124

SPRING-TUBE GUARD

49124-0003

$47.03

92005

FITTING,THERMO CASE

92005-0047

$41.04

92005A

FITTING

92005-0056

$10.21

92005B

FITTING,THERMO CAP

92005-0076

$79.65

92005C

FITTING,CYLINDER

92005-0104

$39.87

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

$3.73

92055A

RING-O

92055-0157

Unavailable

92055B

RING-O

92055-0158

$9.09

92055C

RING-O

92055-1402

$7.84

92055D

RING-O,THERMOSTAT CAP

92055-1699

$9.07

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92153

BOLT,FLANGED-SMALL,6X55

92153-1586

$2.24

92153A

BOLT,FLANGED,5X18

92153-1588

$1.34

92153B

BOLT,UPSET-WP,6X16

92153-1939

$1.78

92154

BOLT,DRAIN

92154-0184

$7.95

92171

CLAMP

92171-0179

$8.20

92171A

CLAMP

92171-0180

$13.37

92171B

CLAMP

92171-0534

$6.38

92171C

CLAMP

92171-0718

$2.15

92171D

CLAMP

92171-0719

$2.15

92171E

CLAMP

92171-0720

$1.30

92171F

CLAMP

92171-1184

$2.46

92173

CLAMP

92173-0114

$5.59

92200

WASHER,DRAIN

92200-0498

$3.29
