Description

Price

11065

CAP

11065-0180

$7.69

14091A

COVER,DRIVE SHAFT

14091-1627

$37.59

33001

ARM-COMP-SWING,P.SILVER

33001-0145-458

$1,046.82

33032

SHAFT-SWING ARM,PIVOT

33032-0023

$104.45

33032A

SHAFT-SWING ARM,REAR GEAR CASE

33032-0024

$74.54

33032B

SHAFT-SWING ARM,AXLE BRACKET

33032-0025

$74.54

39173

BRACKET-AXLE,RH,P.SILVER

39173-0070-458

$208.52

42036

SLEEVE,SWING ARM PIVOT,L=178

42036-0042

$74.58

42036A

SLEEVE,20.15X28X36

42036-0044

$31.86

42036B

SLEEVE,10.1X18X32

42036-1344

$11.28

43007B

ROD-TORQUE,LH,P.SILVER

43007-0012-458

$213.66

43007C

ROD-TORQUE,RH,P.SILVER

43007-0013-458

$213.66

49006

BOOT,REAR GEAR CASE

49006-0067

$55.25

92015

NUT,LOCK,20MM

92015-1770

$28.25

92033

RING-SNAP,42MM

92033-1041

$6.16

92045

BEARING-BALL,6004UL11

92045-0017

$14.39

92045A

BEARING-BALL,#5204

92045-0064

$46.45

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$21.54

92046A

BEARING-NEEDLE,SFYZM182417

92046-1272

$16.42

92049

SEAL-OIL,MHSA25X42X6

92049-1314

$13.75

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

$9.28

92049B

SEAL-OIL,MHA 35X47X5

92049-1381

$13.08

92049C

SEAL-OIL

92049-1386

$9.63

92049D

SEAL-OIL,KCR MF018N1

92049-1493

$9.19

92066

PLUG

92066-0084

$7.69

92066A

PLUG

92066-0090

$7.69

92066B

PLUG,17MM

92066-1320

$4.82

92093

SEAL,DRIVE SHAFT COVER

92093-0122

$37.51

92152

COLLAR,SWING ARM,RH,L=47

92152-0362

$46.79

92152A

COLLAR,SWING ARM,LH,L=12.5

92152-0363

Unavailable

92152B

COLLAR

92152-0473

$27.22

410

WASHER-PLAIN-SMALL,20MM

410AA2000

$2.61

481

CIRCLIP-TYPE-C,47MM

481J4700

$4.22

92153

BOLT,UPSET-WP,6X16

92153-1587

$1.78

92153B

BOLT,SOCKET,10X63

92153-1943

$10.30

92153C

BOLT,SOCKET,10X67

92153-1944

$10.30

92200

WASHER,11X18X1

92200-0324

$7.75

92210

NUT,30MM

92210-0134

$28.51

92210A

NUT,FLANGED,20MM

92210-0320

$11.93

92210B

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

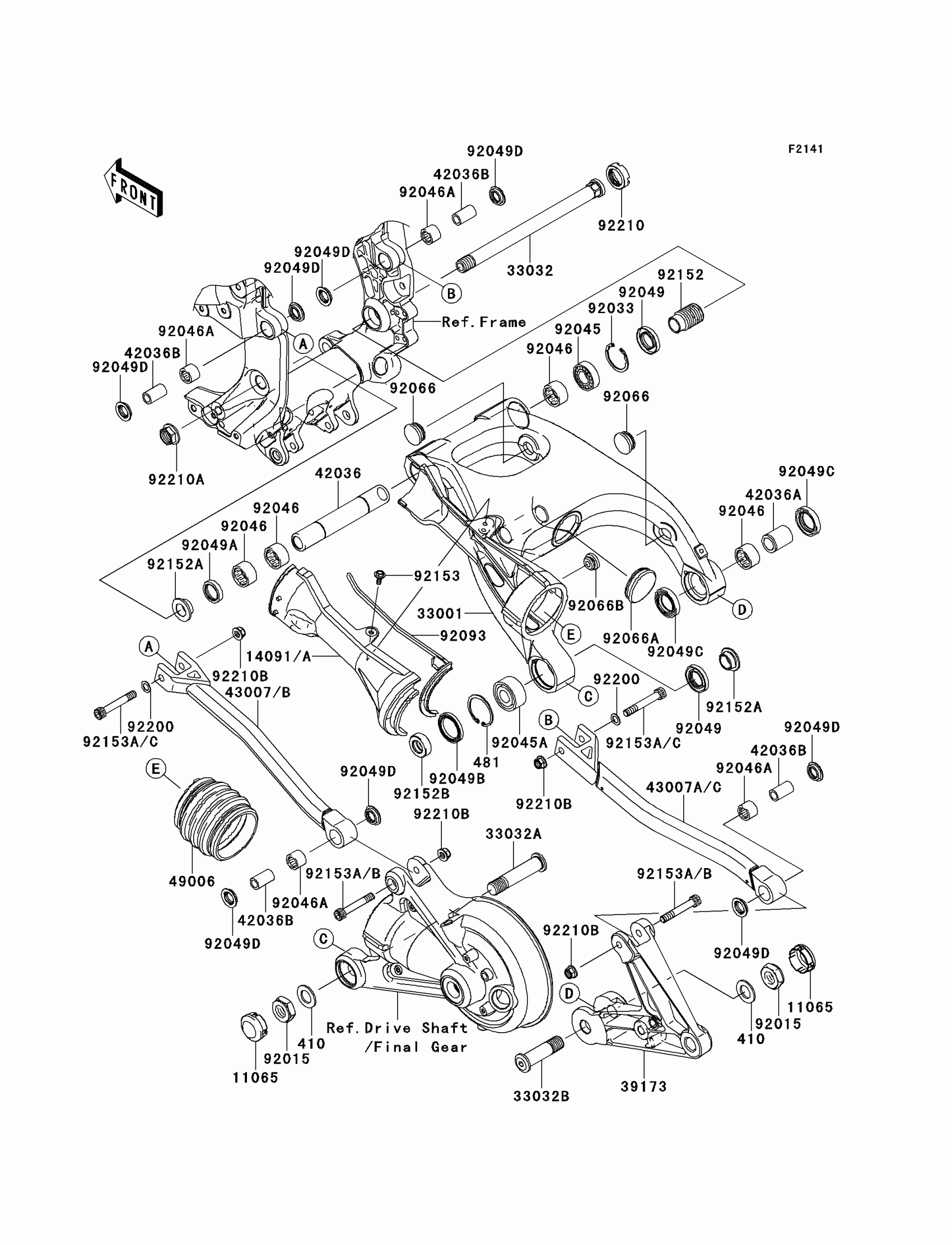

Kawasaki Concours™ 14 Swingarm Diagram

CAP

COVER,DRIVE SHAFT

ARM-COMP-SWING,P.SILVER

SHAFT-SWING ARM,PIVOT

SHAFT-SWING ARM,REAR GEAR CASE

SHAFT-SWING ARM,AXLE BRACKET

BRACKET-AXLE,RH,P.SILVER

SLEEVE,SWING ARM PIVOT,L=178

SLEEVE,20.15X28X36

SLEEVE,10.1X18X32

ROD-TORQUE,LH,P.SILVER

ROD-TORQUE,RH,P.SILVER

BOOT,REAR GEAR CASE

NUT,LOCK,20MM

RING-SNAP,42MM

BEARING-BALL,6004UL11

BEARING-BALL,#5204

BEARING-NEEDLE,7E-HVS 28X34X17

BEARING-NEEDLE,SFYZM182417

SEAL-OIL,MHSA25X42X6

SEAL-OIL,MHSA25X34X7

SEAL-OIL,MHA 35X47X5

SEAL-OIL

SEAL-OIL,KCR MF018N1

PLUG

PLUG

PLUG,17MM

SEAL,DRIVE SHAFT COVER

COLLAR,SWING ARM,RH,L=47

COLLAR,SWING ARM,LH,L=12.5

COLLAR

WASHER-PLAIN-SMALL,20MM

CIRCLIP-TYPE-C,47MM

BOLT,UPSET-WP,6X16

BOLT,SOCKET,10X63

BOLT,SOCKET,10X67

WASHER,11X18X1

NUT,30MM

NUT,FLANGED,20MM

NUT,LOCK,FLANGED,10MM
