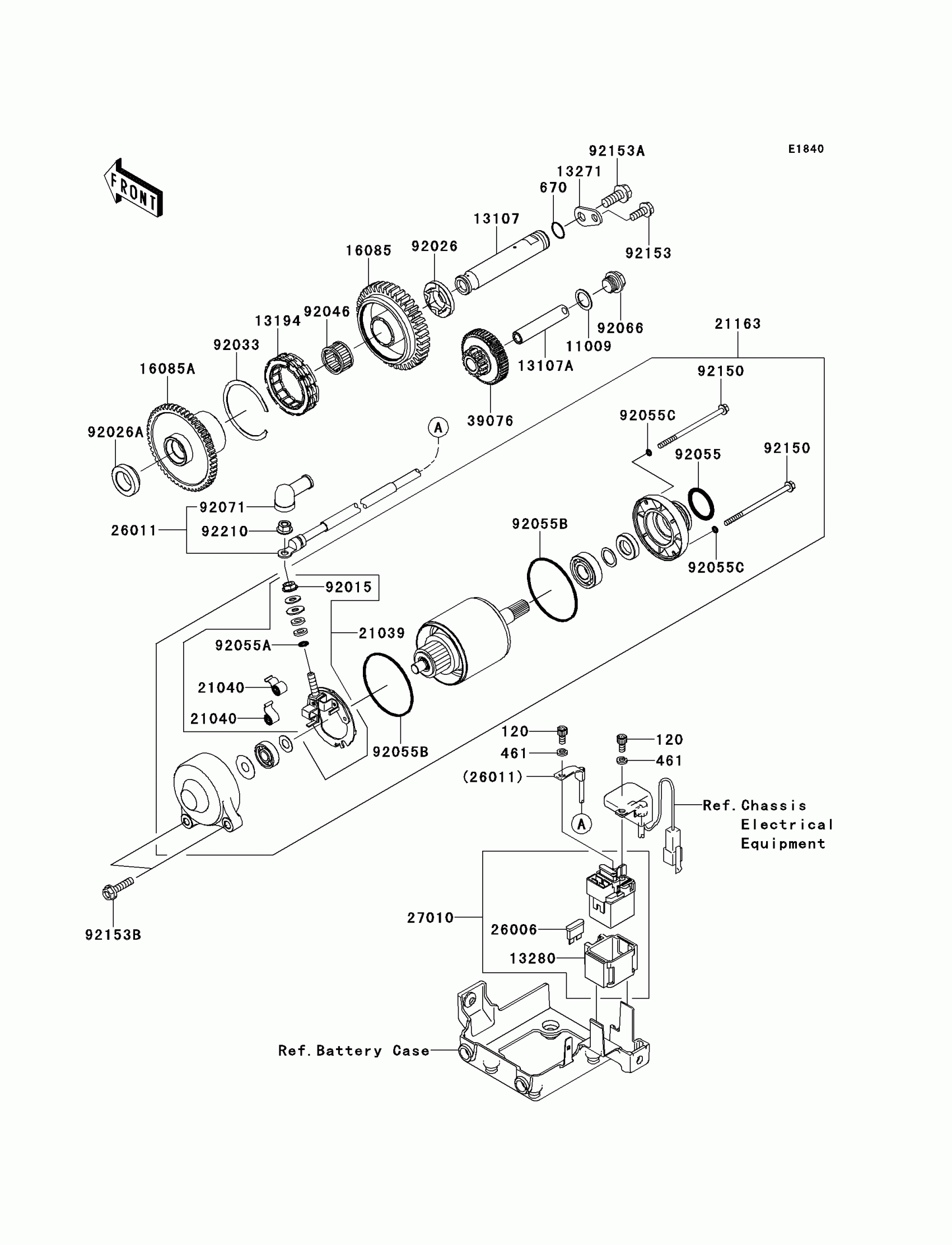

Kawasaki Concours™ 14 Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,5X10

120CA0510

$1.57

461

WASHER-SPRING,5MM

461DA0500

$0.71

670

O RING,14MM

670D2014

$5.52

11009

GASKET,14.3X20X1

11009-1238

$3.89

13107

SHAFT

13107-0110

$68.37

13107A

SHAFT

13107-0136

$26.49

13194

CLUTCH-ONEWAY

13194-3704

$108.41

13271

PLATE

13271-0845

$5.65

13280

HOLDER

13280-1263

$13.72

16085

GEAR

16085-0080

$126.89

16085A

GEAR

16085-0113

$147.40

21039

BRUSH

21039-1066

$32.07

21040

SPRING-BRUSH

21040-1057

$8.42

21163

STARTER-ELECTRIC

21163-0031

$603.14

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26011

WIRE-LEAD

26011-0122

$46.79

27010

SWITCH,MAGNETIC

27010-1446

$136.50

39076

LIMITER

39076-0013

Unavailable

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92026

SPACER,LH

92026-0080

$14.67

92026A

SPACER,RH

92026-0081

$31.86

92033

RING-SNAP

92033-3731

$6.16

92046

BEARING-NEEDLE

92046-1288

$16.13

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O

92055-1550

$9.91

92055C

RING-O

92055-1551

$4.69

92066

PLUG,14X8

92066-1273

$8.03

92071

GROMMET

92071-0024

$10.21

92150

BOLT,FLANGED,4X80

92150-1969

$7.33

92153

BOLT,FLANGED,6X16

92153-1551

$2.15

92153A

BOLT,FLANGED,8X20

92153-1554

$2.73

92153B

BOLT,FLANGED,6X25

92153-1592

$2.15

92210

NUT,6X1.0

92210-0241

Unavailable
