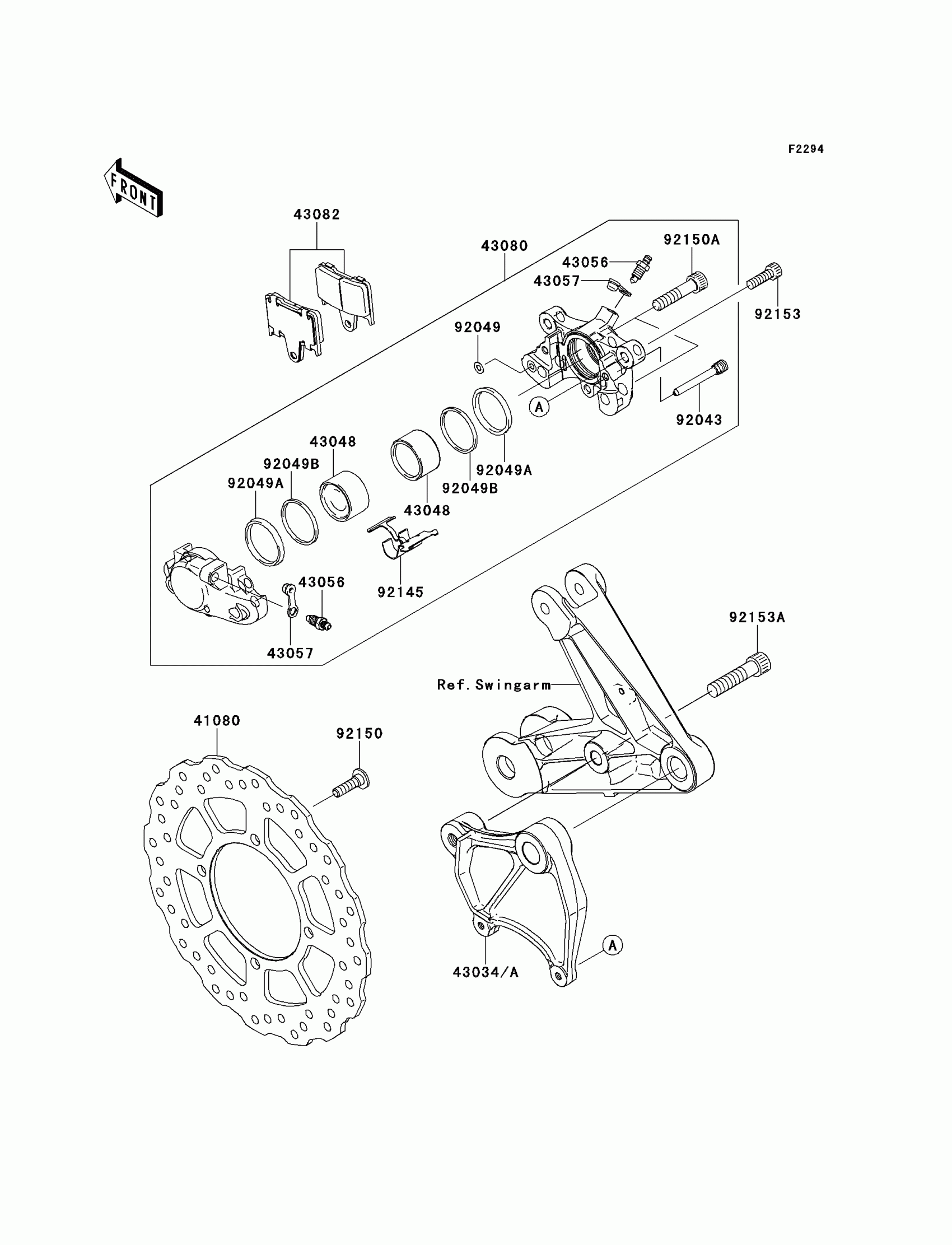

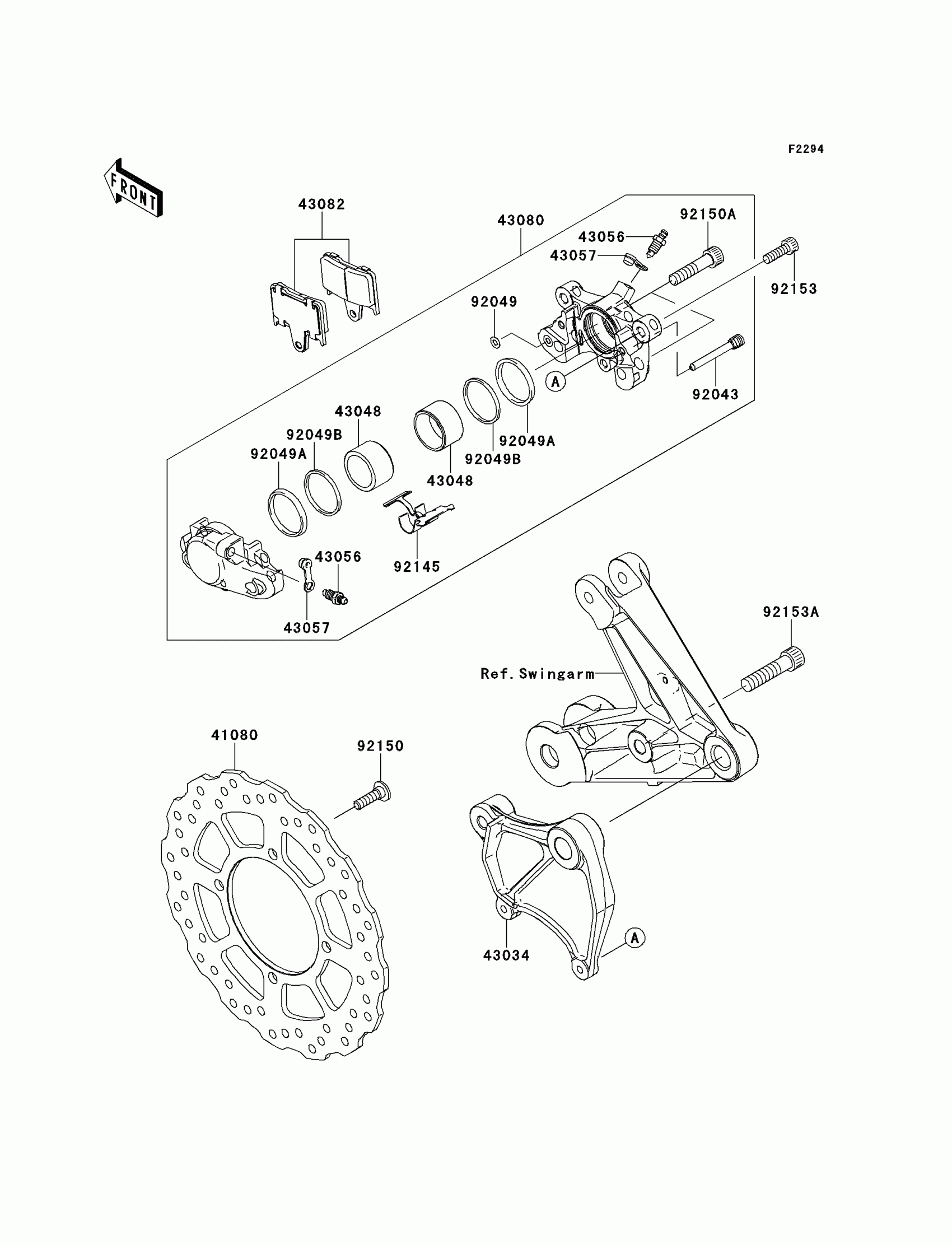

Kawasaki Concours™ 14 Rear Brake Diagram

Description

Price

41080

DISC,RR

41080-0106

$368.84

43034

HOLDER-BRAKE

43034-0060

$122.94

43048

PISTON-CALIPER

43048-0017

$38.36

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0088-DJ

$298.03

43082

PAD-ASSY-BRAKE

43082-0055

$90.89

92043

PIN,PAD

92043-0106

$7.75

92049

SEAL-OIL

92049-1448

$3.92

92049A

SEAL-OIL

92049-1449

$5.00

92049B

SEAL-OIL

92049-1450

$4.31

92145

SPRING,PAD

92145-0379

$5.60

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92150A

BOLT

92150-1972

$4.87

92153

BOLT,SOCKET,8X25

92153-1625

$4.65

92153A

BOLT,SOCKET,12X50

92153-1781

$10.30
