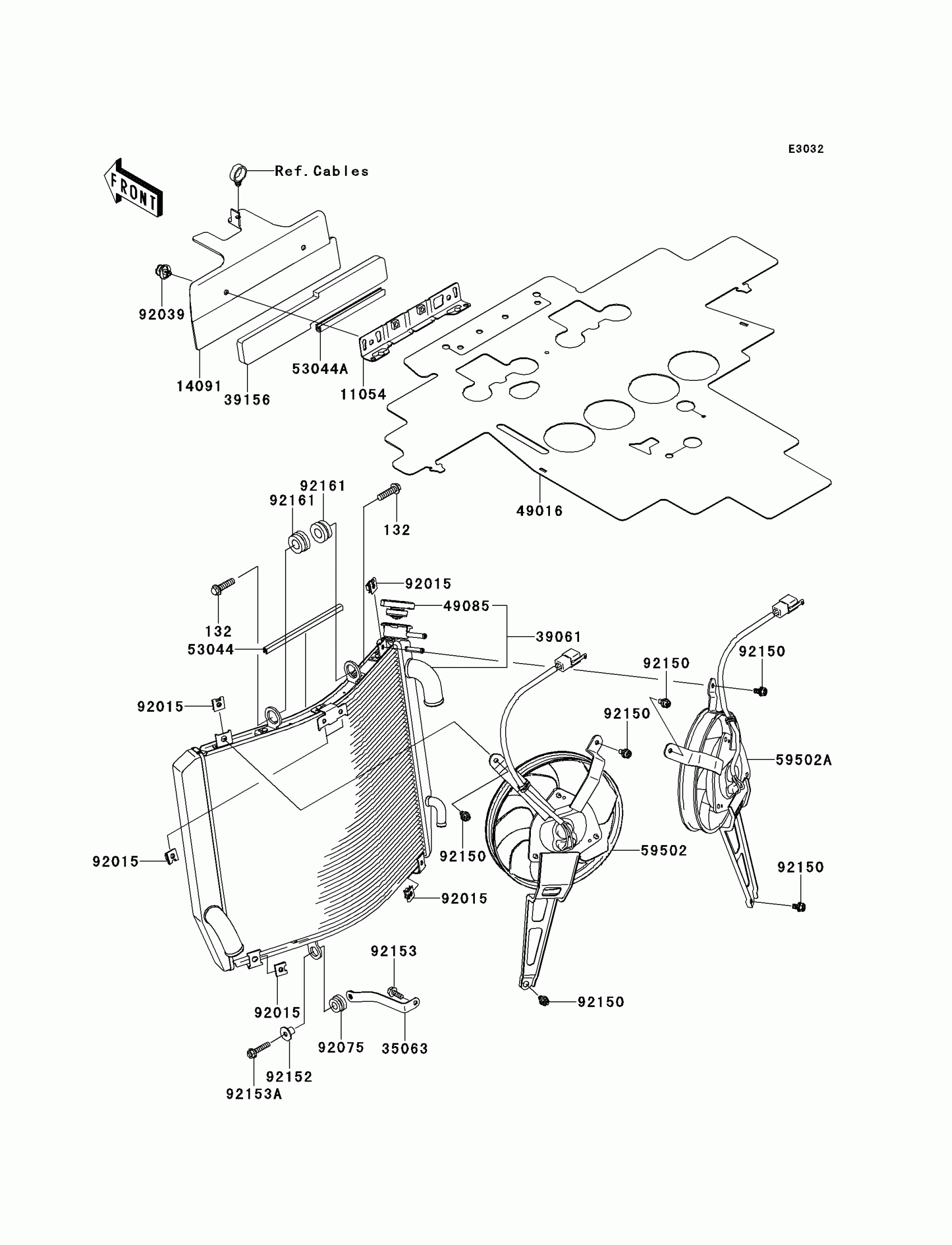

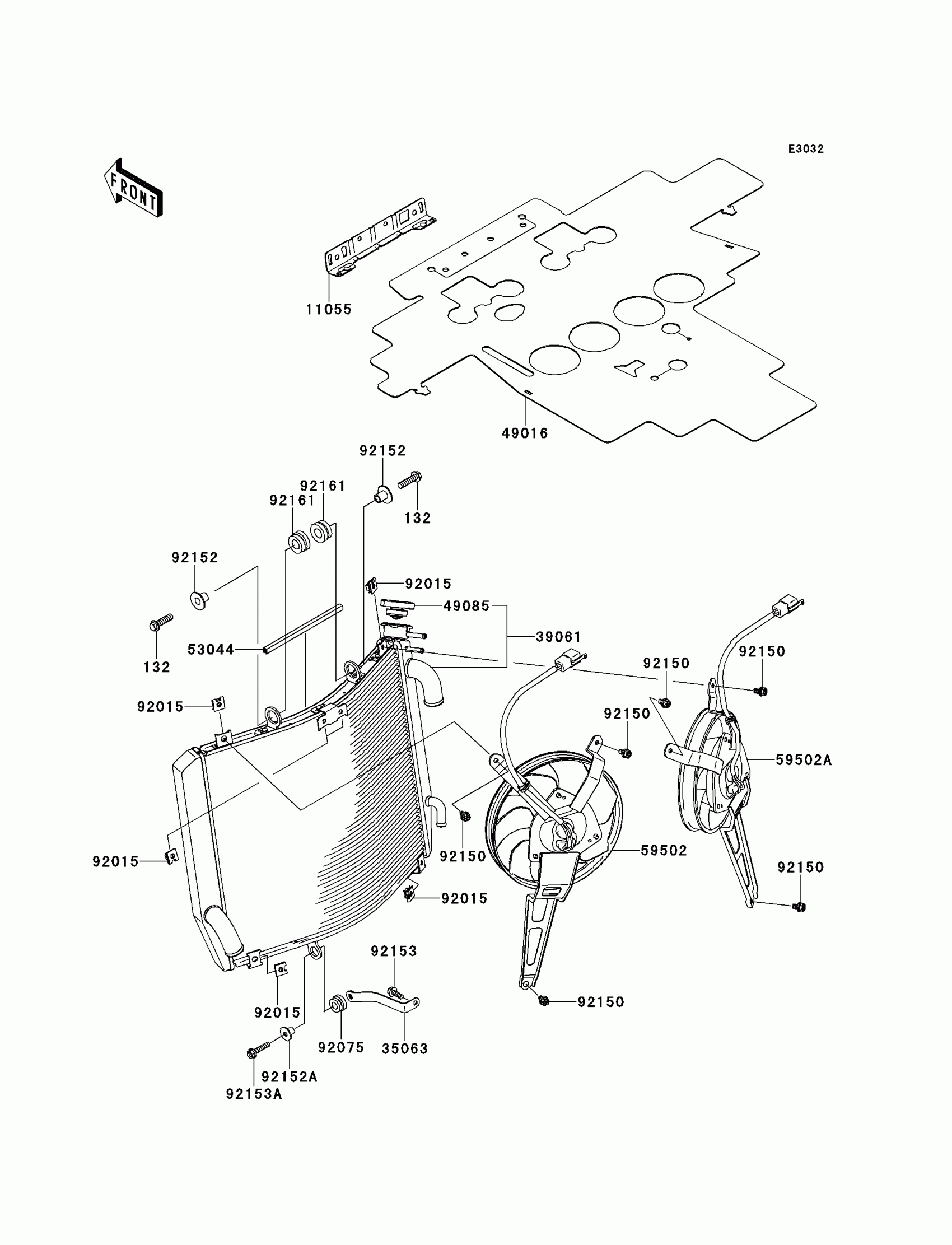

Kawasaki Concours™ 14 Radiator Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X30

132BC0830

$3.90

11055

BRACKET

11055-1484

$27.35

35063

STAY

35063-0661

$11.93

39061

RADIATOR-ASSY

39061-0107

$1,119.64

49016

COVER-SEAL,HOT WIND

49016-0061

$109.57

49085

CAP-ASSY-PRESSURE

49085-1066

$37.42

53044

TRIM

53044-0016

$11.93

59502

FAN-ASSY

59502-0030

Unavailable

59502A

FAN-ASSY,RH

59502-0031

Unavailable

92015

NUT

92015-1487

$4.80

92075

DAMPER,RUBBER

92075-1123

$5.00

92150

BOLT,6X12

92150-1186

$3.37

92152

COLLAR

92152-0439

$3.90

92152A

COLLAR

92152-0440

$5.65

92153

BOLT-FLANGED,6X16

92153-1584

Unavailable

92153A

BOLT,FLANGED,6X30

92153-1590

$2.32

92161

DAMPER

92161-0304

$2.97
