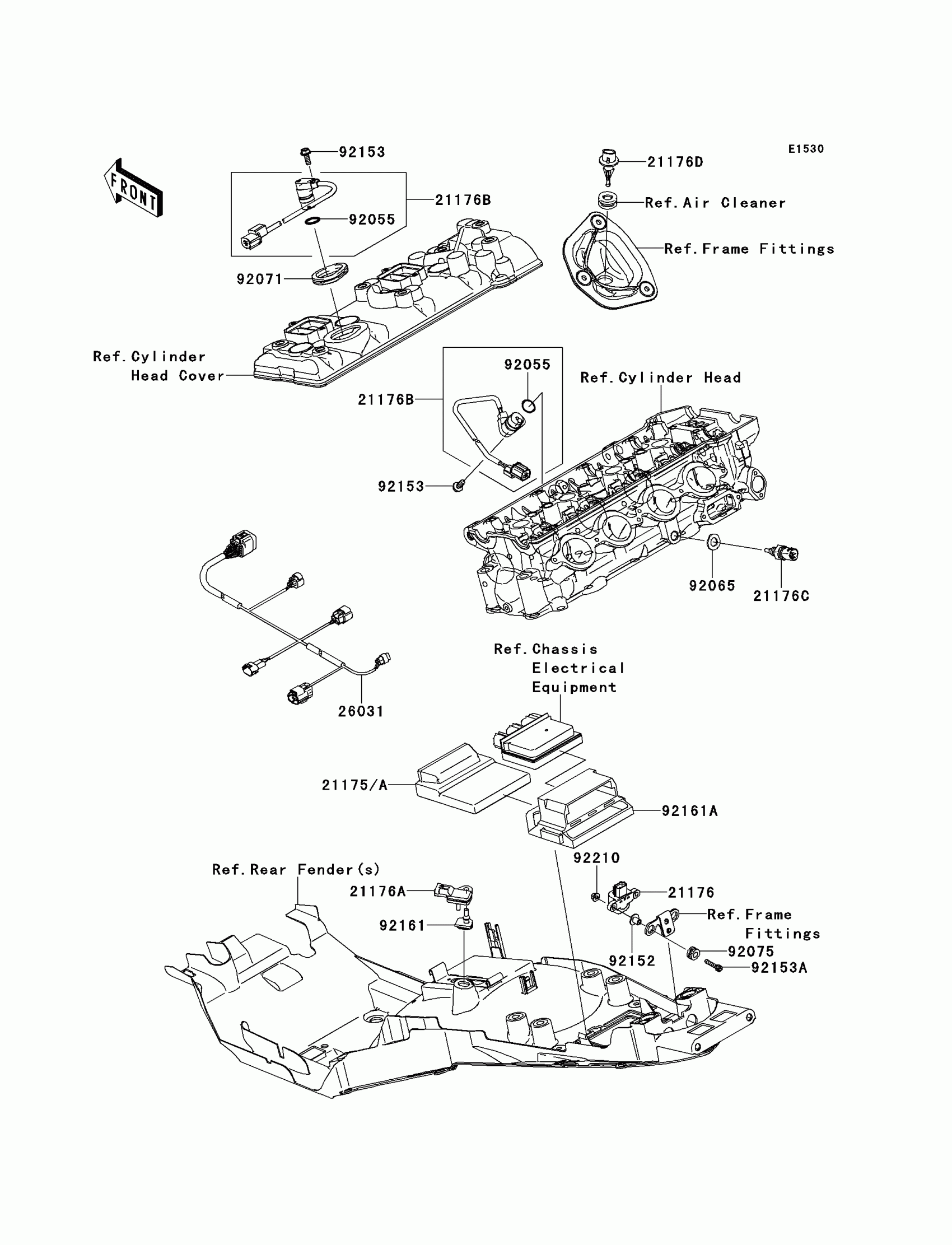

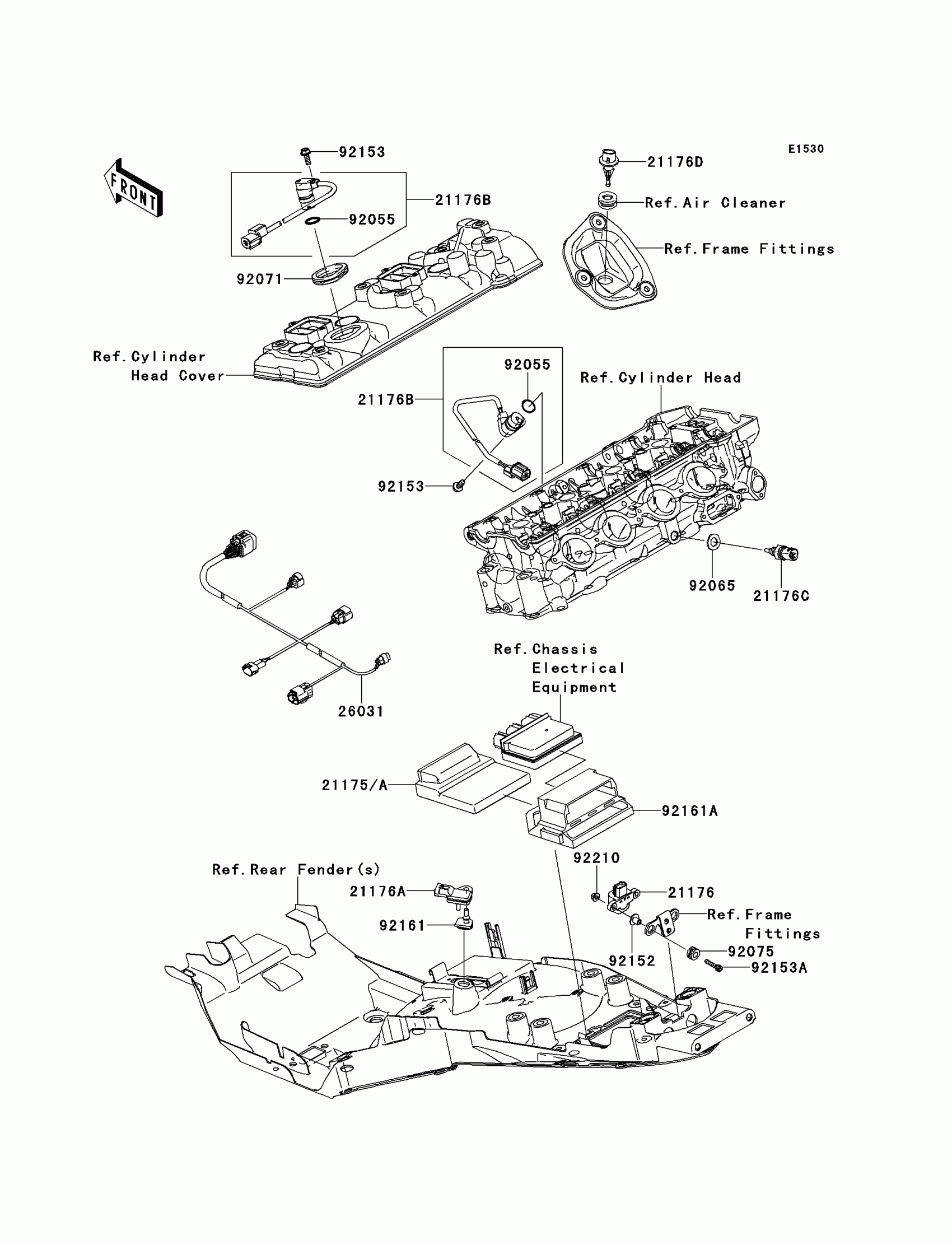

Kawasaki Concours™ 14 Fuel Injection Diagram

Description

Price

21176

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176A

SENSOR,PRESSURE

21176-0058

$141.24

21176B

SENSOR,CAM

21176-0064

$127.99

21176C

SENSOR,WATER TEMP

21176-1120

$70.27

21176D

SENSOR,AIR TEMP

21176-2106

$25.15

26031

HARNESS

26031-0799

$141.04

92055

RING-O

92055-1639

$3.09

92065

GASKET,12X22X2

92065-097

$0.74

92071

GROMMET

92071-0028

$10.21

92075

DAMPER

92075-1912

$5.77

92152

COLLAR

92152-0329

$7.75

92153

BOLT-FLANGED,6X16

92153-1584

Unavailable

92153A

BOLT,SOCKET,5X22

92153-1597

$2.15

92161

DAMPER

92161-0041

$5.00

92161A

DAMPER

92161-0092

$19.83

92210

NUT,FLANGED,5MM

92210-0007

$2.70

21175

CONTROL UNIT-ELECTRONIC

21175-0257

$1,296.98

21175A

CONTROL UNIT-ELECTRONIC

21175-0258

$1,237.37
