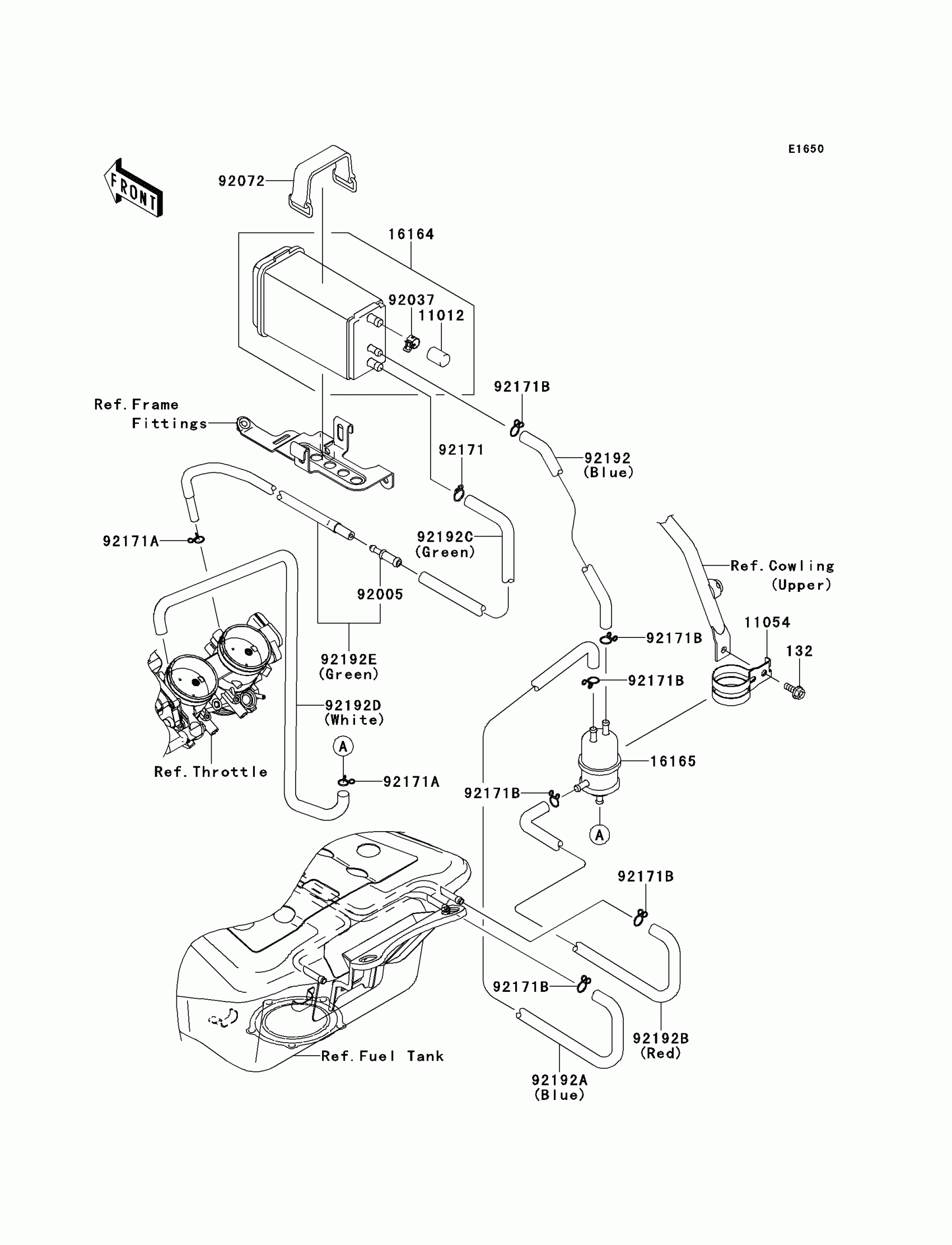

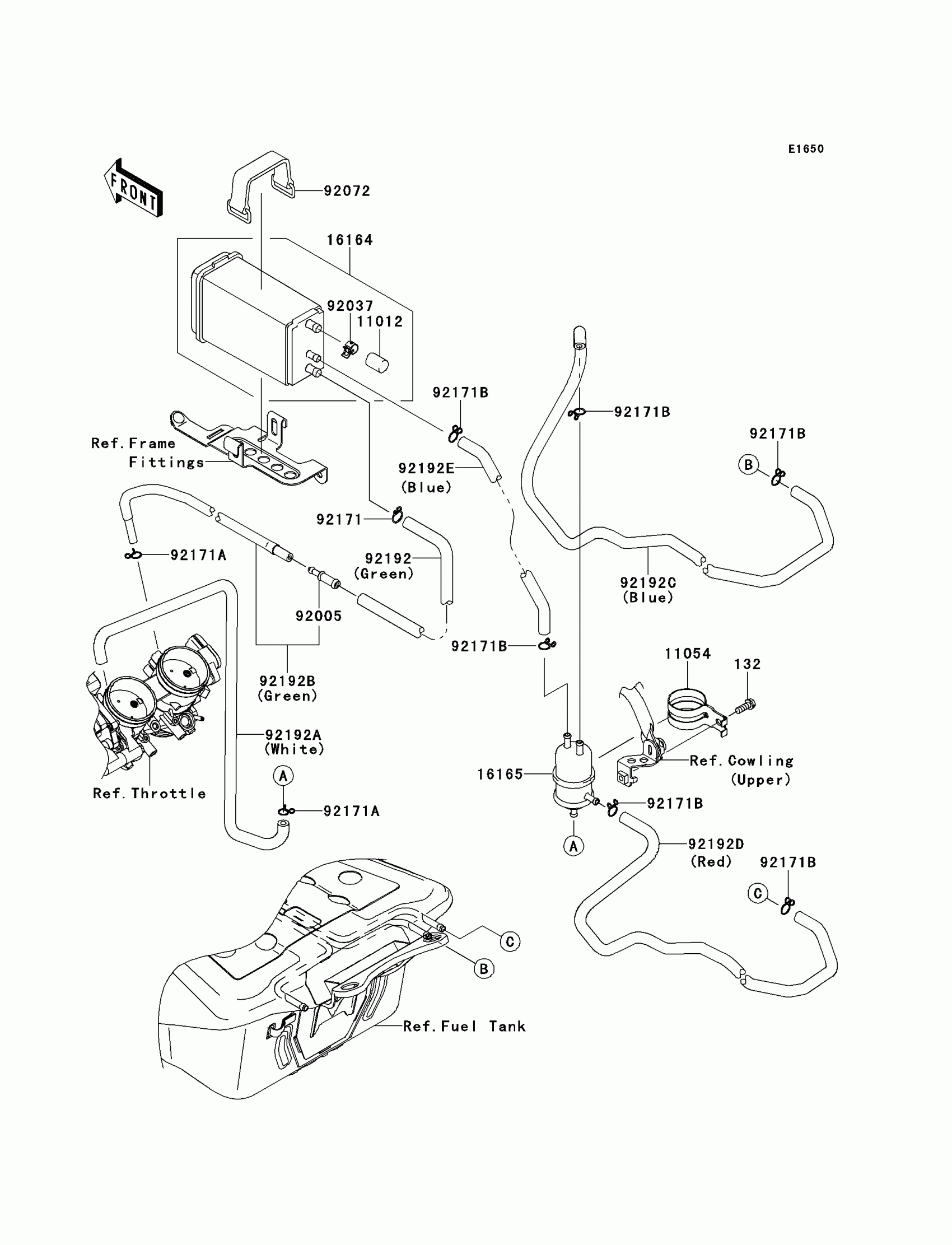

Kawasaki Concours™ 14 Fuel Evaporative System(CA) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

11012

CAP,CANISTER

11012-1388

$8.51

11054

BRACKET,SEPARATOR

11054-1193

$14.56

16164

CANISTER

16164-1054

$130.07

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING

92005-0032

$5.60

92037

CLAMP,CANISTER

92037-1512

$6.57

92072

BAND

92072-0050

$14.90

92171

CLAMP

92171-0574

$2.97

92171A

CLAMP

92171-0576

$5.00

92171B

CLAMP

92171-0718

$2.15

92192

TUBE,CANISTER-SEPARATOR,BLUE

92192-0414

$77.89

92192A

TUBE,SEPARATOR-TANK,BLUE

92192-0415

$133.60

92192B

TUBE,TANK-SEPARATOR SIDE,RED

92192-0416

$131.05

92192C

TUBE,CANISTER-FITTING,GREEN

92192-0417

$30.46

92192D

TUBE,SEPARATOR-THROBO #3,WHITE

92192-0418

$23.95

92192E

TUBE,THROBO #4-GRN TUBE

92192-0420

$54.67
