Description

Price

11021

CASE-ASSY,STORAGE

11021-0020

$301.51

11055

BRACKET

11055-1711

$8.08

13280

HOLDER

13280-0343

Unavailable

13280A

HOLDER

13280-0344

$3.16

14092

COVER

14092-0022

$9.33

16146

COVER-ASSY

16146-0115

$34.82

16171

LINK

16171-0017

$3.16

21188

SOLENOID

21188-0009

$210.04

32085

STOPPER

32085-0193

$3.52

92039

RIVET

92039-0023

$2.97

92043

PIN

92043-0201

$3.52

92077

KNOB

92077-0028

$6.89

92093

SEAL

92093-0166

$6.89

92093A

SEAL

92093-0167

$1.27

92145

SPRING

92145-0727

$3.48

92145A

SPRING

92145-0728

$3.48

92145B

SPRING

92145-0729

$2.02

92145C

SPRING

92145-0730

$2.64

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92161

DAMPER

92161-0470

$11.71

92172

SCREW,5X12,GREEN

92172-0008

$1.78

92172A

SCREW,TAPPING,4X10

92172-0172

$4.15

92172B

SCREW,TAPPING,2.5X14

92172-0440

$1.28

92200

WASHER,3.3X8X0.5

92200-0514

$0.88

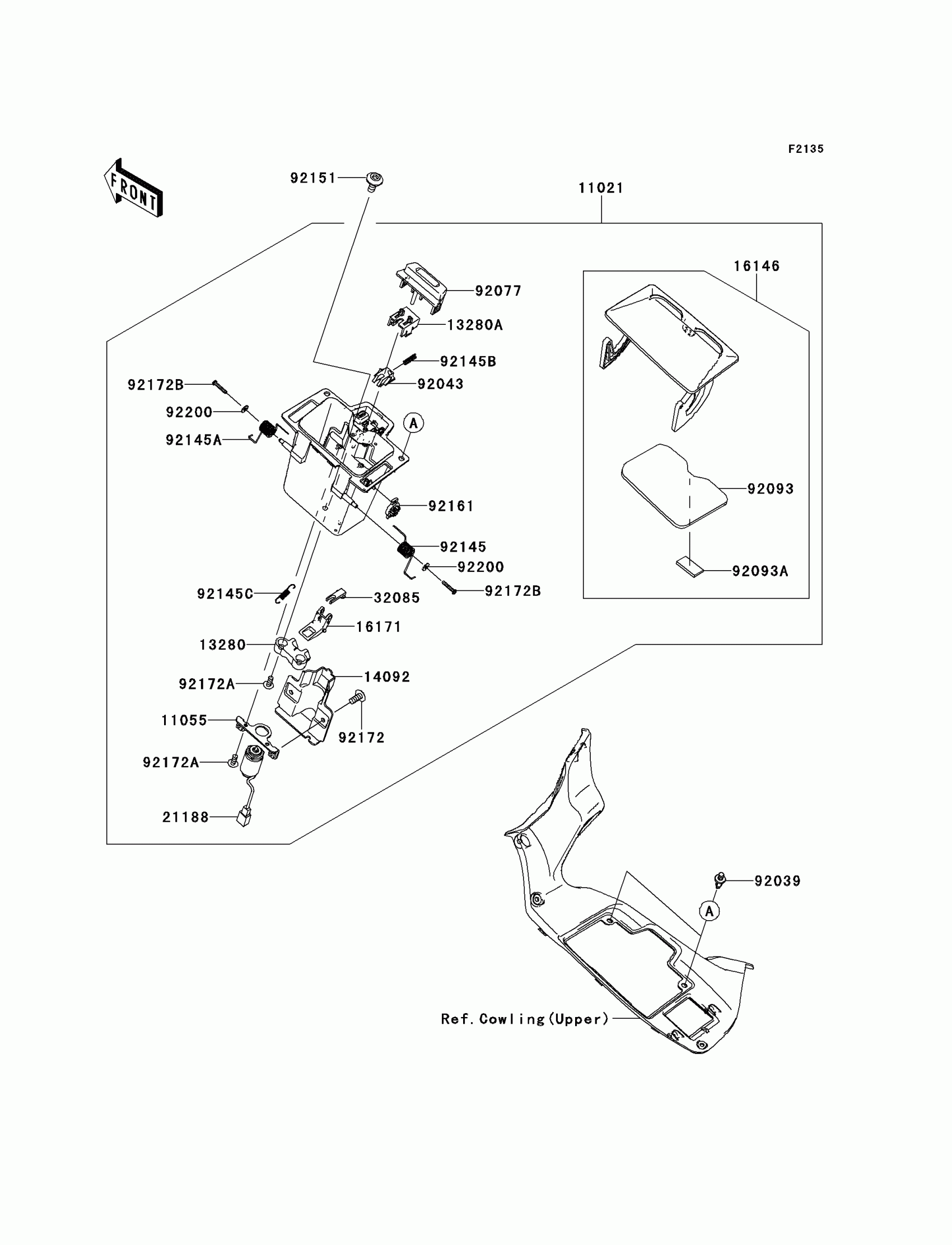

Kawasaki Concours™ 14 Front Box Diagram

CASE-ASSY,STORAGE

BRACKET

HOLDER

HOLDER

COVER

COVER-ASSY

LINK

SOLENOID

STOPPER

RIVET

PIN

KNOB

SEAL

SEAL

SPRING

SPRING

SPRING

SPRING

BOLT,SOCKET,6X14

DAMPER

SCREW,5X12,GREEN

SCREW,TAPPING,4X10

SCREW,TAPPING,2.5X14

WASHER,3.3X8X0.5
