Front Bevel Gear

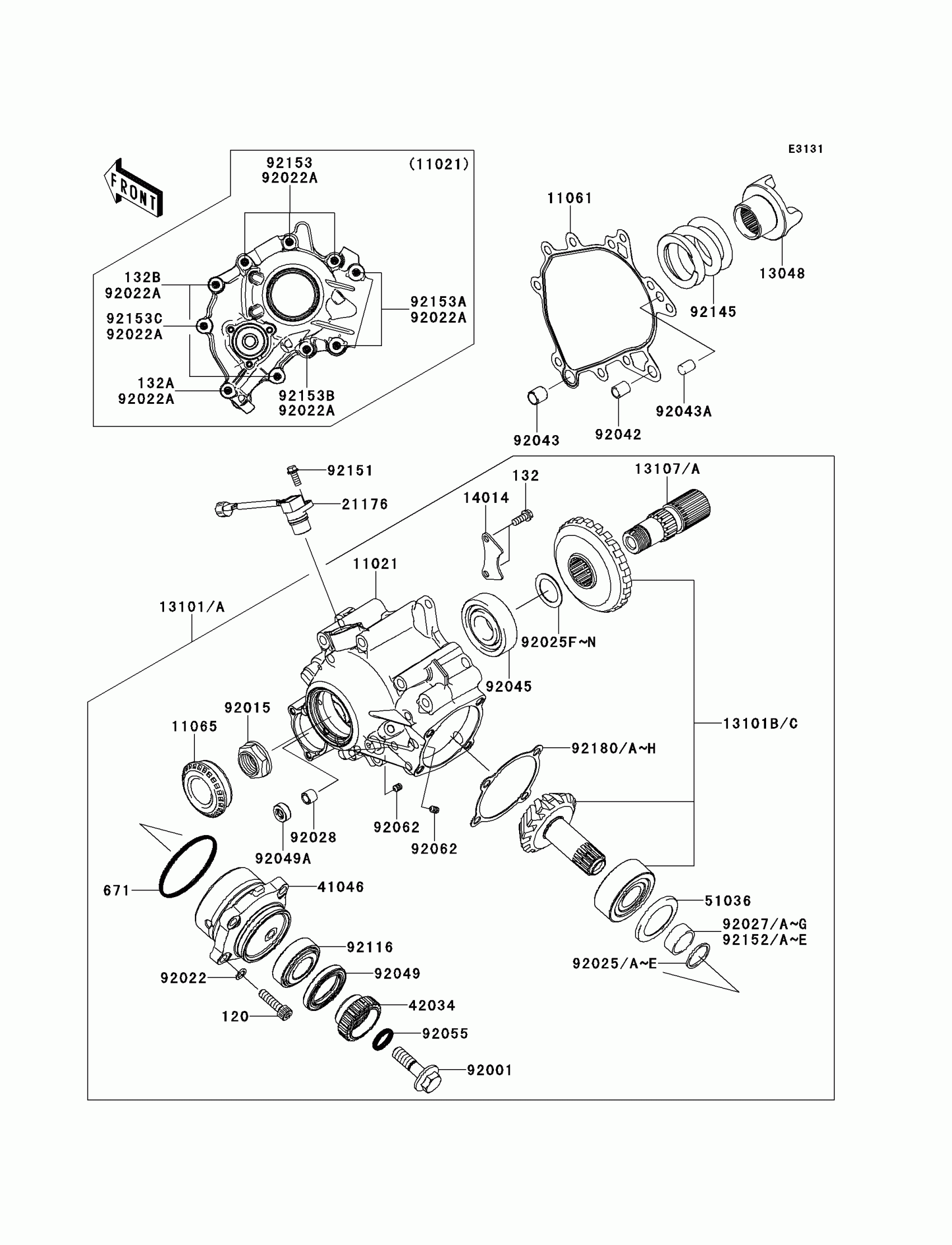

Kawasaki Concours™ 14 Front Bevel Gear Diagram
#
11021
CASE-ASSY,FR GEAR,P.SILVER
11021-0014-458
$758.54
11061
GASKET,FR GEAR CASE
11061-0310
$28.84
11065
CAP
11065-0165
$26.91
13048
CAM-DAMPER
13048-0004
$74.54
13101
GEAR-ASSY,P.SILVER
13101-0119-458
$1,675.37
13101A
GEAR-ASSY
13101-5094
$580.81
13107
SHAFT,DRIVE
13107-0203
$151.03
14014
PLATE-POSITION
14014-0031
$7.37
21176
SENSOR,SPEED
21176-0037
$160.59
41046
HOUSING-BEARING
41046-0024
$139.61
42034
COUPLING,FR,DRIVEN
42034-0058
$109.45
51036
CUP
51036-1002
$6.22
92001
BOLT,FLANGED,12X42
92001-1169
$22.29
92015
NUT,24MM
92015-1554
$24.41
92022
WASHER,8.5X13X1
92022-1028
$3.92
92022A
WASHER,8.5X16X1.2
92022-1582
$0.96
92025
SHIM,25.2X29.8X1.70
92025-1072
Unavailable
92025A
SHIM,25.2X29.8X1.72
92025-1073
Unavailable
92025B
SHIM,25.2X29.8X1.74
92025-1074
Unavailable
92025C
SHIM,25.2X29.8X1.76
92025-1075
Unavailable
92025D
SHIM,25.2X29.8X1.78
92025-1076
Unavailable
92025E
SHIM,25.2X29.8X1.80
92025-1077
Unavailable
92025F
SHIM,25.3X36X0.15
92025-1688
Unavailable
92025G
SHIM,25.3X36X0.50
92025-1689
Unavailable
92025H
SHIM,25.3X36X0.60
92025-1690
Unavailable
92025I
SHIM,25.3X36X0.70
92025-1691
Unavailable
92025J
SHIM,25.3X36X0.80
92025-1692
Unavailable
92025K
SHIM,25.3X36X0.90
92025-1693
Unavailable
92025L
SHIM,25.3X36X1.00
92025-1694
Unavailable
92025M
SHIM,25.3X36X1.10
92025-1695
Unavailable
92025N
SHIM,25.3X36X1.20
92025-1696
Unavailable
92027
COLLAR,25.2X29.8X10.4
92027-1403
Unavailable
92027A
COLLAR,25.2X29.8X10.5
92027-1404
Unavailable
92027B
COLLAR,25.2X29.8X10.6
92027-1405
Unavailable
92027C
COLLAR,25.2X29.8X10.7
92027-1406
Unavailable
92027D
COLLAR,25.2X29.8X10.8
92027-1407
Unavailable
92027E
COLLAR,25.2X29.8X10.9
92027-1408
Unavailable
92027F
COLLAR,25.2X29.8X11.0
92027-1409
Unavailable
92027G
COLLAR,25.2X29.8X11.1
92027-1410
Unavailable
92028
BUSHING,8X12X10
92028-1750
$7.27
120
BOLT-SOCKET,8X30
120CB0830
$4.69
132
BOLT-FLANGED-SMALL,6X16
132BA0616
$1.51
132A
BOLT-FLANGED-SMALL,8X50
132BB0850
$5.25
132B
BOLT-FLANGED-SMALL,8X35
132BD0835
$4.45
671
O RING,69.4X3.1
671D2570
$5.65
92042
PIN,DOWEL,12X14
92042-031
$6.57
92043
PIN,11.5X14X14
92043-1279
$5.00
92043A
PIN,10X14
92043-1506
$3.32
92045
BEARING-BALL,6305-13
92045-0063
$41.98
92049
SEAL-OIL,TC35527
92049-1038
$17.95
92049A
SEAL-OIL
92049-1566
$7.65
92055
RING-O,18.7X3.5
92055-0130
$2.61
92062
NOZZLE,6X8,GREEN
92062-1078
$4.69
92116
BEARING-ROLLER,HI-CAP30205
92116-1062
$36.32
92145
SPRING,CAM DAMPER
92145-0430
$60.24
92151
BOLT,FLANGED,6X14
92151-1755
$2.34
92152
COLLAR,25.2X29.8X11.2
92152-0480
$20.37
92152A
COLLAR,25.2X29.8X11.3
92152-0481
Unavailable
92152B
COLLAR,25.2X29.8X11.4
92152-0482
Unavailable
92152C
COLLAR,25.2X29.8X11.5
92152-0483
Unavailable
92152D
COLLAR,25.2X29.8X11.6
92152-0484
Unavailable
92152E
COLLAR,25.2X29.8X11.7
92152-0485
Unavailable
92153
BOLT,8X95
92153-0434
$3.73
92153A
BOLT,8X92
92153-1874
$10.30
92153B
BOLT,FLANGED,8X95
92153-1953
$4.20
92153C
BOLT,FLANGED-SMALL,8X35
92153-1954
$2.97
92180
SHIM,T=0.1
92180-0227
Unavailable
92180A
SHIM,T=0.15
92180-0228
Unavailable
92180B
SHIM,T=0.5
92180-0229
Unavailable
92180C
SHIM,T=0.6
92180-0230
Unavailable
92180D
SHIM,T=0.7
92180-0231
Unavailable
92180E
SHIM,T=0.8
92180-0232
Unavailable
92180F
SHIM,T=0.9
92180-0233
Unavailable
92180G
SHIM,T=1.0
92180-0234
$15.20
92180H
SHIM,T=1.2
92180-0235
Unavailable
