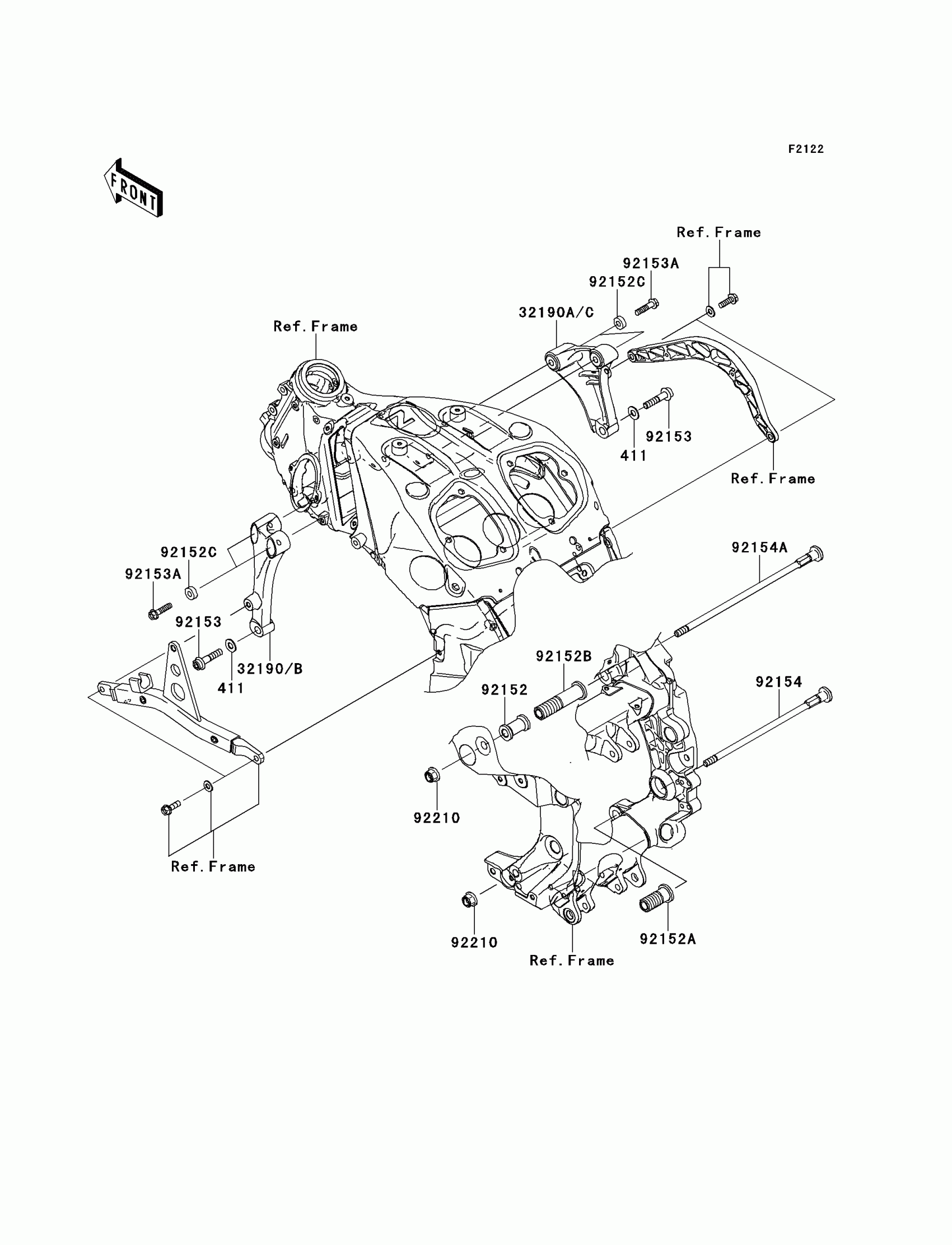

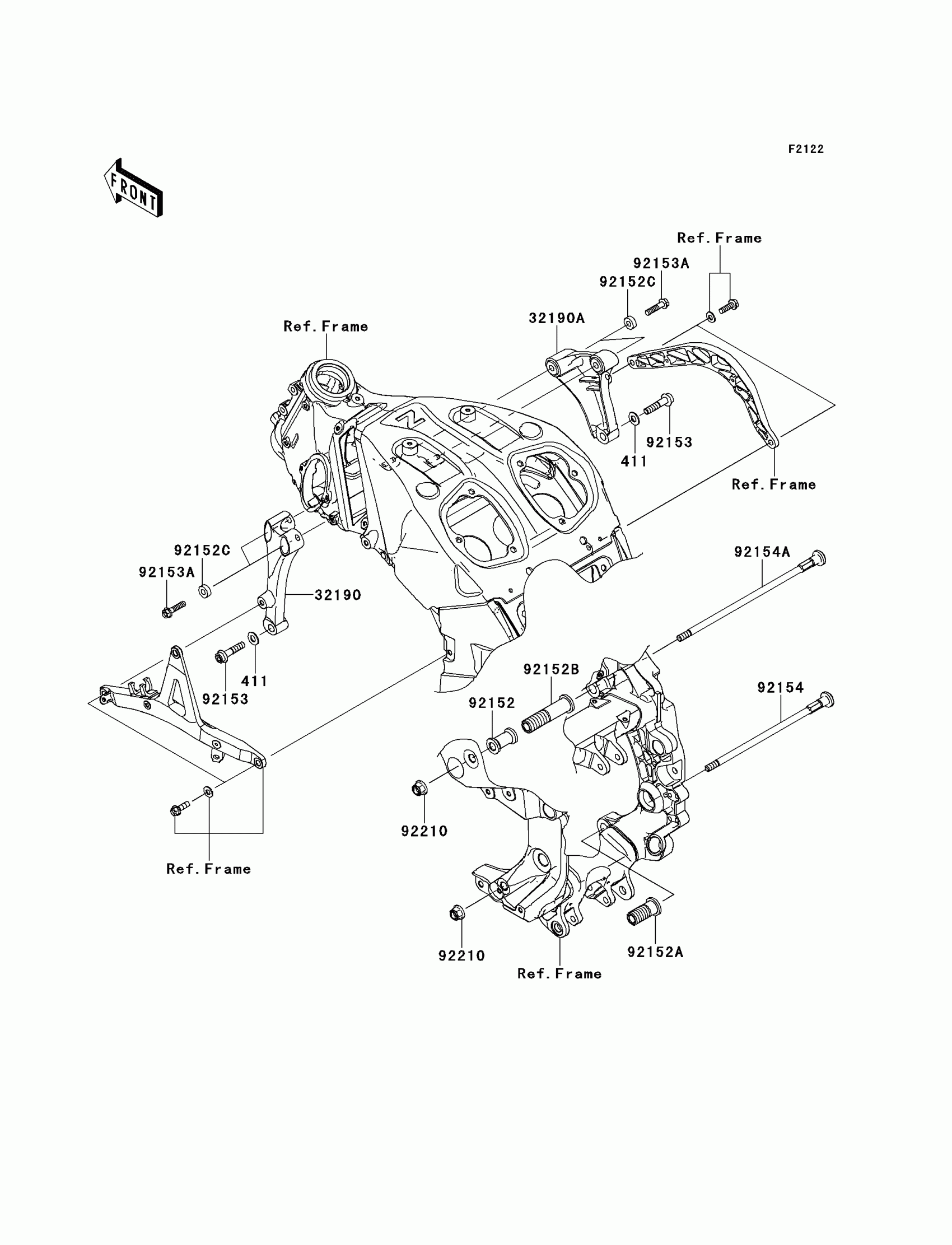

Kawasaki Concours™ 14 Engine Mount Diagram

Description

Price

411

WASHER-PLAIN,10MM

411AA1000

$0.81

32190B

BRACKET-ENGINE,FR,LH

32190-0424

$68.10

32190C

BRACKET-ENGINE,FR,RH

32190-0425

$68.10

92152

COLLAR,L=43.2

92152-0368

$20.63

92152A

COLLAR,ADJUST,RR,LWR

92152-0370

$47.69

92152B

COLLAR,ADJUST,RR,UPP

92152-0371

$67.96

92152C

COLLAR,8.8X20X7

92152-0502

$3.49

92153

BOLT,SOCKET,10X45

92153-1769

$6.18

92153A

BOLT,FLANGED,8X35

92153-1770

$3.64

92154

BOLT,SOCKET,12X268

92154-0089

$32.12

92154A

BOLT,SOCKET,12X312

92154-0090

$32.12

92210

NUT,LOCK,FLANGED,12MM

92210-0287

$4.04
