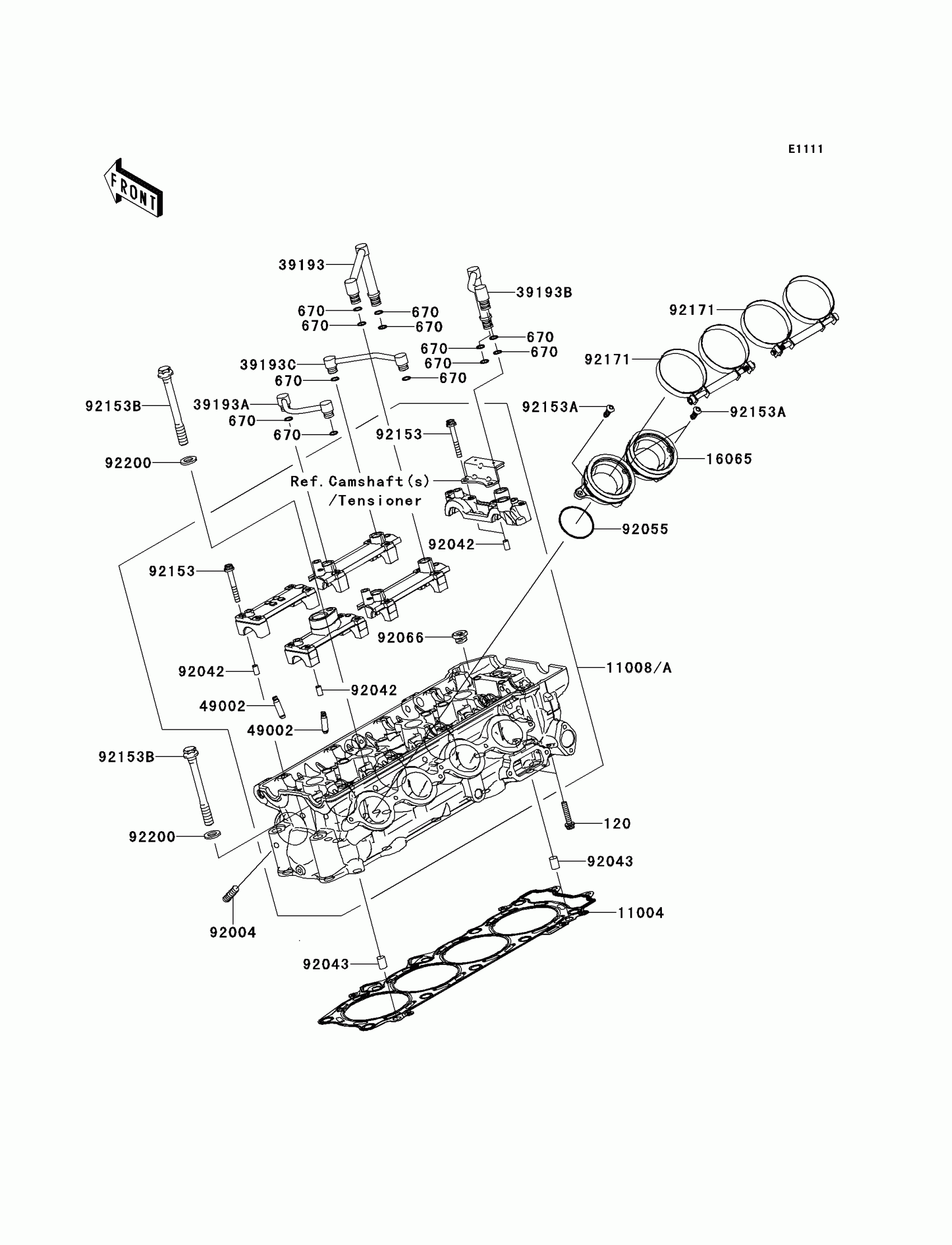

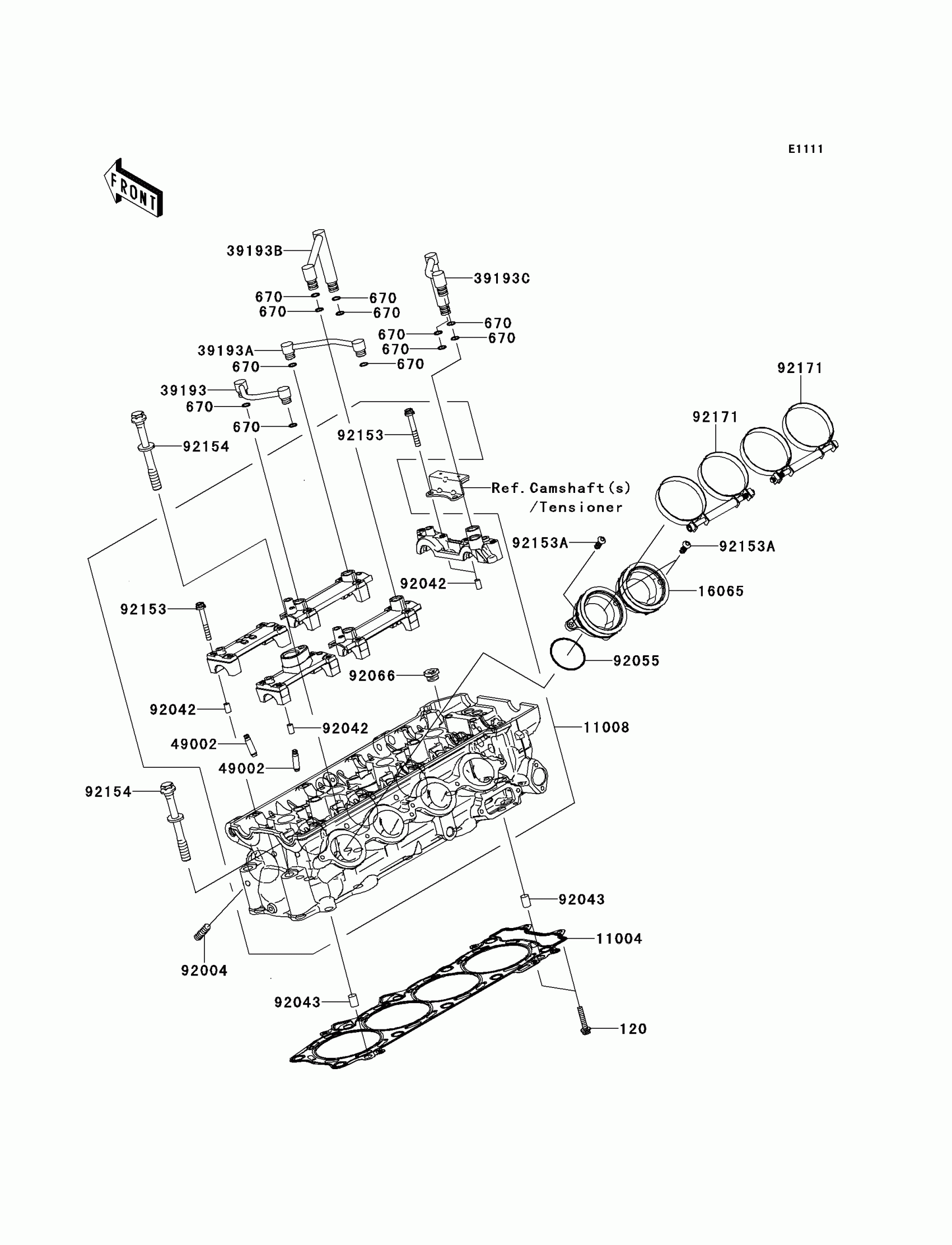

Kawasaki Concours™ 14 Cylinder Head Diagram

Description

Price

120

BOLT-SOCKET,6X30

120CD0630

$4.76

670

O RING,9MM

670D1509

$4.69

11004

GASKET-HEAD

11004-0059

$142.56

11008

HEAD-COMP-CYLINDER

11008-0194

$2,987.44

16065

HOLDER-CARBURETOR

16065-0040

$59.10

39193

PIPE-OIL

39193-0040

$46.35

39193A

PIPE-OIL

39193-0042

$46.35

39193B

PIPE-OIL

39193-0058

$88.83

39193C

PIPE-OIL

39193-0059

$88.83

49002

GUIDE-VALVE

49002-0014

Unavailable

92004

STUD,8X22

92004-0025

$3.87

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,8.2X10X14

92043-1264

$0.64

92055

RING-O,47X1.9

92055-1600

$9.19

92066

PLUG,18X10

92066-0016

$12.90

92153

BOLT,SOCKET,6X45

92153-0656

$2.55

92153A

BOLT,TORX,6X18

92153-1629

$3.99

92154

BOLT,11X98

92154-0256

$17.42

92171

CLAMP

92171-1892

$30.15
