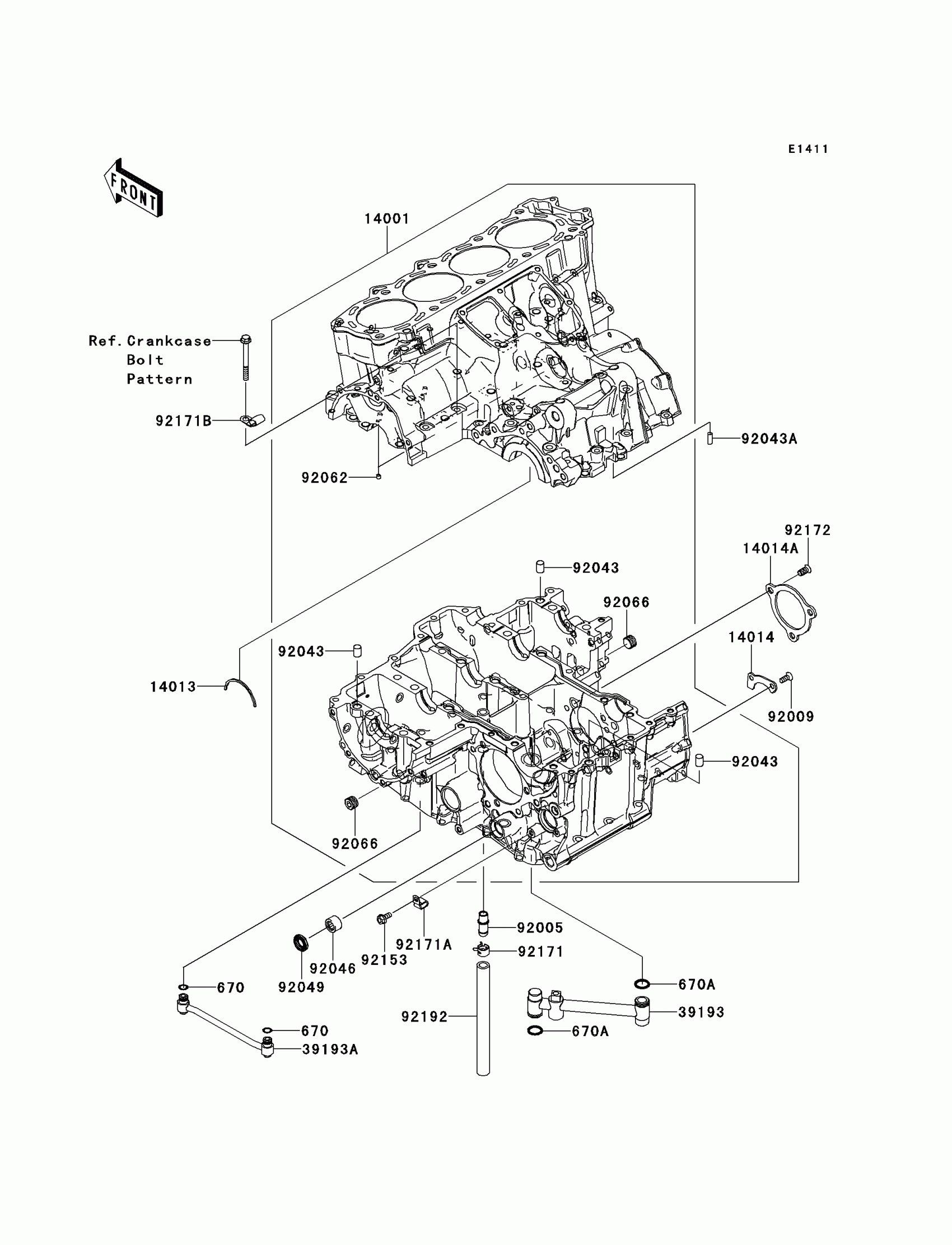

Kawasaki Concours™ 14 Crankcase Diagram

Description

Price

670

O RING,9MM

670D1509

$4.69

670A

O RING,16MM

670D2016

$1.70

14001

SET-CRANKCASE

14001-0127

Unavailable

14013

RING-POSITION

14013-1051

$3.96

14014

PLATE-POSITION

14014-0023

$5.65

14014A

PLATE-POSITION

14014-0032

$17.25

39193

PIPE-OIL

39193-0034

$92.32

39193A

PIPE-OIL

39193-0043

$88.65

92005

FITTING

92005-0043

$10.21

92043

PIN,10X14

92043-1506

$3.32

92043A

PIN,6X16

92043-1690

$5.00

92046

BEARING-NEEDLE,7E-HK1412

92046-037

$21.68

92049

SEAL-OIL,TC14245

92049-1520

$13.87

92062

NOZZLE

92062-0010

$5.33

92066

PLUG

92066-0064

$4.87

92153

BOLT,FLANGED,6X14

92153-1571

$2.15

92171

CLAMP

92171-0533

$3.39

92171A

CLAMP

92171-0534

$6.38

92171B

CLAMP

92171-0689

$8.68

92172

SCREW,6X16

92172-0218

Unavailable

92172A

SCREW,CSK-CROS,8X16

92172-0323

$3.86

92192

TUBE,11X17X180

92192-0254

Unavailable
