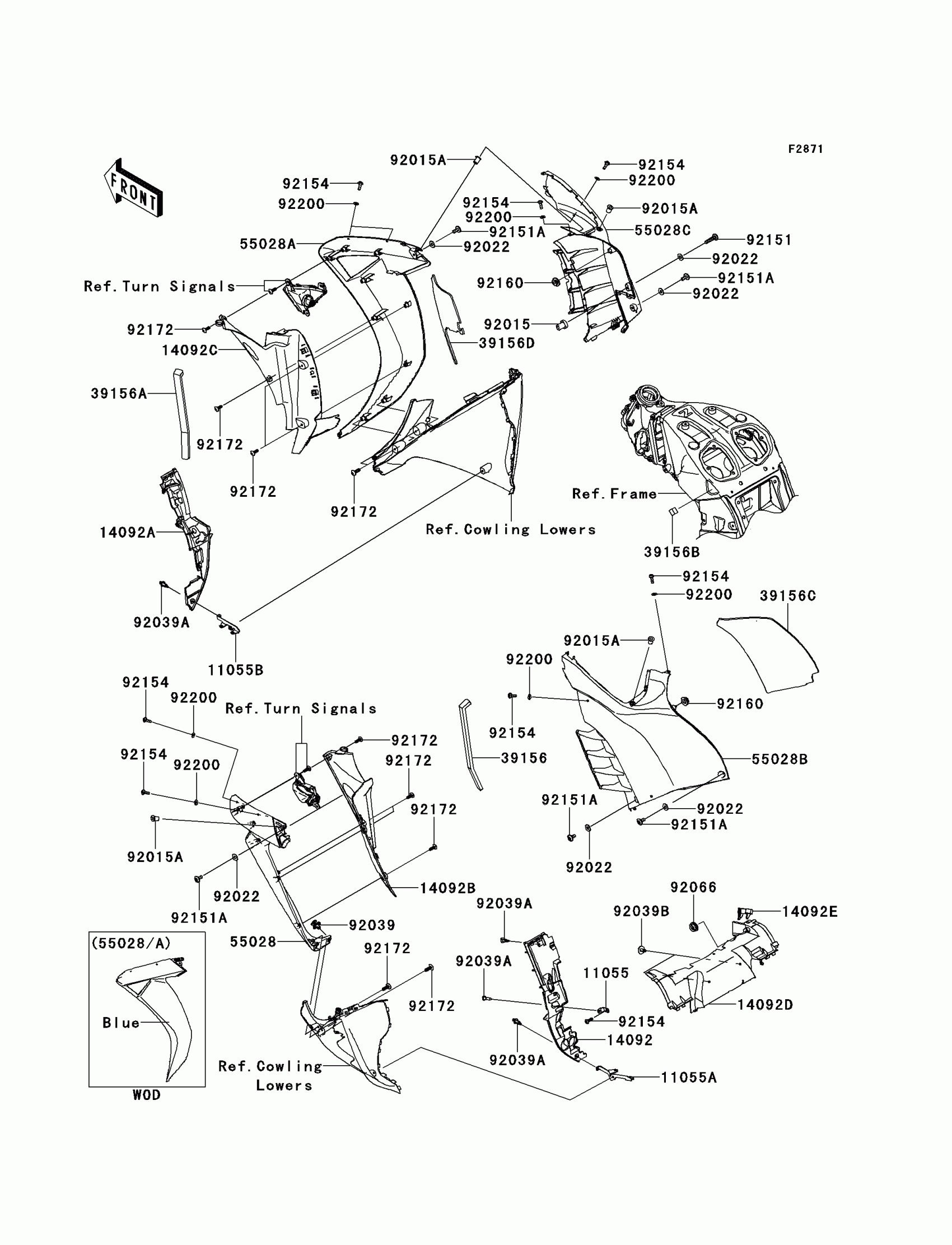

Kawasaki Concours™ 14 Cowling(Center) Diagram

#

Description
Price

11054

BRACKET,HEAT GUARD,LH

11054-1811

$15.25

11054A

BRACKET,HEAT GUARD,RH

11054-1812

$15.25

11054B

BRACKET,SIDE COWLING,LH

11054-1993

$19.01

11054C

BRACKET,SIDE COWLING,RH

11054-1994

$19.01

11055

BRACKET,PAD,LH

11055-0065

$28.87

11055A

BRACKET,PAD,RH

11055-0292

$28.87

11055B

BRACKET,HEAT GUARD,LH

11055-0293

$35.58

11055C

BRACKET,HEAT GUARD,RH

11055-0304

$35.58

14091

COVER,HEAT GUARD,LH

14091-0831

$63.81

14091A

COVER,SHROUD,LH

14091-0841

$44.97

14091B

COVER,SHROUD,RH

14091-0842

$44.97

14091D

COVER,HEAT GUARD,RH

14091-0938

$63.81

39156

PAD,CNT COWLING,LH

39156-0301

$38.55

39156A

PAD,CNT COWLING,LH

39156-0304

$22.55

39156B

PAD,CNT COWLING,RH

39156-0306

$24.63

39156C

PAD,CNT COWLING,RH

39156-0307

$17.75

39156D

PAD,CNT COWLING,RH

39156-0309

$22.55

39156E

PAD,CNT COWLING

39156-0333

$1.33

39156F

PAD,HEAT GUARD,RH,UPP

39156-0337

$27.58

39156G

PAD,SIDE COWLING,LH

39156-0355

$16.53

39156H

PAD,HEAT GUARD,LH

39156-0356

$4.28

39156I

PAD,HEAT GUARD,RH

39156-0357

$4.28

39156J

PAD,HEAT GUARD,LH,UPP

39156-0361

$27.58

39156M

PAD,SIDE COWLING,RH

39156-0366

$22.55

39156N

PAD,HEAT GUARD,LH

39156-0370

$51.86

39156O

PAD,CNT COWLING,LH

39156-0371

$37.89

39156P

PAD,HEAT GUARD

39156-0389

$2.13

39156Q

PAD,HEAT GUARD

39156-0391

$2.85

39156R

PAD,HEAT GUARD,RH

39156-0392

$51.86

39156S

PAD,HEAT GUARD,FR

39156-0393

$18.14

39156T

PAD,CNT COWLING,LH

39156-0395

$12.53

39156U

PAD,HEAT GUARD,LH

39156-0420

$7.75

39156V

PAD,HEAT GUARD,RH

39156-0421

$7.75

55028

COWLING,SIDE,LH,M.D.BLACK

55028-0185-17K

$352.16

55028B

COWLING,SIDE,LH,C.D.RED

55028-0185-25T

$352.16

55028C

COWLING,SIDE,RH,M.D.BLACK

55028-0186-17K

$348.62

55028E

COWLING,SIDE,RH,C.D.RED

55028-0186-25T

$349.68

55028F

COWLING,CNT,LH,M.D.BLACK

55028-0187-17K

$452.54

55028H

COWLING,CNT,LH,C.D.RED

55028-0187-25T

$452.54

55028I

COWLING,CNT,RH,M.D.BLACK

55028-0188-17K

$432.91

55028K

COWLING,CNT,RH,C.D.RED

55028-0188-25T

$432.91

55028L

COWLING,HOT WIND,LH,M.D.BLACK

55028-0206-17K

$140.47

55028N

COWLING,HOT WIND,LH,C.D.RED

55028-0206-25T

$140.47

55028O

COWLING,HOT WIND,RH,M.D.BLACK

55028-0207-17K

$140.47

55028Q

COWLING,HOT WIND,RH,C.D.RED

55028-0207-25T

$140.47

92015

NUT,RUBBER,6MM

92015-1692

$7.34

92015A

NUT

92015-1700

$8.58

92015B

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,6.5X16X1

92022-1143

$3.92

92022A

WASHER,5.5X20X1.2

92022-1405

$4.31

92039

RIVET

92039-1289

$2.80

92151

BOLT,SOCKET,6X30

92151-1605

$2.34

92151A

BOLT,SOCKET,6X14

92151-1654

$1.83

92151B

BOLT,SOCKET,6X35

92151-1835

$2.34

92152

COLLAR,6.5X10X5.6

92152-0445

$4.92

92152A

COLLAR

92152-0584

$8.65

92152B

COLLAR,5.6X8X35

92152-0605

$4.33

92153

BOLT,SOCKET,6MM

92153-0489

$3.73

92153A

BOLT,SOCKET,6X50

92153-1842

$2.61

92153B

BOLT,SOCKET,6MM

92153-1956

$3.90

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

220

SCREW-PAN-CROS,5X45

220AA0545

$2.26

92160

DAMPER

92160-1613

$3.74

92171

CLAMP

92171-1807

$9.71

92172

SCREW,TAPPING,5X16

92172-0238

$1.00

92172A

SCREW,5X16

92172-0322

$2.15

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92200A

WASHER,10.4X15.9X0.5

92200-0157

$2.15

92200B

WASHER,5.5X20X1.2

92200-0284

$2.15

92200C

WASHER

92200-0288

$1.34
