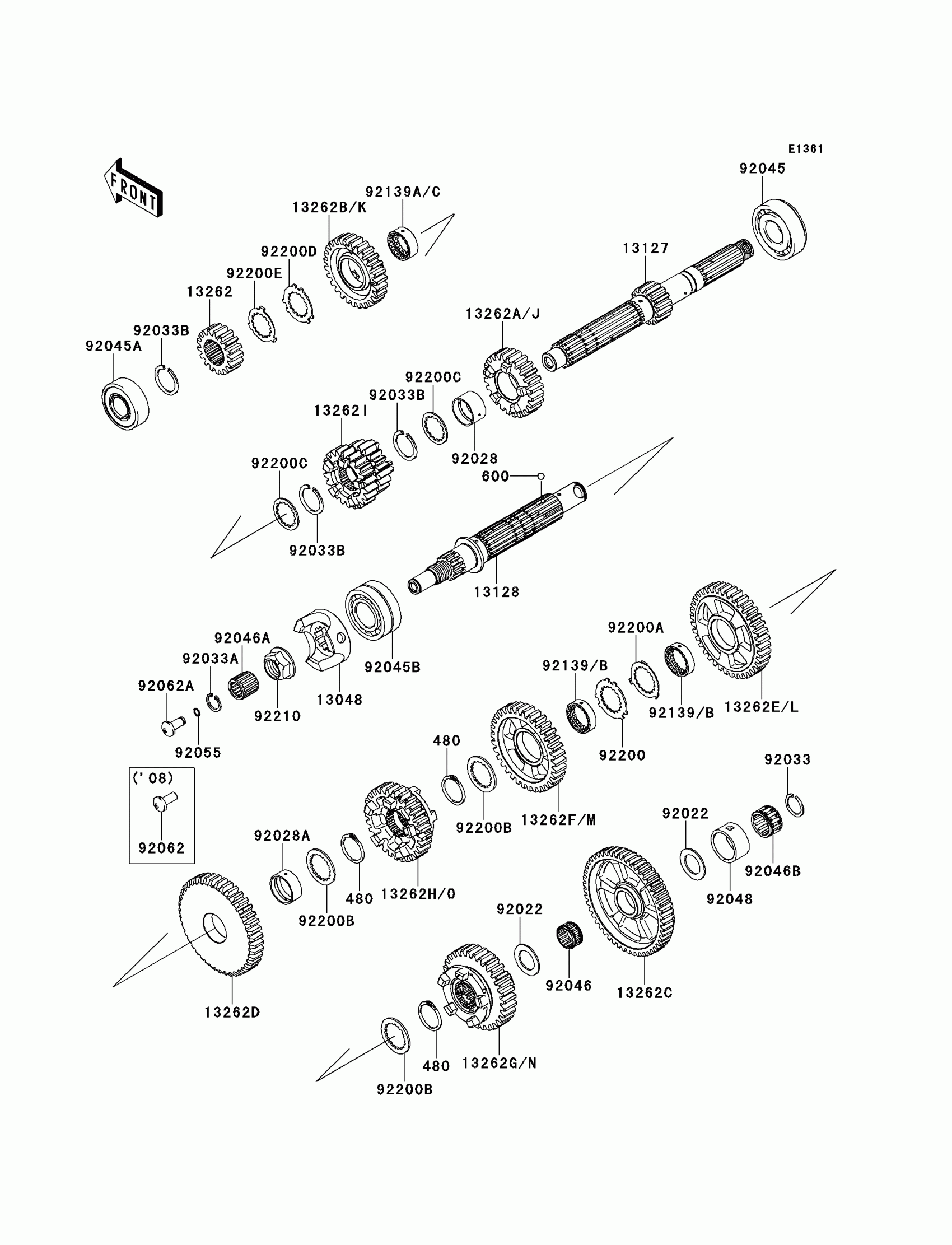

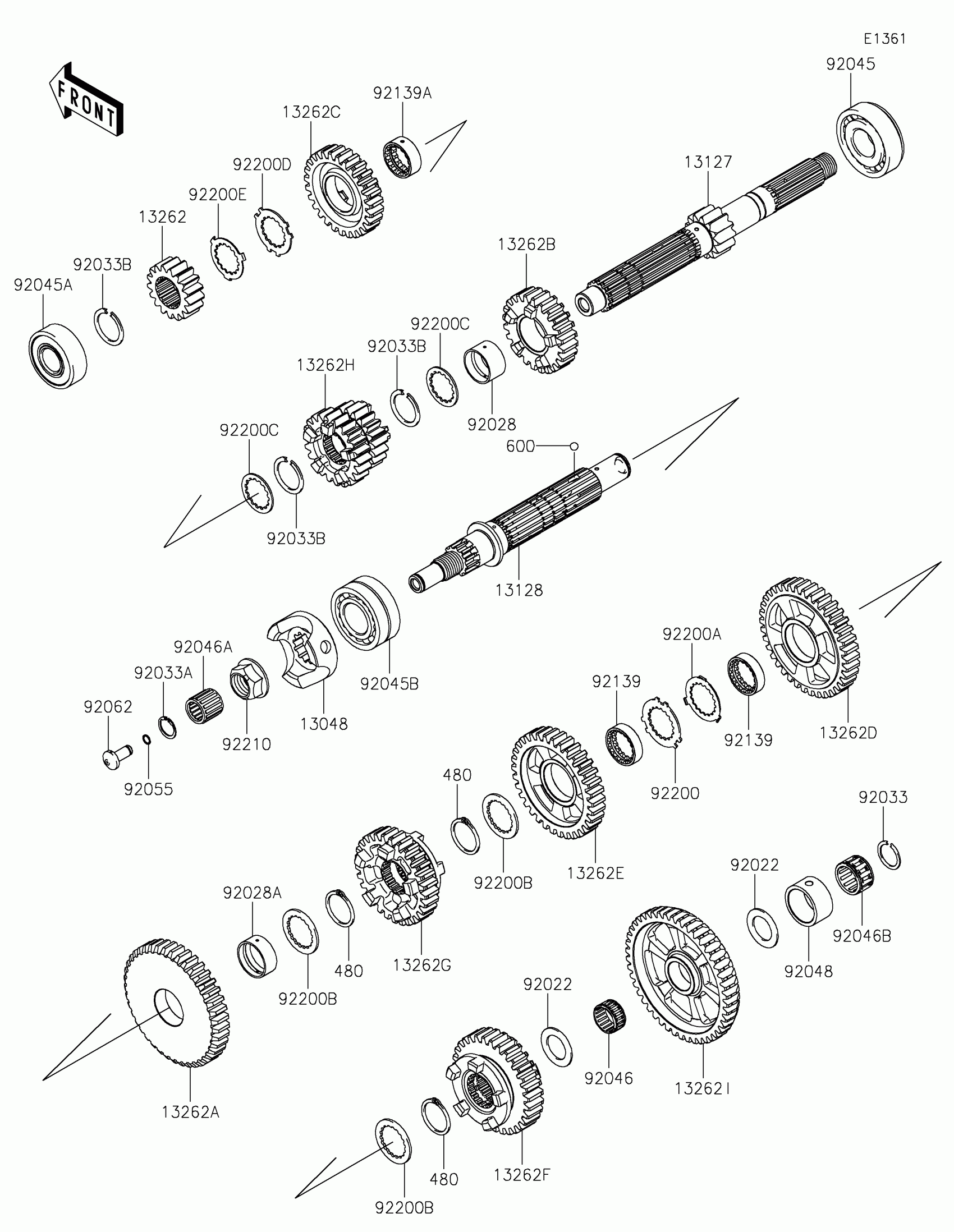

Kawasaki Concours 14 ABS Transmission Diagram

#

Description
Price

13048

CAM-DAMPER

13048-0014

$61.13

13127

SHAFT-TRANSMISSION INPUT

13127-0057

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-0034

$263.60

13262

GEAR,INPUT 2ND,17T

13262-0399

$134.58

13262C

GEAR,OUTPUT LOW,50T

13262-0403

$167.98

13262D

GEAR,OUTPUT 2ND,41T

13262-0404

$160.28

13262I

GEAR,INPUT 3RD&4TH,20T&22T

13262-0588

$224.68

13262J

GEAR,INPUT 5TH,24T

13262-0722

$134.56

13262K

GEAR,INPUT 6TH,27T

13262-0723

$134.56

13262L

GEAR,OUTPUT 3RD,38T

13262-0725

Unavailable

13262M

GEAR,OUTPUT 4TH,34T

13262-0726

Unavailable

13262N

GEAR,OUTPUT 5TH,31T

13262-0727

$194.47

13262O

GEAR,OUTPUT 6TH,29T

13262-0728

$194.47

92022

WASHER,22.3X35X1.6

92022-212

$9.91

92028

BUSHING

92028-1935

$21.19

92028A

BUSHING

92028-1937

$14.83

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP

92033-032

$4.96

92033B

RING-SNAP,T=1.5

92033-1249

$4.96

92045

BEARING-BALL,830045-5SH2

92045-0047

$36.26

92045A

BEARING-BALL,DG2152RDDSH2

92045-0048

$41.98

92045B

BEARING-BALL

92045-0116

$98.33

92046

BEARING-NEEDLE,K22X26X13

92046-0018

$20.44

92046A

BEARING-NEEDLE,FWF-162222

92046-1260

$23.91

92046B

BEARING-NEEDLE,K22X30X16.8X2

92046-1268

$19.66

92048

RACE

92048-0004

$25.79

92055

RING-O,6.5X1.0

92055-0171

$3.71

92062A

NOZZLE

92062-0018

$16.39

92139B

BUSHING

92139-0255

$28.37

92139C

BUSHING,INPUT 6TH,GEAR

92139-0256

$28.37

480

CIRCLIP

480J2900

$6.22

600

BALL-STEEL,5/32

600A0500

$0.81

92200

WASHER,27.5X43X1.5

92200-0255

$6.07

92200A

WASHER,27.5X39.7X1.0

92200-0256

$6.07

92200B

WASHER,TOOTHED,28X40X2

92200-1277

$11.99

92200C

WASHER,25.5X35.5X1.5

92200-1340

$6.47

92200D

WASHER,25.8X40.5X1.5

92200-1522

$4.83

92200E

WASHER,25.2X37.0X1.0

92200-1523

$6.36

92210

NUT,20MM

92210-0365

$7.75
