2009 Kawasaki Concours 14 ABS Rear Suspension Diagram

← All diagrams

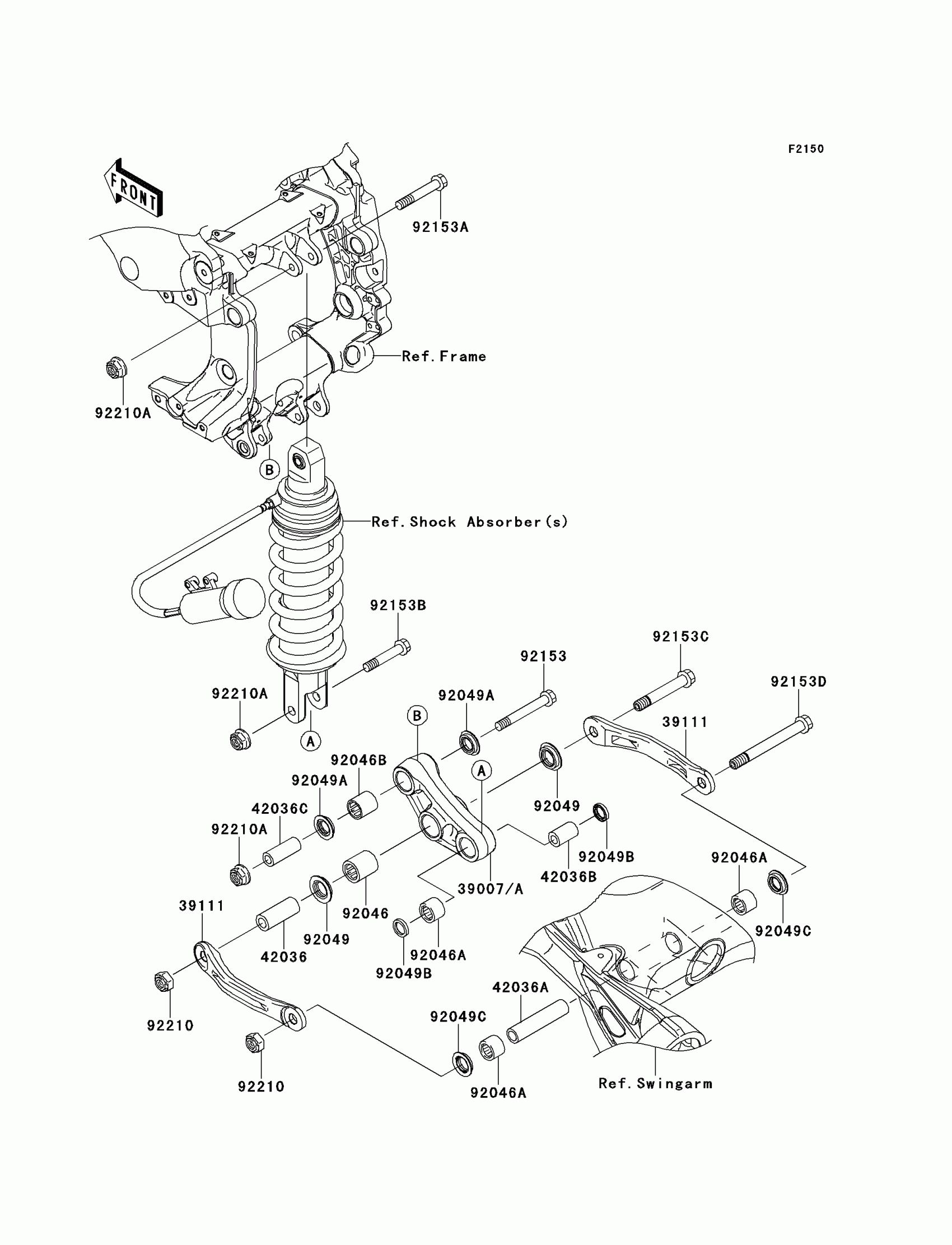

Find the part on the Rear Suspension diagram for your 2009 Kawasaki Concours 14 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Concours 14 ABS Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007A

ARM-SUSP

39007-0120

1

$285.83

In stock

39111

ROD-TIE,SUSPENSION

39111-0038

1

$36.84

In stock

42036

SLEEVE,12.1X20X50

42036-1111

1
Out of stock

42036A

SLEEVE,12.1X18X82

42036-1231

1
Out of stock

42036B

SLEEVE,10.1X18X30

42036-1258

1
Out of stock

42036C

SLEEVE,10.1X17X44.5

42036-1342

1
Out of stock

92046

BEARING-NEEDLE,7E-HVS20X27X30

92046-0029

1
Out of stock

92046A

BEARING-NEEDLE,SFYZM182417

92046-1272

1
Out of stock

92046B

BEARING-NEEDLE,SFYZM172425

92046-1273

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92049A

SEAL-OIL,MHA17245.7F

92049-1223

1
Out of stock

92049B

SEAL-OIL,MHA18244

92049-1225

1
Out of stock

92049C

SEAL-OIL,KCR MF018N1

92049-1493

1
Out of stock

92153

BOLT,FLANGED,10X77

92153-1613

1
Out of stock

92153A

BOLT,FLANGED,10X62

92153-1614

1
Out of stock

92153B

BOLT,FLANGED,10X55

92153-1615

1
Out of stock

92153C

BOLT,FLANGED,12X76

92153-1844

1
Out of stock

92153D

BOLT,FLANGED,12X111

92153-1845

1
Out of stock

92210

NUT,LOCK,12MM

92210-0274

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
