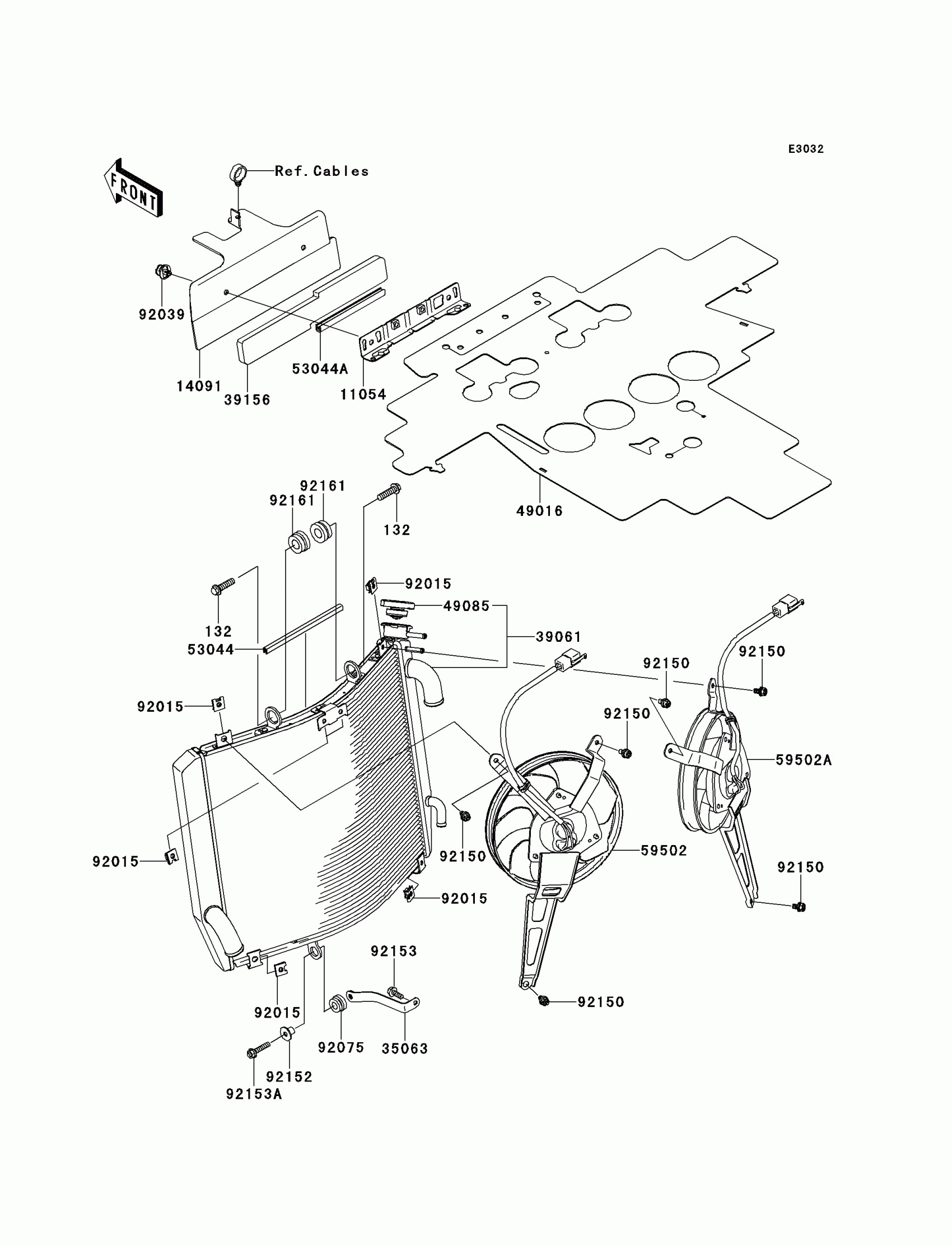

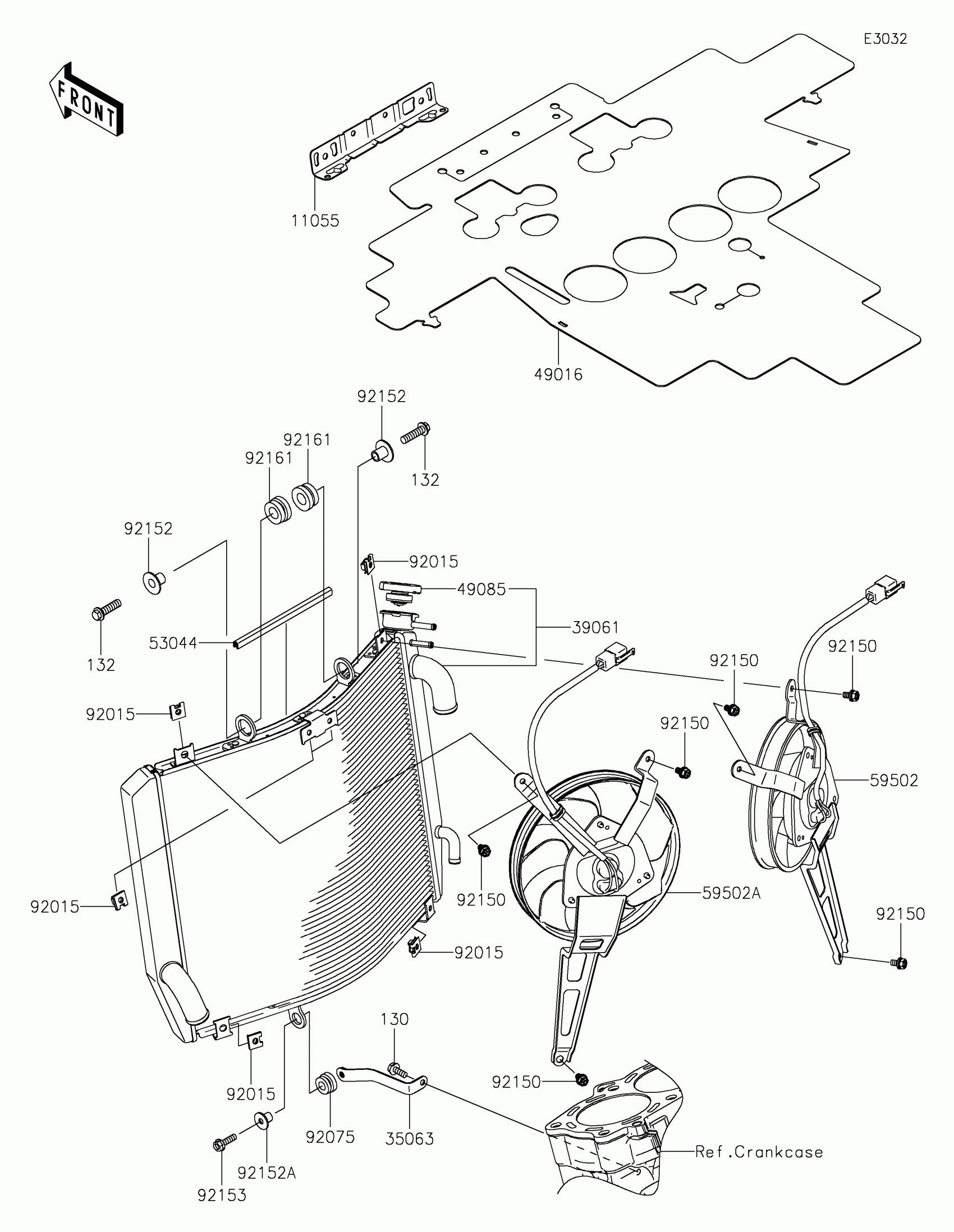

Kawasaki Concours 14 ABS Radiator Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X30

132BC0830

$3.90

11054

BRACKET

11054-0866

$29.35

14091

COVER,HOT WIND

14091-0809

$35.25

35063

STAY

35063-0440

$11.93

39061

RADIATOR-ASSY

39061-0107

$1,119.64

39156

PAD

39156-0287

$8.57

49016

COVER-SEAL,HOT WIND

49016-0035

$131.50

49085

CAP-ASSY-PRESSURE

49085-1066

$37.42

53044

TRIM

53044-0016

$11.93

53044A

TRIM

53044-1312

$5.22

59502

FAN-ASSY

59502-0030

Unavailable

59502A

FAN-ASSY,RH

59502-0031

Unavailable

92015

NUT

92015-1487

$4.80

92039

RIVET,HOLE 8MM

92039-0014

$3.29

92075

DAMPER,RUBBER

92075-1123

$5.00

92150

BOLT,6X12

92150-1186

$3.37

92152

COLLAR

92152-0440

$5.65

92153

BOLT-FLANGED,6X16

92153-1584

Unavailable

92153A

BOLT,FLANGED,6X30

92153-1590

$2.32

92161

DAMPER

92161-0304

$2.97
