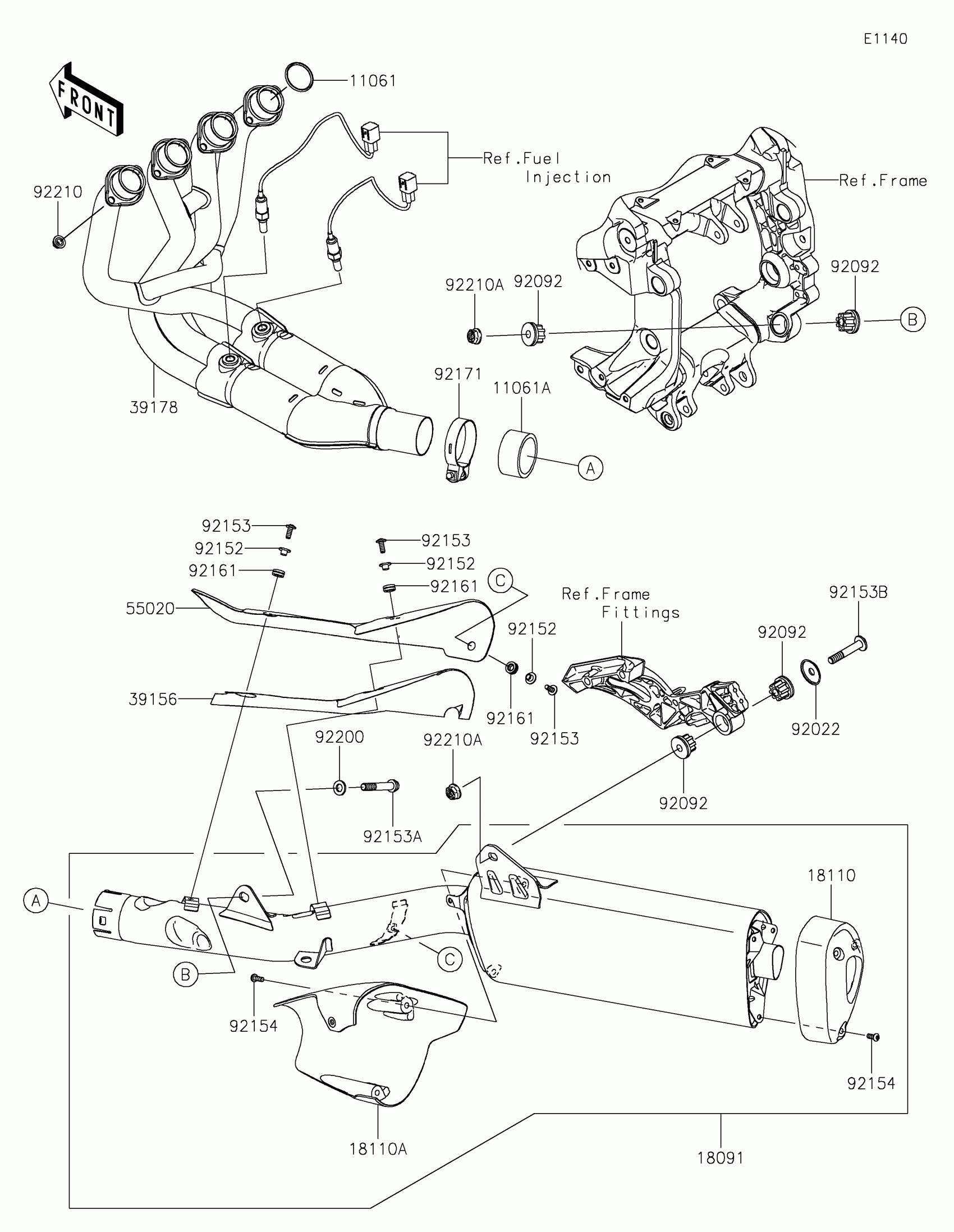

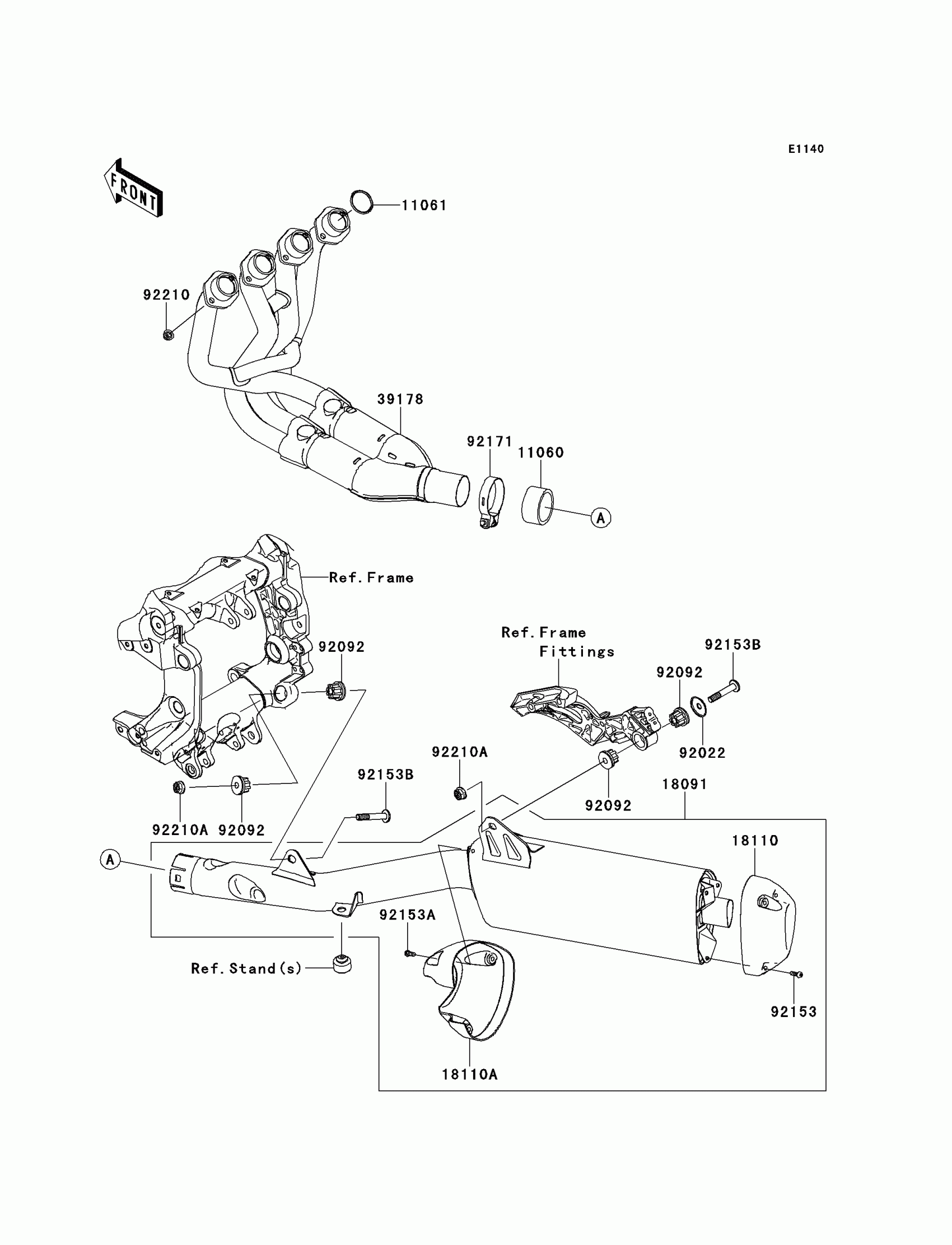

Kawasaki Concours®14 ABS Muffler(s) Diagram

Description

Price

11061

GASKET,EX PIPE

11061-0027

$7.60

11061A

GASKET,54X62X30

11061-0448

$21.89

18091

BODY-COMP-MUFFLER

18091-0989

$1,564.61

18110

BODY END-MUFFLER,RR

18110-0191

$129.55

18110A

BODY END-MUFFLER,FR

18110-0192

$149.28

39156

PAD

39156-1830

$13.63

39178

MANIFOLD-COMP-EXHAUST

39178-0236

$1,853.70

55020

GUARD

55020-1838

$144.95

92022

WASHER

92022-289

$16.33

92092

BUSHING-RUBBER,MUFFLER

92092-1087

$19.90

92152

COLLAR,6.3X8.3X16

92152-0286

$5.65

92153

BOLT,SOCKET,6X16

92153-0817

$2.15

92153A

BOLT,SOCKET,10X60

92153-1837

$13.60

92153B

BOLT,SOCKET,10X58

92153-1930

$8.68

92154

BOLT

92154-0298

$2.03

92161

DAMPER

92161-0306

$5.65

92171

CLAMP,64.5MM

92171-0683

$23.84

92200

WASHER,10.7X20X2.5

92200-0393

$3.90

92210

NUT,8MM

92210-0076

$5.48

92210A

NUT,10X1.25

92210-0316

$11.30
