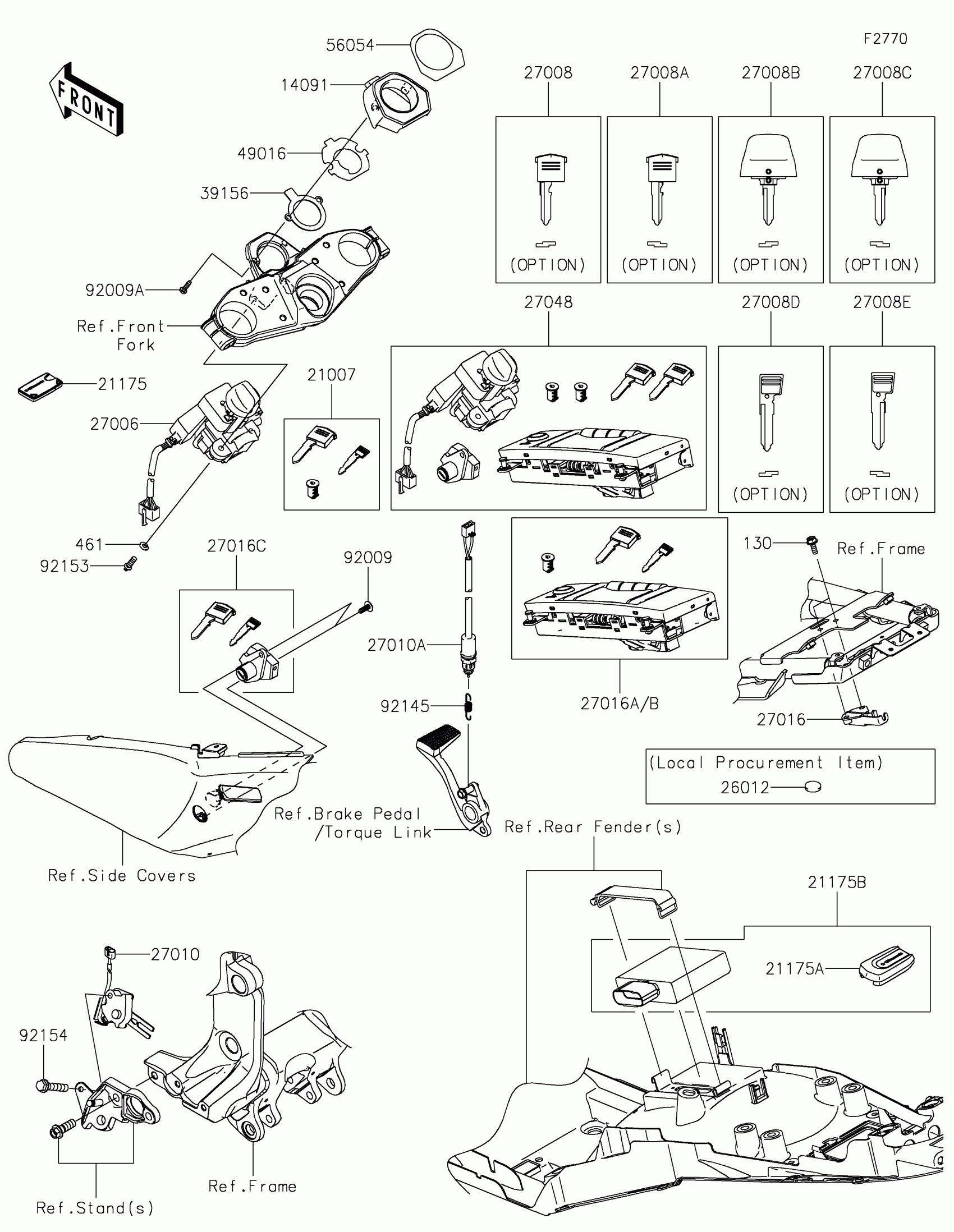

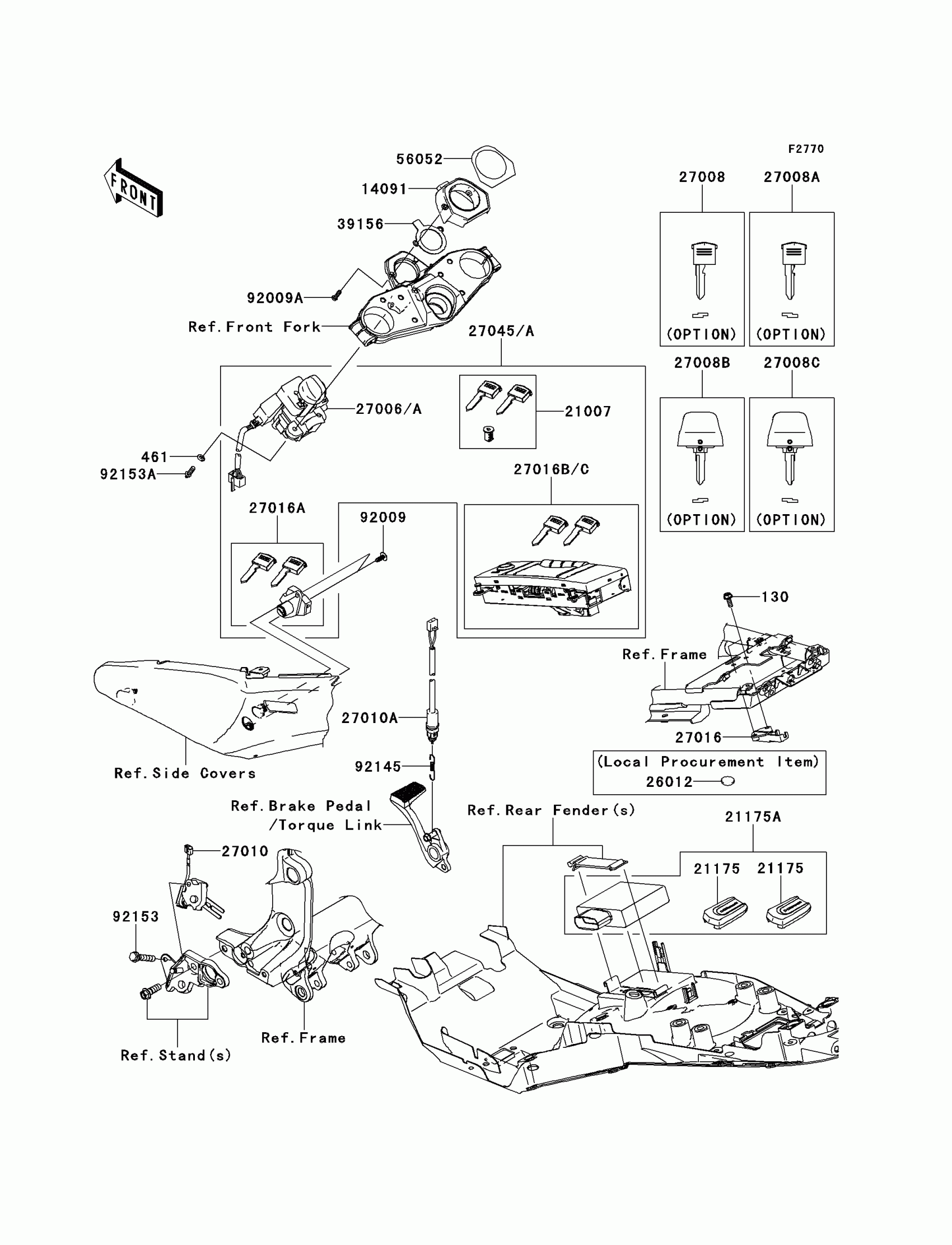

Kawasaki Concours 14 ABS Ignition Switch/Locks/Reflectors Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BA0612

$1.72

461

WASHER-SPRING,6MM

461DA0600

$0.71

14091

COVER,KEY CYLINDER

14091-0659

$13.48

21007

ROTOR,LOCK TANK CAP

21007-5062

$128.12

21175

FOB KEY

21175-0181

Unavailable

21175A

CONTROL UNIT-ELECTRONIC

21175-0183

Unavailable

26012

Not Available As Spare Part - Friction Washer

Unavailable

27006A

SWITCH-IGNITION

27006-0060

$803.99

27008

KEY-LOCK,BLANK,#A

27008-0048

$22.80

27008A

KEY-LOCK,BLANK,#B

27008-0049

$22.80

27008B

KEY-LOCK,BLANK,#A,MAIN SWITCH

27008-0050

$26.91

27008C

KEY-LOCK,BLANK,#B,MAIN SWITCH

27008-0051

$26.91

27010

SWITCH,SIDE STAND

27010-0064

$134.36

27010A

SWITCH,REAR BRAKE

27010-1479

$30.06

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$28.59

27016A

LOCK-ASSY,SEAT

27016-5350

$75.71

27016B

LOCK-ASSY,SIDE BAG,LH

27016-5355

$388.83

27016C

LOCK-ASSY,SIDE BAG,RH

27016-5356

$388.83

27045A

SWITCH-ASSY

27045-5395

$1,479.27

39156

PAD,KEY CYLINDER

39156-0319

$5.60

56052

MARK,IGNITION SWITCH

56052-1946

$39.22

92009

SCREW,TAPPING

92009-1113

$3.92

92009A

SCREW,TAPPING,5X16

92009-1264

$3.13

92145

SPRING,REAR BRAKE SWITCH

92145-0471

$5.60

92153

BOLT,FLANGED,6X30

92153-1425

$2.15

92153A

BOLT,TORX,6X16

92153-1426

$3.90
