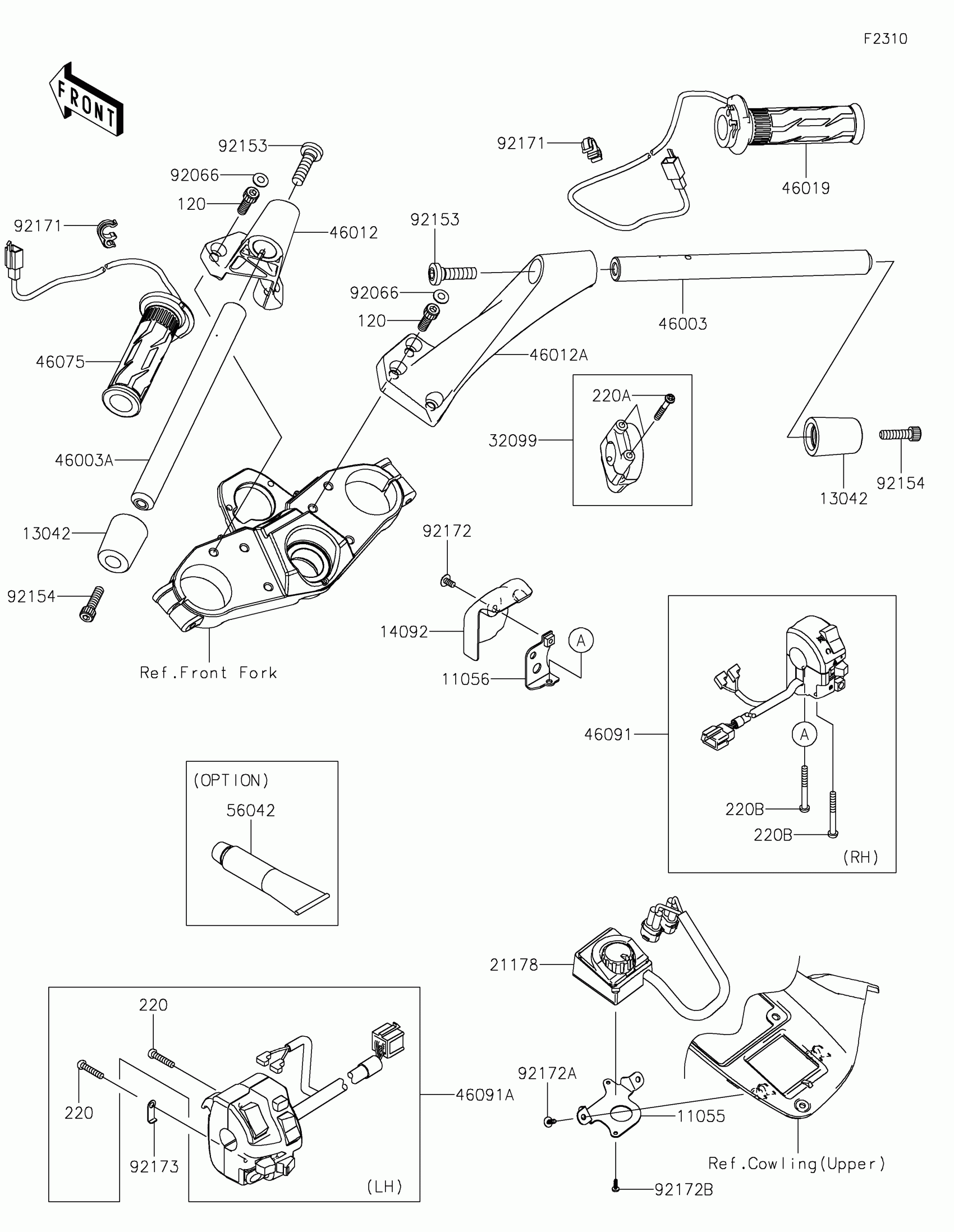

Kawasaki Concours®14 ABS Handlebar Diagram

#

Description
Price

11055

BRACKET,CONTROL SWITCH

11055-1753

$7.24

11056

BRACKET

11056-0154

$7.24

13042

WEIGHT,HANDLE

13042-5002

$51.69

14092

COVER

14092-0126

$9.52

21178

CONTROL-SWITCH,GRIP HEATERS

21178-0004

$111.99

32099

CASE,THROTTLE

32099-0769

$43.21

46003

HANDLE,RH

46003-0177

$181.31

46003A

HANDLE,LH

46003-0191

$181.53

46012

HOLDER-HANDLE,LH,F.S.BLACK

46012-0086-18R

$124.28

46012A

HOLDER-HANDLE,RH,F.S.BLACK

46012-0087-18R

$124.28

46019

GRIP-ASSY,THROTTLE,HEATER

46019-0111

$166.06

46075

GRIP,LH,HEATER

46075-0653

$120.29

46091

HOUSING-ASSY-CONTROL,RH

46091-0189

$168.16

46091A

HOUSING-ASSY-CONTROL,LH

46091-0202

$301.51

56042

ADHESIVE,TB1530C

56042-0001

$101.11

92066

PLUG

92066-1216

$4.65

92153

BOLT,SOCKET,10X37

92153-1440

$7.75

92154

BOLT,SOCKET,8X30

92154-1866

$5.52

92171

CLAMP,BRAKE HOSE

92171-1819

$5.54

92172

SCREW,5X10

92172-0007

$0.52

92172A

SCREW,TAPPING,4X10

92172-0172

$4.15

92172B

SCREW,TAPPING,3X10

92172-0351

$1.28

92173

CLAMP

92173-0177

$7.24

120

BOLT-SOCKET,8X25

120CA0825

$2.06

220

SCREW-PAN-CROS,5X25

220AB0525

$3.52

220A

SCREW-PAN-CROS,5X35

220AB0535

$2.06

220B

SCREW-PAN-CROS,5X45

220AB0545

$2.06
