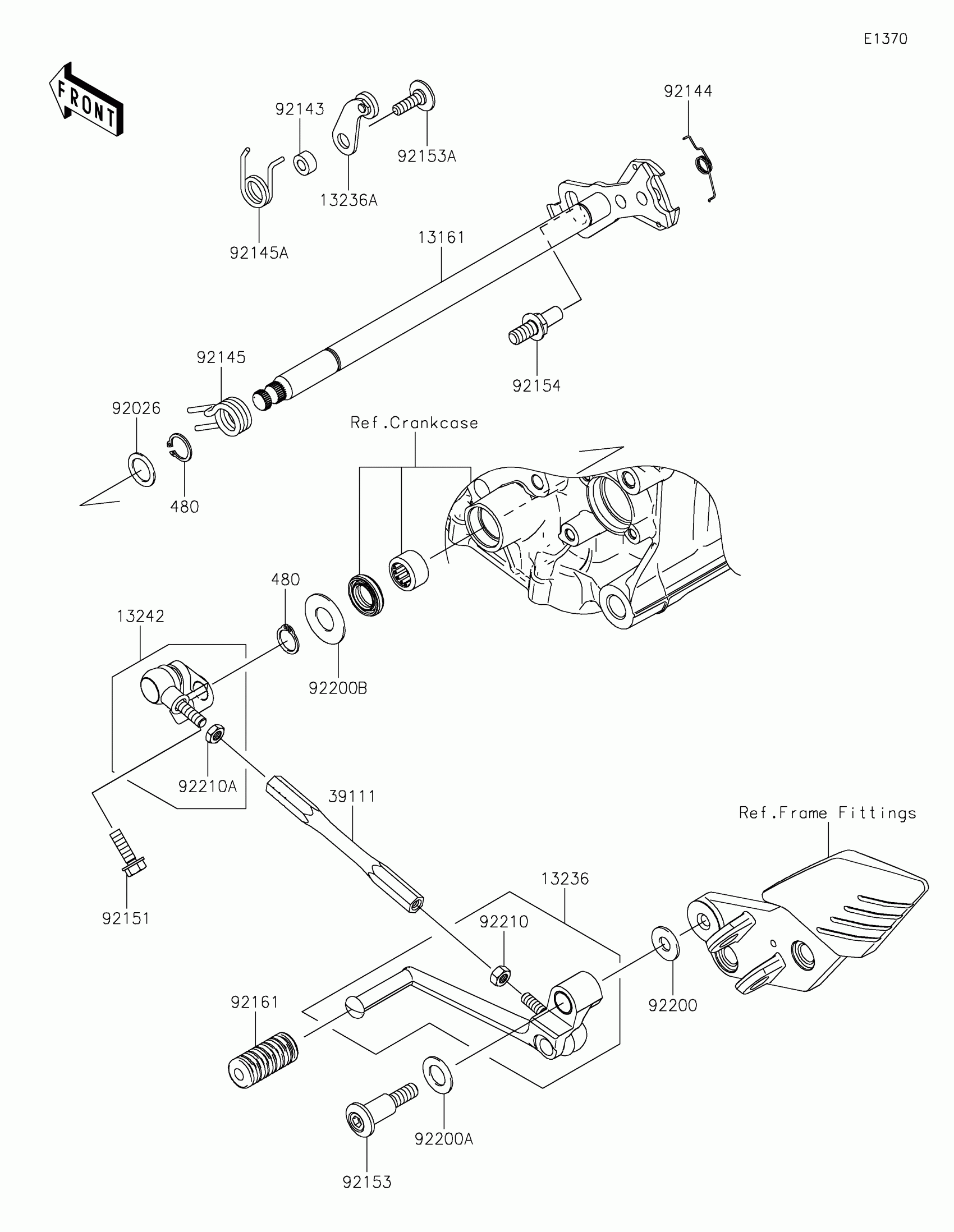

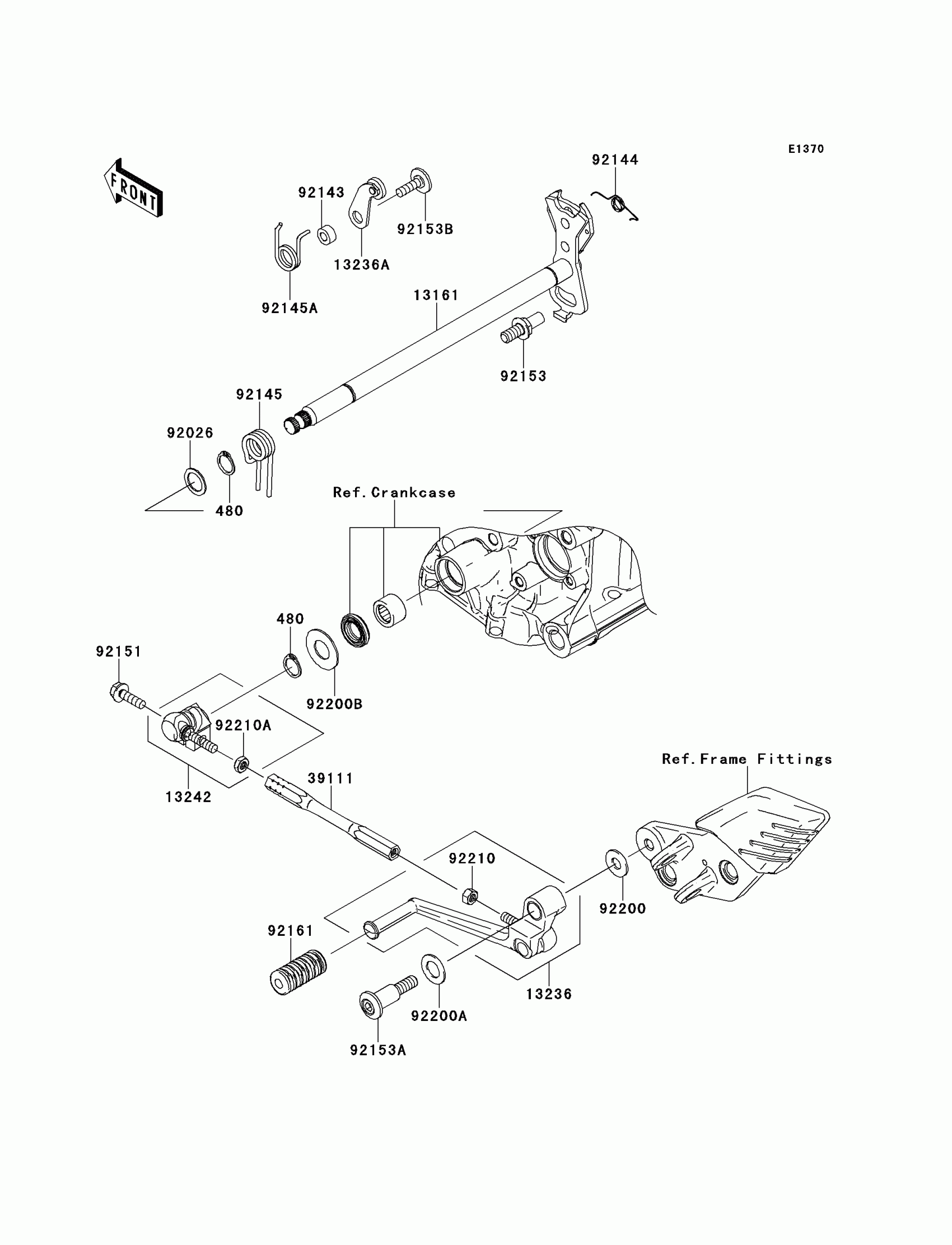

Kawasaki Concours 14 ABS Gear Change Mechanism Diagram

Description

Price

480

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

13161

LEVER-COMP-CHANGE SHAFT

13161-0034

Unavailable

13236

LEVER-COMP,CHANGE PEDAL

13236-0078

$110.67

13236A

LEVER-COMP

13236-1243

$19.66

13242

LEVER-ASSY-CHANGE

13242-0039

$68.38

39111

ROD-TIE

39111-0034

$44.67

92026

SPACER,14X20X1.0

92026-1534

$4.31

92143

COLLAR

92143-1595

$9.51

92144

SPRING

92144-1029

$7.77

92145

SPRING

92145-0336

$11.19

92145A

SPRING

92145-0404

$5.29

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92153

BOLT,RETURN SPRING

92153-0421

$9.07

92153A

BOLT,8X41

92153-0880

$10.37

92153B

BOLT,6X20

92153-1505

$7.75

92161

DAMPER,CHANGE PEDAL

92161-1300

$6.18

92200

WASHER,8.5X20X1.5

92200-0198

$3.35

92200A

WASHER,12.5X22X1.2

92200-0199

$3.35

92200B

WASHER

92200-0265

$2.61

92210

NUT,6MM

92210-1100

$2.34

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.86
