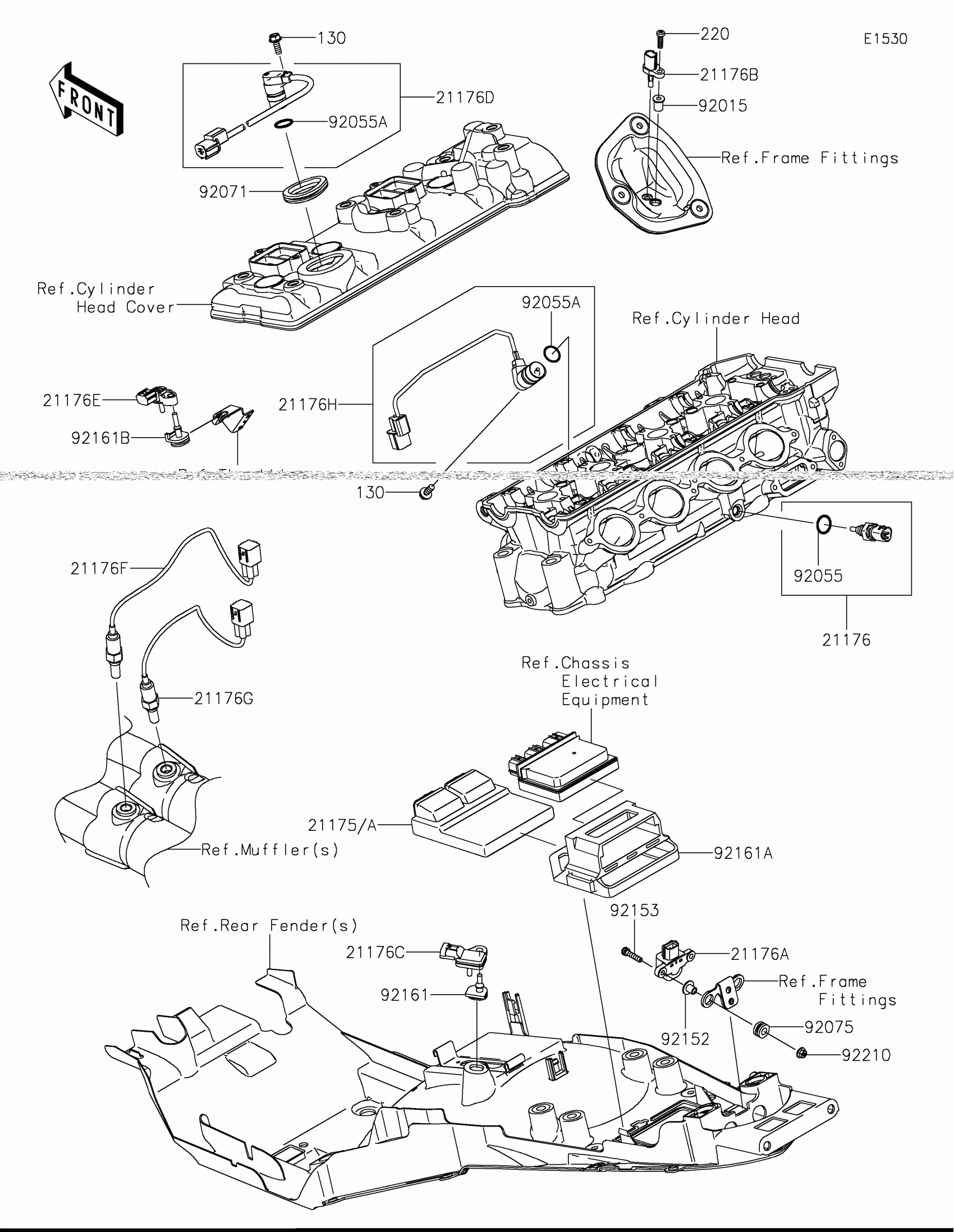

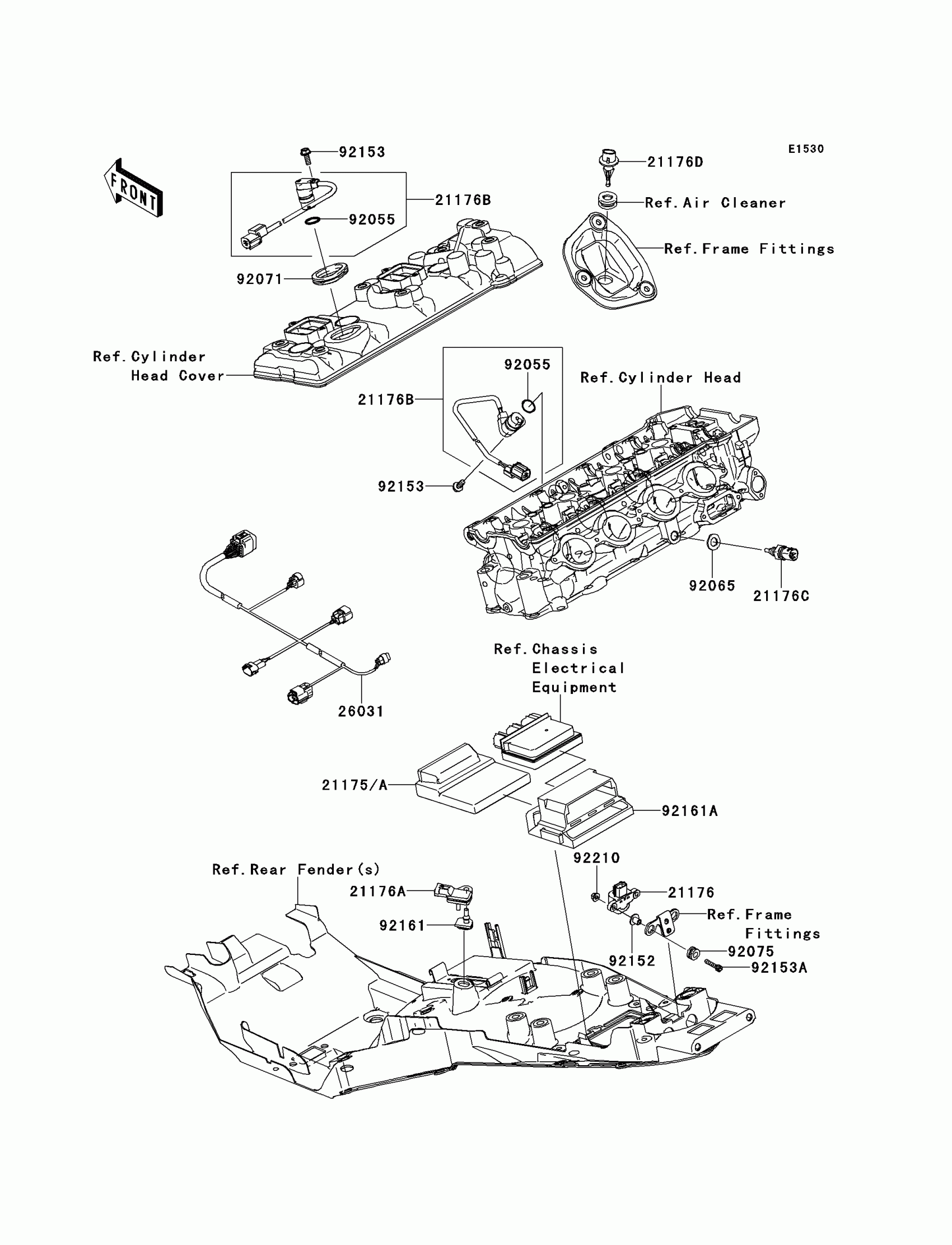

Kawasaki Concours®14 ABS Fuel Injection Diagram

Description

Price

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176C

SENSOR,PRESSURE

21176-0058

$141.24

21176D

SENSOR,CAM

21176-0064

$127.99

21176E

SENSOR,PRESSURE

21176-0111

$222.28

21176F

SENSOR,OXYGEN,LH

21176-0139

$232.92

21176G

SENSOR,OXYGEN,RH

21176-0140

$221.68

21176H

SENSOR,CAMSHAFT POSITION

21176-0803

$127.99

92015

NUT,WELL,5MM

92015-1757

$7.29

92055

RING-O,9.5X1.9

92055-0016

$8.89

92055A

RING-O

92055-1639

$3.09

92071

GROMMET

92071-0028

$10.21

92075

DAMPER

92075-1912

$5.77

92152

COLLAR

92152-0329

$7.75

92153

BOLT,SOCKET,5X22

92153-1597

$2.15

92161

DAMPER

92161-0041

$5.00

92161A

DAMPER

92161-0092

$19.83

92161B

DAMPER

92161-0673

$5.54

92210

NUT,FLANGED,5MM

92210-0007

$2.70

130

BOLT-FLANGED,6X16

130CC0616

$1.94

220

SCREW-PAN-CROS,5X18

220AB0518

$3.69
