2021 Kawasaki CONCOURS®14 ABS Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2021 Kawasaki CONCOURS®14 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

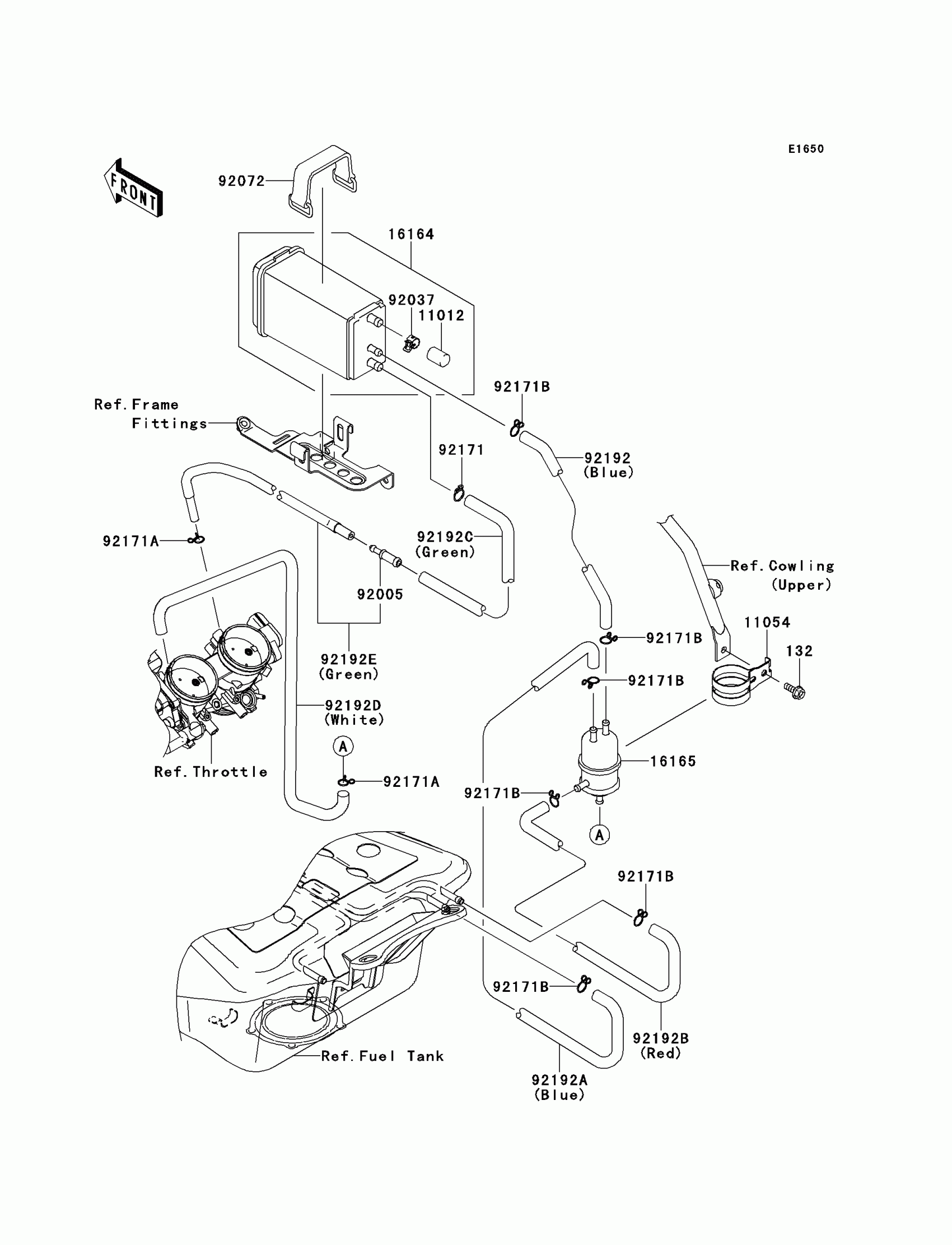

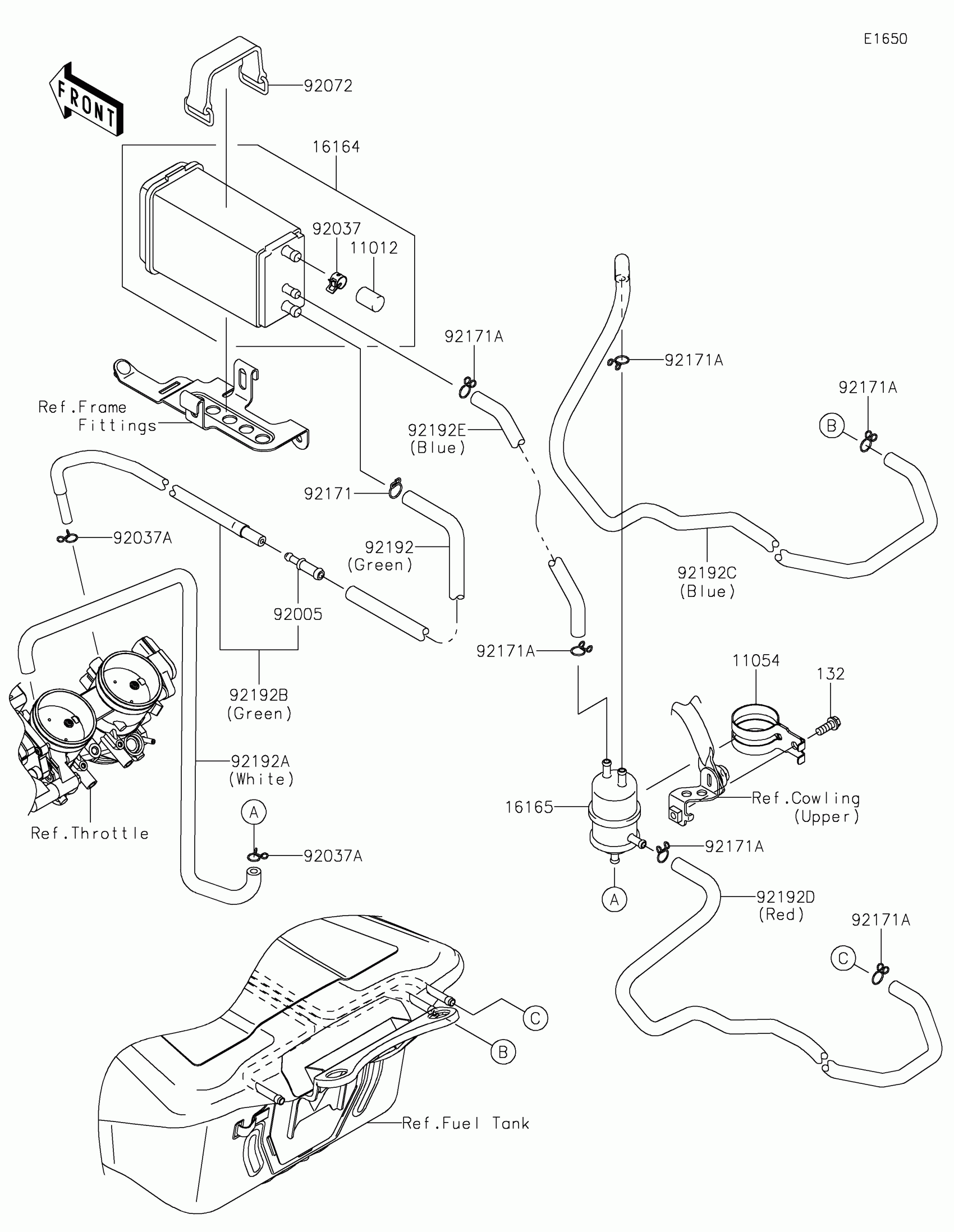

2021 Kawasaki CONCOURS®14 ABS Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CANISTER

11012-1388

1
Out of stock

11054

BRACKET,SEPARATOR

11054-1193

1

$14.75

In stock

16164

CANISTER

16164-0017

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

92005

FITTING

92005-0032

1
Out of stock

92037

CLAMP,CANISTER

92037-1512

1
Out of stock

92037A

CLAMP

92037-1712

1
Out of stock

92072

BAND

92072-0050

1
Out of stock

92171

CLAMP

92171-0574

1

$2.51

In stock

92171A

CLAMP

92171-0718

1
Out of stock

92192

TUBE,CANISTER-FITTING,GREEN

92192-0417

1
Out of stock

92192A

TUBE,SEPARATOR-THROBO #3,WHITE

92192-0418

1
Out of stock

92192B

TUBE,THROBO #4-GRN TUBE

92192-0420

1
Out of stock

92192C

TUBE,SEPARATOR-TANK,BLUE

92192-0865

1
Out of stock

92192D

TUBE,TANK-SEPARATOR SIDE,RED

92192-0866

1
Out of stock

92192E

TUBE,CANISTER-SEPARATOR,BLUE

92192-0878

1
Out of stock

132

1

$1.21

In stock
