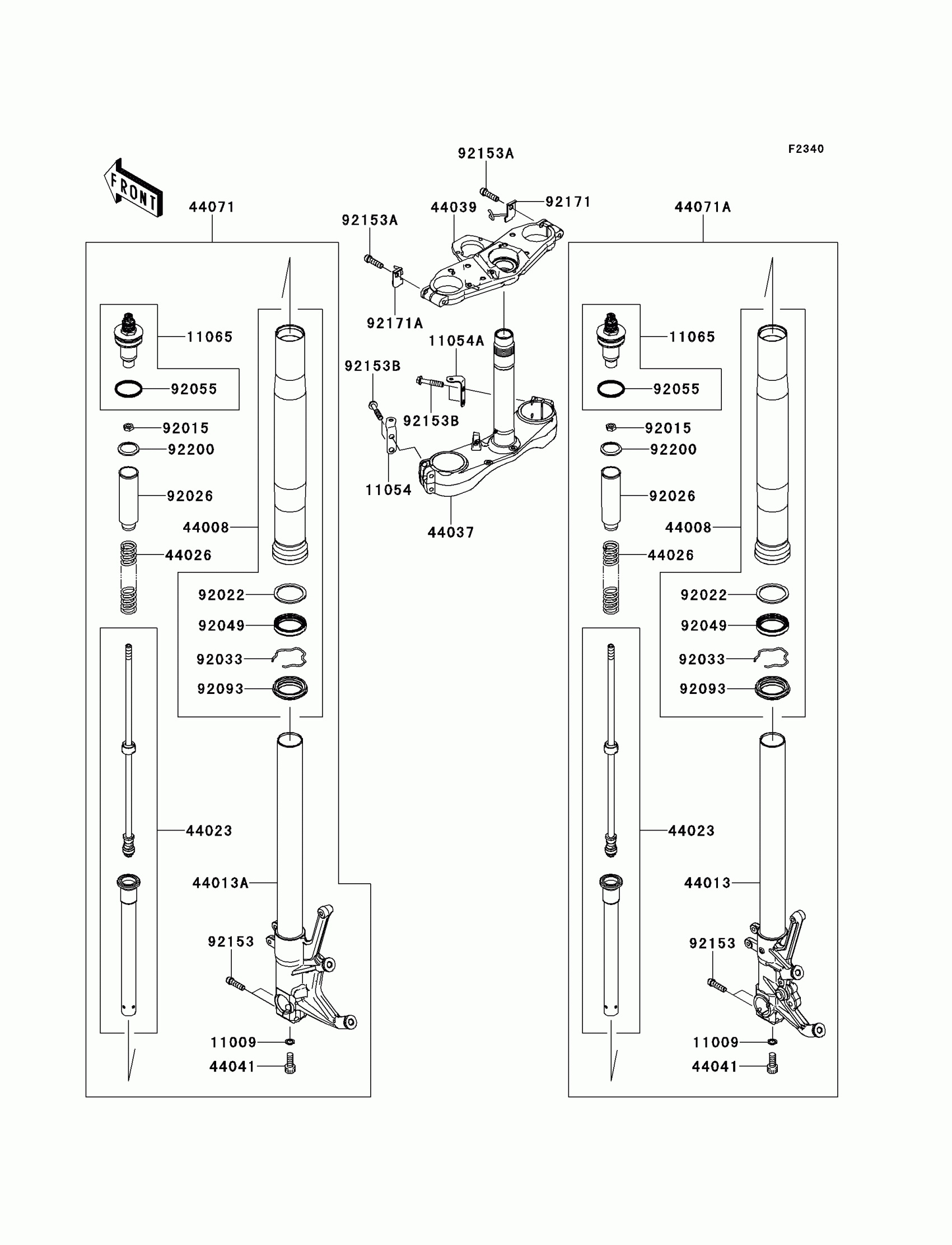

Kawasaki CONCOURS® 14 ABS Front Fork Diagram

#

Description
Price

11009

GASKET,10.5X15X1.5

11009-1325

Unavailable

11054

BRACKET,HARNESS CLAMP,LH

11054-0480

$10.30

11054A

BRACKET,UNDER BRACKET,RH

11054-1223

$10.30

11065

CAP,FORK,GRAY

11065-0337-11G

$190.19

44008

PIPE-FORK OUTER,SILVER

44008-0052-KX

$502.59

44013

PIPE-FORK INNER,RH,F.S.BLACK

44013-0150-18R

$618.03

44013A

PIPE-FORK INNER,LH,F.S.BLACK

44013-0155-18R

$618.03

44023

CYLINDER-SET-FORK

44023-0081

$431.28

44026

SPRING-FRONT FORK

44026-0107

$157.31

44037

HOLDER-FORK UNDER

44037-0061

$730.28

44039

HOLDER-FORK UPPER,P.SILVER

44039-0052-458

$331.74

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

$6.57

44071

DAMPER-ASSY,FORK,LH,SILVER

44071-5106

$1,183.68

44071A

DAMPER-ASSY,FORK,RH,SILVER

44071-5107

$1,183.68

92015

NUT

92015-1795

$5.52

92022

WASHER

92022-1299

$8.58

92026

SPACER,FORK

92026-0045

$14.02

92033

RING-SNAP

92033-1077

$4.96

92049

SEAL-OIL,FORK OUTER TUBE

92049-1522

$23.16

92055

RING-O,FORK,AIR TUBE

92055-1333

$6.00

92093

SEAL,FORK OUTER TUBE

92093-1480

$18.58

92153

BOLT,SOCKET,8X40

92153-0006

$3.26

92153A

BOLT,SOCKET,8X40

92153-0506

$7.57

92153B

BOLT,FLANGED,8X40

92153-1884

$10.30

92171

CLAMP,CABLE,RH

92171-1632

$13.60

92171A

CLAMP,CABLE,LH

92171-1634

$13.60

92200

WASHER

92200-0085

$7.63
