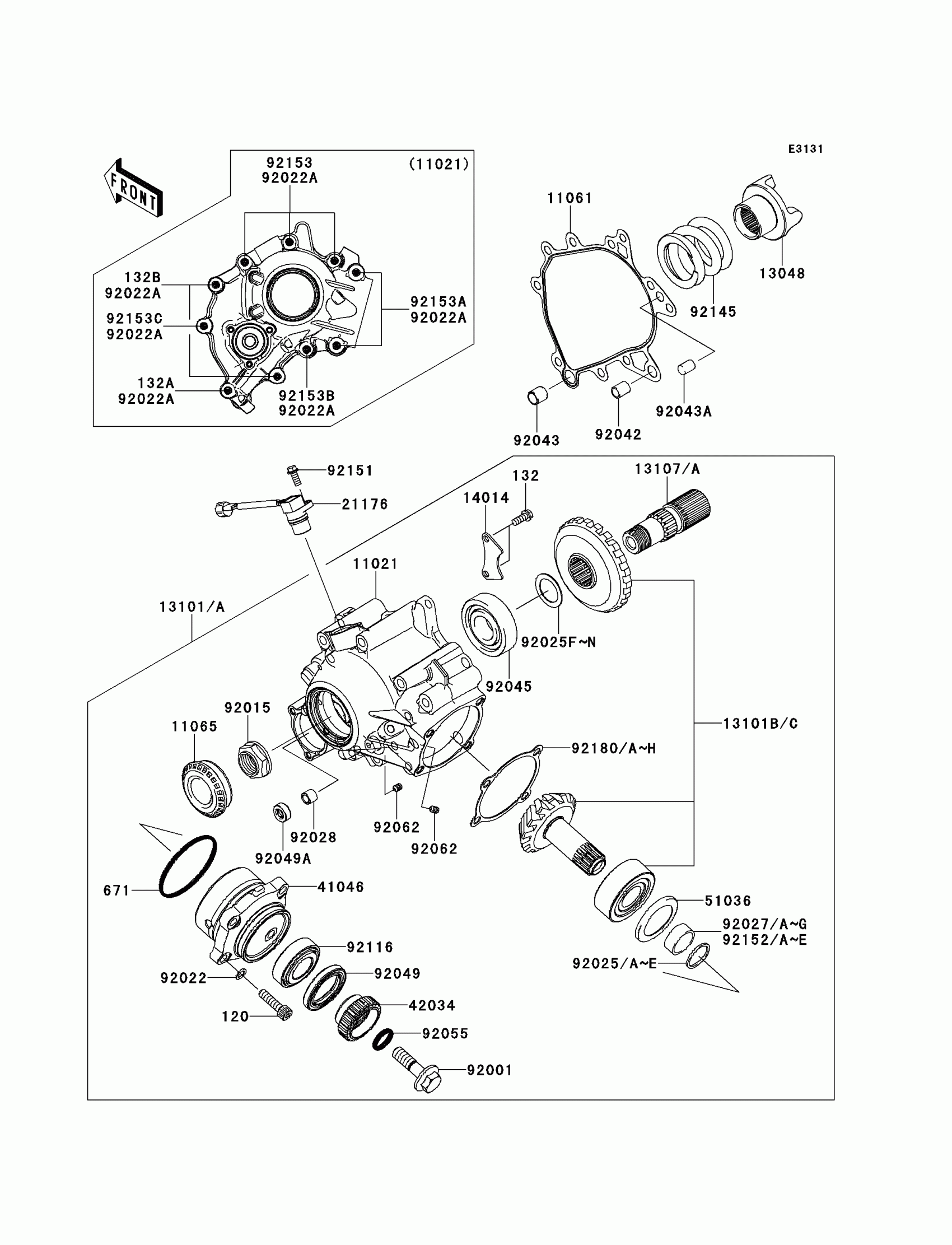

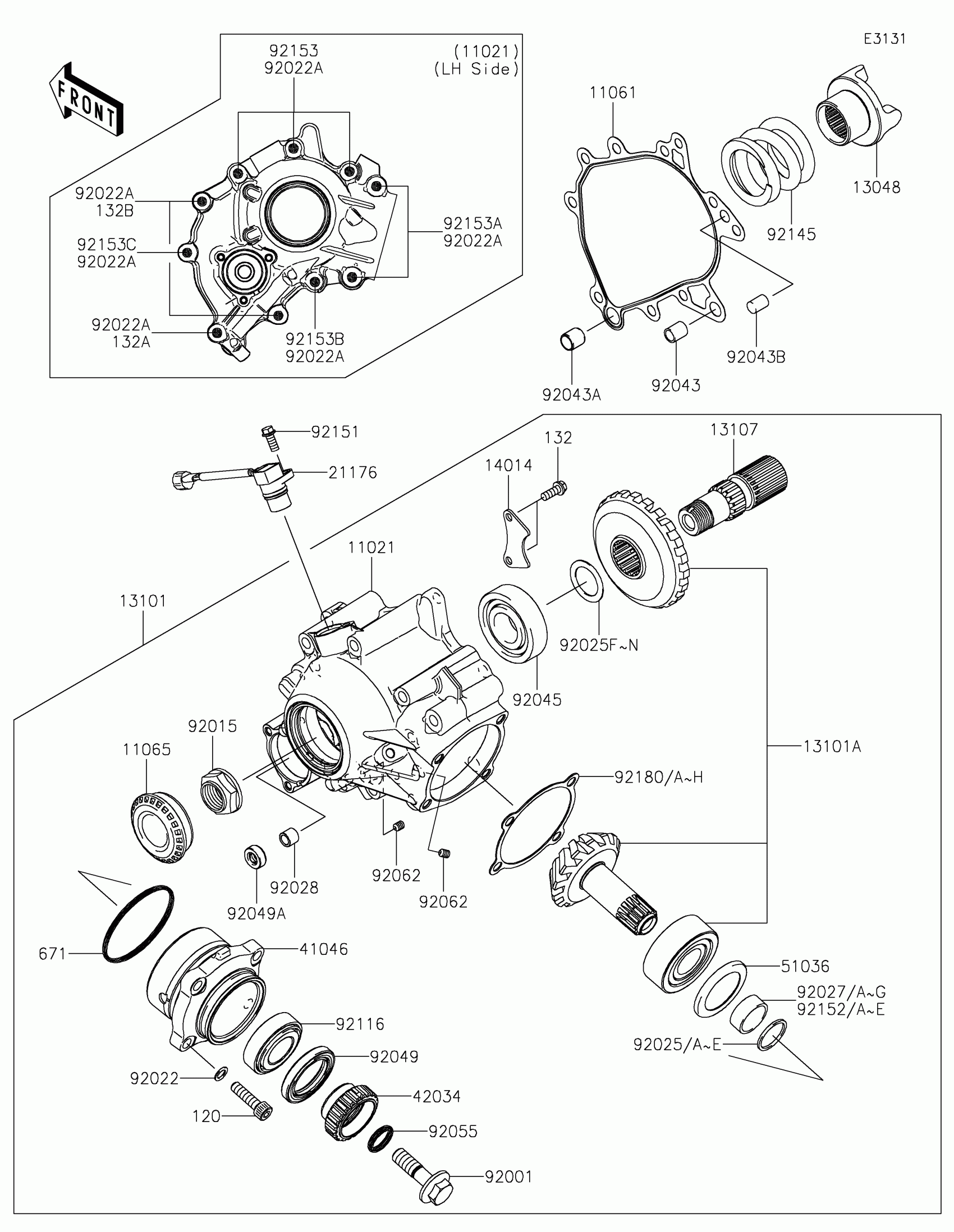

Kawasaki Concours 14 ABS Front Bevel Gear Diagram

#

Description
Price

11021

CASE-ASSY,FR GEAR,P.SILVER

11021-0014-458

$758.54

11061

GASKET,FR GEAR CASE

11061-0310

$28.84

11065

CAP

11065-0165

$26.91

13048

CAM-DAMPER

13048-0004

$74.54

13101A

GEAR-ASSY,FR,P.SILVER

13101-0098-458

Unavailable

13101C

GEAR-ASSY,BEVEL,FR

13101-5092

$1,134.84

13107A

SHAFT,DRIVE

13107-0201

$162.70

14014

PLATE-POSITION

14014-0031

$7.37

21176

SENSOR,SPEED

21176-0037

$160.59

41046

HOUSING-BEARING

41046-0016

$154.39

42034

COUPLING,FR,DRIVEN

42034-0046

$129.88

51036

CUP

51036-1002

$6.22

92001

BOLT,FLANGED,12X42

92001-1169

$22.29

92015

NUT,24MM

92015-1554

$24.41

92022

WASHER,8.5X13X1

92022-1028

$3.92

92022A

WASHER,8.5X16X1.2

92022-1582

$0.96

92025

SHIM,25.2X29.8X1.70

92025-1072

Unavailable

92025A

SHIM,25.2X29.8X1.72

92025-1073

Unavailable

92025B

SHIM,25.2X29.8X1.74

92025-1074

Unavailable

92025C

SHIM,25.2X29.8X1.76

92025-1075

Unavailable

92025D

SHIM,25.2X29.8X1.78

92025-1076

Unavailable

92025E

SHIM,25.2X29.8X1.80

92025-1077

Unavailable

92025F

SHIM,25.3X36X0.15

92025-1688

Unavailable

92025G

SHIM,25.3X36X0.50

92025-1689

Unavailable

92025H

SHIM,25.3X36X0.60

92025-1690

Unavailable

92025I

SHIM,25.3X36X0.70

92025-1691

Unavailable

92025J

SHIM,25.3X36X0.80

92025-1692

Unavailable

92025K

SHIM,25.3X36X0.90

92025-1693

Unavailable

92025L

SHIM,25.3X36X1.00

92025-1694

Unavailable

92025M

SHIM,25.3X36X1.10

92025-1695

Unavailable

92025N

SHIM,25.3X36X1.20

92025-1696

Unavailable

92027

COLLAR,25.2X29.8X10.4

92027-1403

Unavailable

92027A

COLLAR,25.2X29.8X10.5

92027-1404

Unavailable

120

BOLT-SOCKET,8X30

120CB0830

$4.69

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

132A

BOLT-FLANGED-SMALL,8X50

132BB0850

$5.25

132B

BOLT-FLANGED-SMALL,8X35

132BD0835

$4.45

671

O RING,69.4X3.1

671D2570

$5.65

92027B

COLLAR,25.2X29.8X10.6

92027-1405

Unavailable

92027C

COLLAR,25.2X29.8X10.7

92027-1406

Unavailable

92027D

COLLAR,25.2X29.8X10.8

92027-1407

Unavailable

92027E

COLLAR,25.2X29.8X10.9

92027-1408

Unavailable

92027F

COLLAR,25.2X29.8X11.0

92027-1409

Unavailable

92027G

COLLAR,25.2X29.8X11.1

92027-1410

Unavailable

92028

BUSHING,8X12X10

92028-1750

$7.27

92042

PIN,DOWEL,12X14

92042-031

$6.57

92043

PIN,11.5X14X14

92043-1279

$5.00

92043A

PIN,10X14

92043-1506

$3.32

92045

BEARING-BALL,6305-13

92045-0063

$41.98

92049

SEAL-OIL,TC35527

92049-1038

$17.95

92049A

SEAL-OIL

92049-1566

$7.65

92055

RING-O,18.7X3.5

92055-0130

$2.61

92062

NOZZLE,6X8,GREEN

92062-1078

$4.69

92116

BEARING-ROLLER,HI-CAP30205

92116-1062

$36.32

92145

SPRING,CAM DAMPER

92145-0430

$60.24

92151

BOLT,FLANGED,6X14

92151-1755

$2.34

92152

COLLAR,25.2X29.8X11.2

92152-0480

$20.37

92152A

COLLAR,25.2X29.8X11.3

92152-0481

Unavailable

92152B

COLLAR,25.2X29.8X11.4

92152-0482

Unavailable

92152C

COLLAR,25.2X29.8X11.5

92152-0483

Unavailable

92152D

COLLAR,25.2X29.8X11.6

92152-0484

Unavailable

92152E

COLLAR,25.2X29.8X11.7

92152-0485

Unavailable

92153

BOLT,8X95

92153-0434

$3.73

92153A

BOLT,8X92

92153-1874

$10.30

92153B

BOLT,FLANGED,8X95

92153-1953

$4.20

92153C

BOLT,FLANGED-SMALL,8X35

92153-1954

$2.97

92180

SHIM,T=0.1

92180-0227

Unavailable

92180A

SHIM,T=0.15

92180-0228

Unavailable

92180B

SHIM,T=0.5

92180-0229

Unavailable

92180C

SHIM,T=0.6

92180-0230

Unavailable

92180D

SHIM,T=0.7

92180-0231

Unavailable

92180E

SHIM,T=0.8

92180-0232

Unavailable

92180F

SHIM,T=0.9

92180-0233

Unavailable

92180G

SHIM,T=1.0

92180-0234

$15.20

92180H

SHIM,T=1.2

92180-0235

Unavailable
