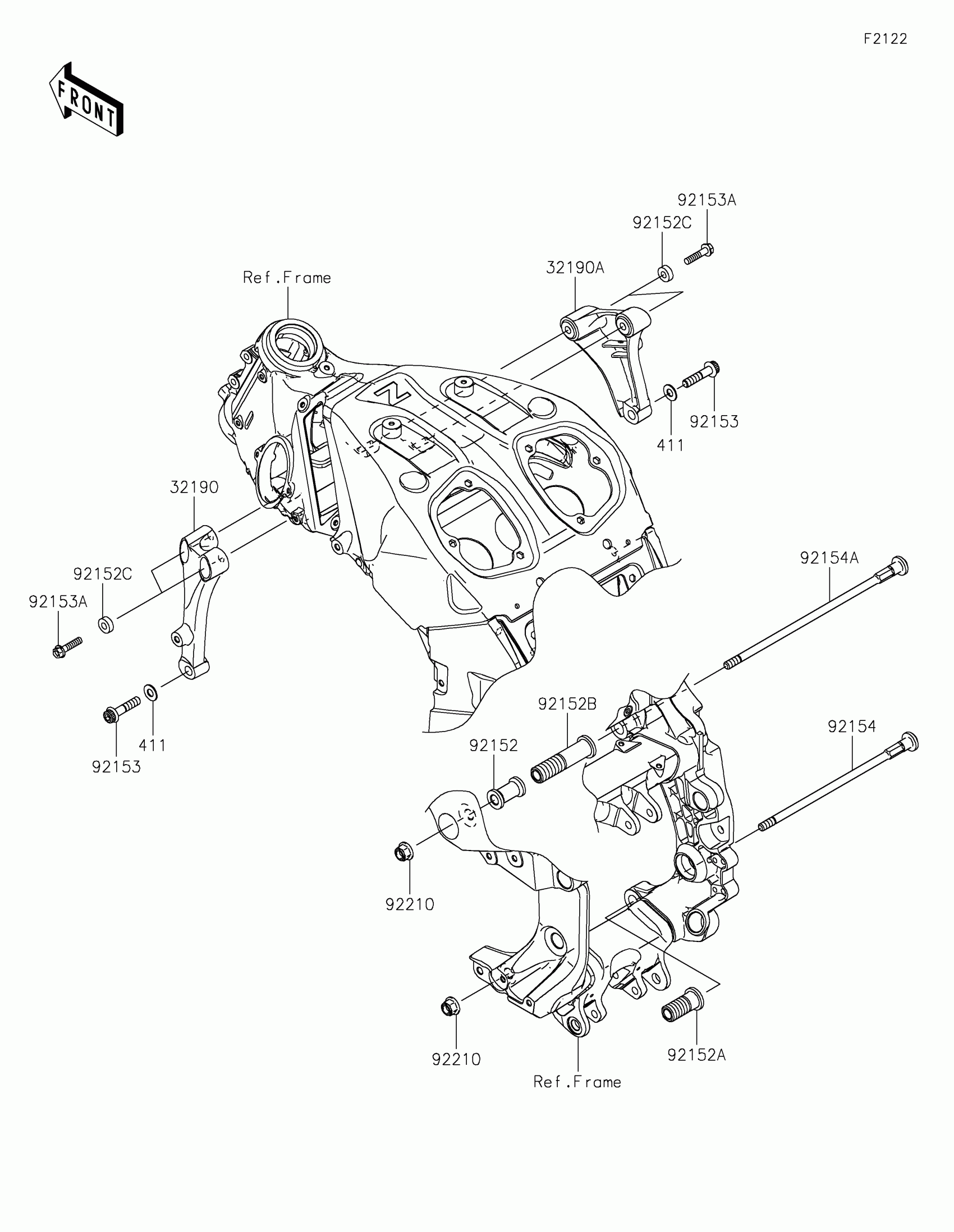

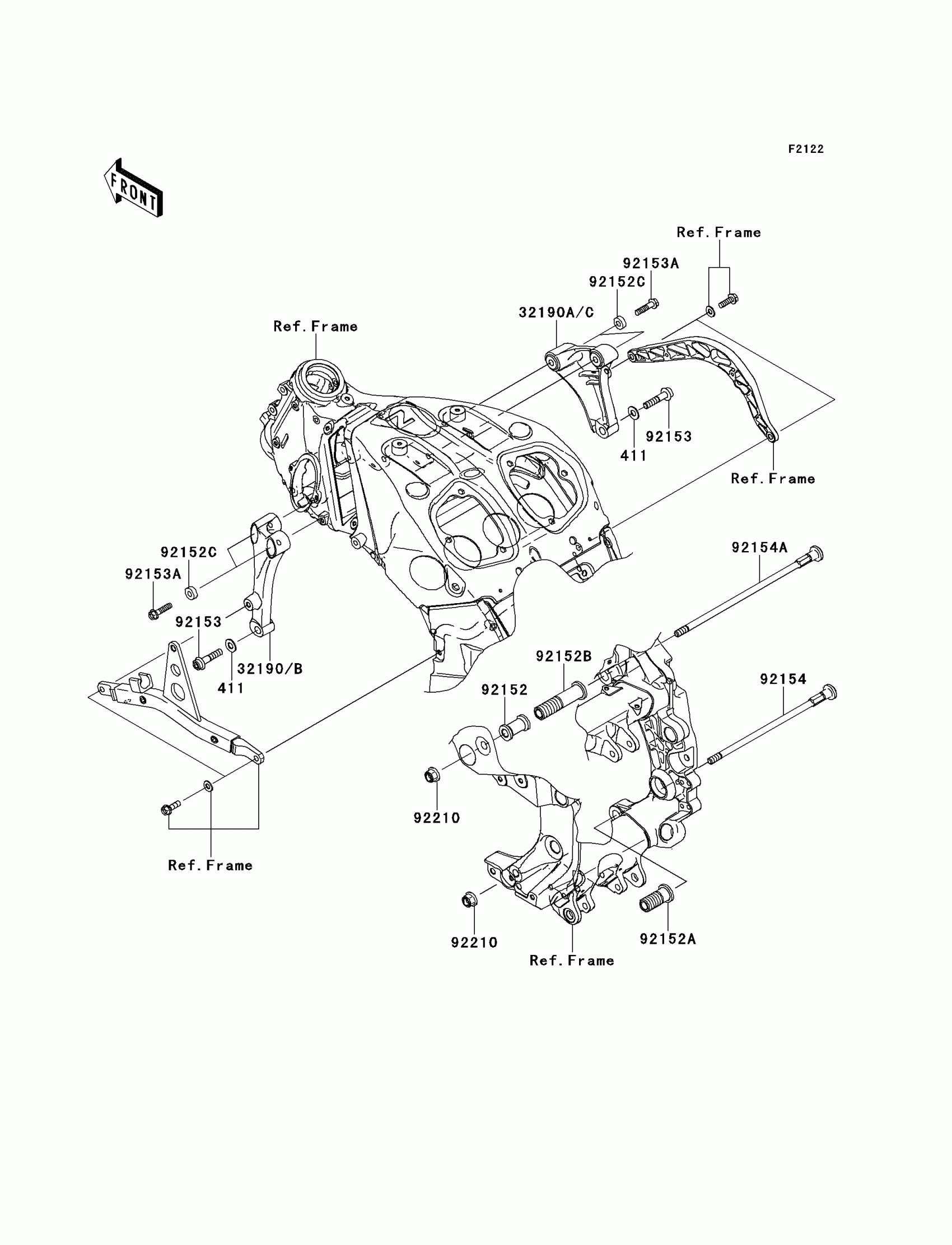

Kawasaki Concours®14 ABS Engine Mount Diagram

Description

Price

32190

BRACKET-ENGINE,FR,LH

32190-0424

$66.83

32190A

BRACKET-ENGINE,FR,RH

32190-0425

$66.83

92152

COLLAR,L=43.2

92152-0368

$22.01

92152A

COLLAR,ADJUST,RR,LWR

92152-0370

$46.79

92152B

COLLAR,ADJUST,RR,UPP

92152-0371

$66.69

92152C

COLLAR,8.8X20X7

92152-0502

$3.86

92153

BOLT,SOCKET,10X45

92153-1769

$7.75

92153A

BOLT,FLANGED,8X35

92153-1770

$3.90

92154

BOLT,SOCKET,12X268

92154-0089

$30.15

92154A

BOLT,SOCKET,12X312

92154-0090

$30.15

92210

NUT,LOCK,FLANGED,12MM

92210-0287

$5.33

411

WASHER-PLAIN,10MM

411AA1000

$0.96
