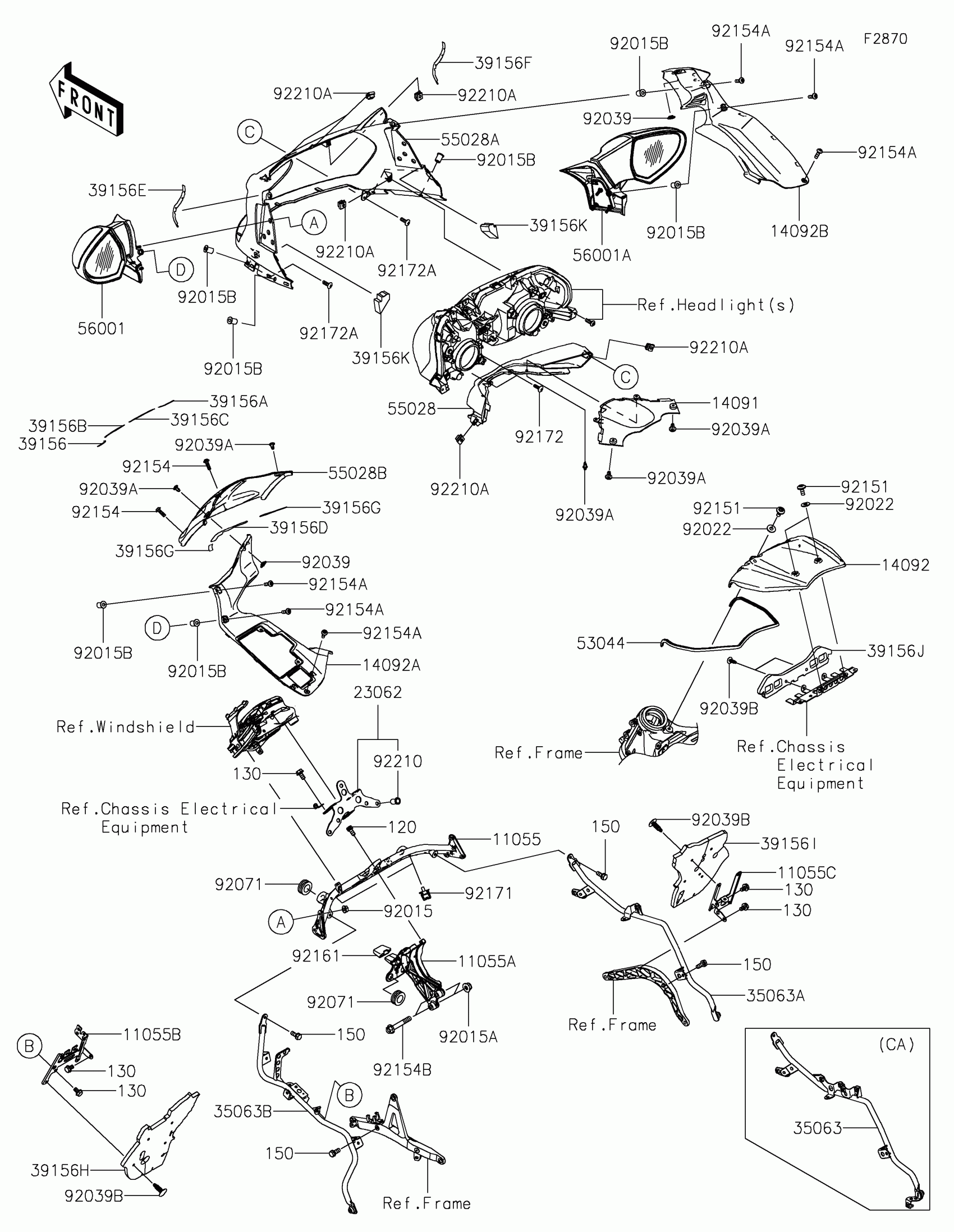

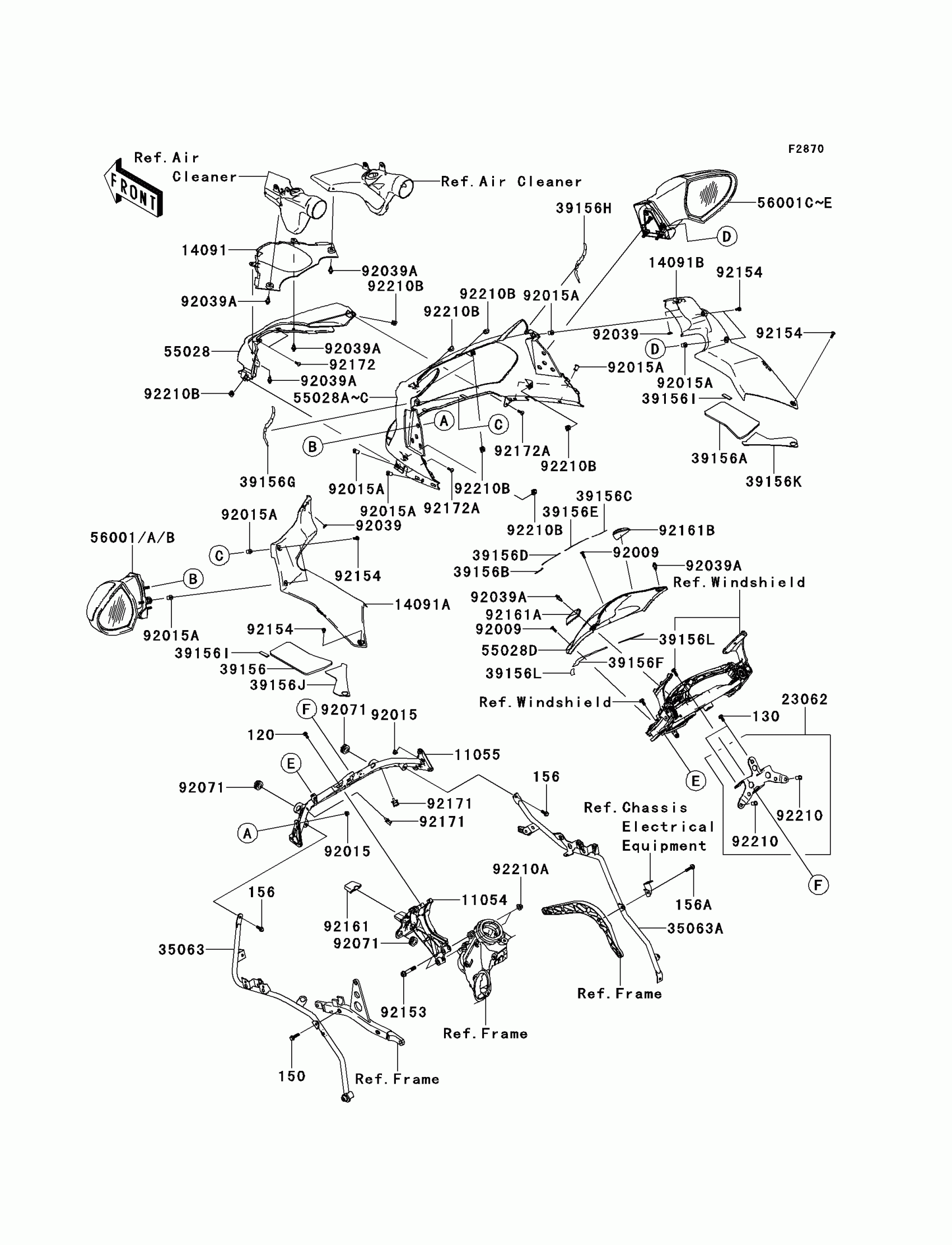

Kawasaki Concours 14 ABS Cowling(Upper) Diagram

#

Description
Price

11054

BRACKET,COWLING

11054-0741

Unavailable

11055

BRACKET,MIRROR

11055-0143

$191.67

14091

COVER,SHROUD,CNT

14091-0859

$37.78

14091A

COVER,INNER,LH

14091-0906

$126.94

14091B

COVER,INNER,RH

14091-0907

$126.94

23062

BRACKET-COMP,METER

23062-0036

$173.64

35063

STAY,COWLING,LH

35063-0471

$275.61

35063A

STAY,COWLING,RH

35063-0472

$275.61

39156

PAD,INNER COWLING,LH

39156-0293

$9.62

39156A

PAD,INNER COWLING,RH

39156-0295

$9.62

39156B

PAD,UPP COWLING,CNT,LH

39156-0378

$6.68

39156C

PAD,UPP COWLING,CNT,RH

39156-0379

$6.68

39156D

PAD,UPP COWLING,CNT,LH

39156-0380

$7.31

39156E

PAD,UPP COWLING,CNT,RH

39156-0381

$7.31

39156F

PAD,UPP COWLING,CNT

39156-0382

$20.04

39156G

PAD,UPP COWLING,LH

39156-0384

$24.31

39156H

PAD,UPP COWLING,RH

39156-0385

$7.31

39156I

PAD,INNER COWLING

39156-0386

$2.85

39156J

PAD,INNER COWLING,LH

39156-0387

$30.76

39156K

PAD,INNER COWLING,RH

39156-0388

$30.76

39156L

PAD,UPP COWLING,CNT

39156-0398

$2.58

55028

COWLING,INTAKE

55028-0192

$59.21

55028A

COWLING,UPP,M.D.BLACK

55028-0198-17K

$498.29

55028C

COWLING,UPP,C.D.RED

55028-0198-25T

$498.29

55028D

COWLING,UPP,CNT

55028-0210

Unavailable

56001

MIRROR-ASSY,LH,M.D.BLACK

56001-0113-17K

$230.31

56001B

MIRROR-ASSY,LH,C.D.RED

56001-0113-25T

$231.88

56001C

MIRROR-ASSY,RH,M.D.BLACK

56001-0114-17K

$230.31

56001E

MIRROR-ASSY,RH,C.D.RED

56001-0114-25T

$231.88

92009

SCREW,5X16

92009-1909

$2.03

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0048

$4.65

92039A

RIVET

92039-0051

$4.65

92071

GROMMET

92071-1131

$7.77

120

BOLT-SOCKET,6X12

120CA0612

$1.71

130

BOLT-FLANGED,6X12

130BA0612

$1.72

150

BOLT-WS,6X22

150R0622

$4.67

156

BOLT-WP,6X18

156R0618

$3.73

156A

BOLT-WP,6X25

156R0625

$4.76

92153

BOLT,FLANGED,8X50

92153-1877

Unavailable

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92161

DAMPER,HEAD LAMP

92161-0412

$8.68

92161A

DAMPER,UPP COWLING,CNT,LH

92161-0565

$10.59

92161B

DAMPER,UPP COWLING,CNT,RH

92161-0566

$10.59

92171

CLAMP

92171-1665

$2.97

92172

SCREW,TAPPING,5X14

92172-0265

$1.34

92172A

SCREW,5X16

92172-0322

$2.15

92210

NUT,POP,6MM,L=16.5

92210-0324

$5.33

92210A

NUT,CAP,8MM

92210-0325

Unavailable

92210B

NUT,5MM

92210-0351

$5.65
