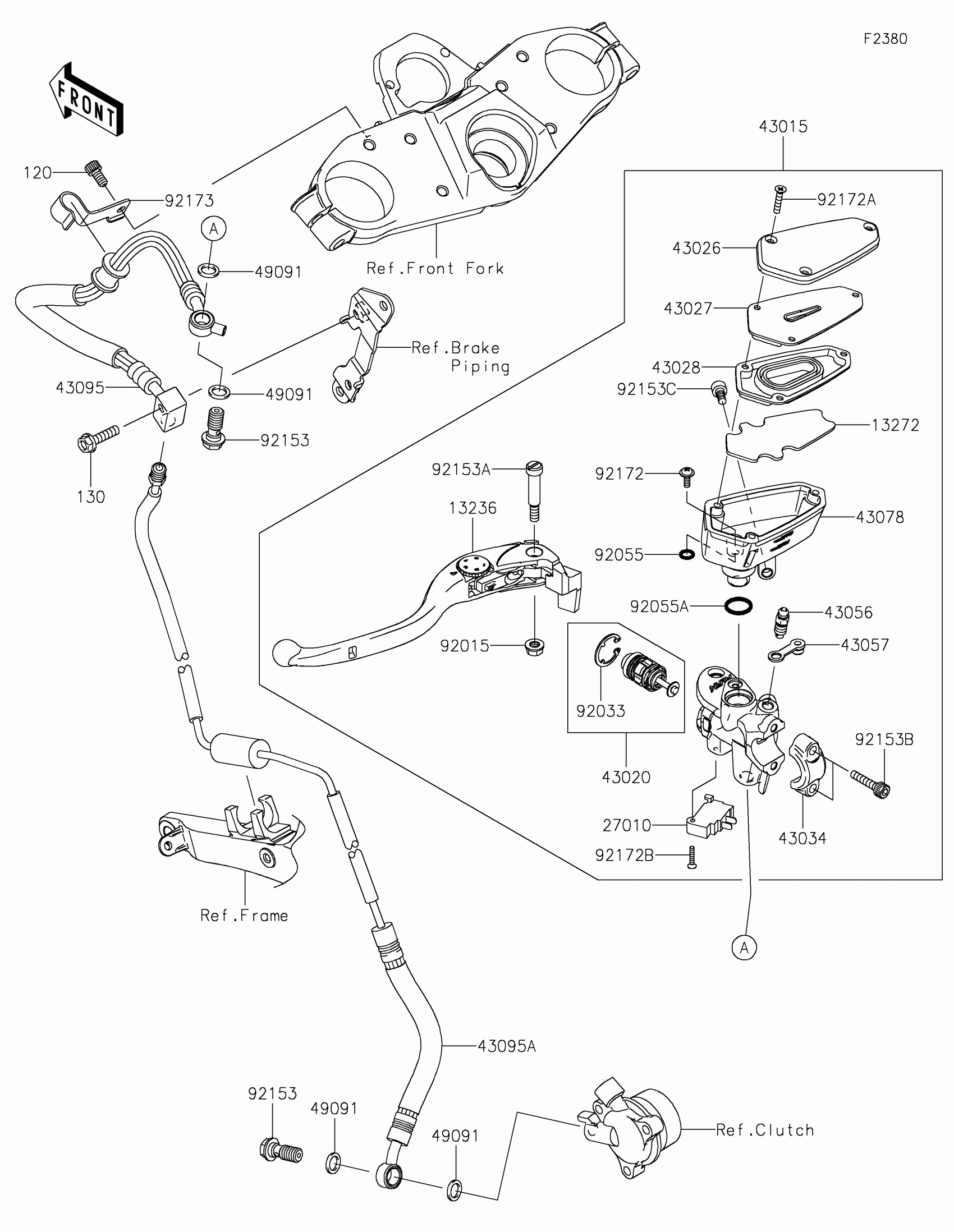

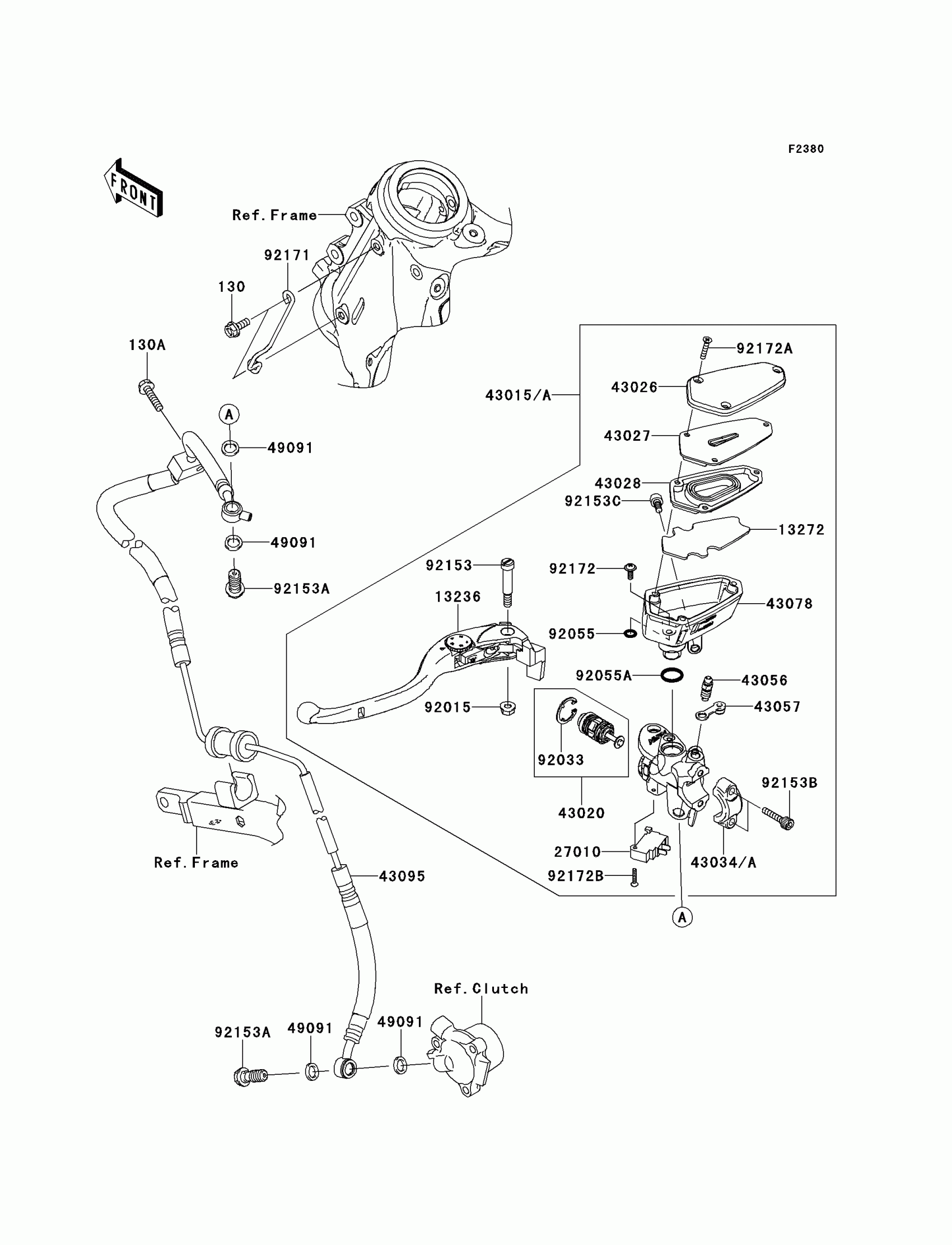

Kawasaki Concours 14 ABS Clutch Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED,6X16

130BA0616

$1.20

130A

BOLT-FLANGED,6X25

130BA0625

$1.20

13236

LEVER-COMP,CLUTCH

13236-0104

$81.42

13272

PLATE

13272-0220

$10.30

27010

SWITCH,CLUTCH

27010-0051

$32.45

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-0085

$456.93

43015A

CYLINDER-ASSY-MASTER,CLUTCH

43015-0149

$429.10

43020

PISTON-COMP-BRAKE

43020-0013

$65.94

43026

CAP-BRAKE

43026-0012

$74.54

43027

PLATE-DIAPHRAGM

43027-0003

$8.35

43028

DIAPHRAGM

43028-0008

$18.40

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0056

$23.08

43034A

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43078

RESERVOIR

43078-0049

$89.55

43095

HOSE-BRAKE,CLUTCH

43095-0298

$168.00

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92033

RING-SNAP

92033-0034

$4.55

92055

RING-O

92055-0137

$3.90

92055A

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92153

BOLT,LEVER

92153-0868

$7.83

92153A

BOLT,OIL,L=23

92153-1419

$3.90

92153B

BOLT,SOCKET,6X22

92153-1518

$3.90

92153C

BOLT,SOCKET,6X12

92153-1853

$7.75

92171

CLAMP,CLUTCH HOSE

92171-0633

$10.30

92172

SCREW

92172-0319

$3.90

92172A

SCREW,4X20

92172-0320

$3.90

92172B

SCREW,3X16

92172-0349

$2.61
