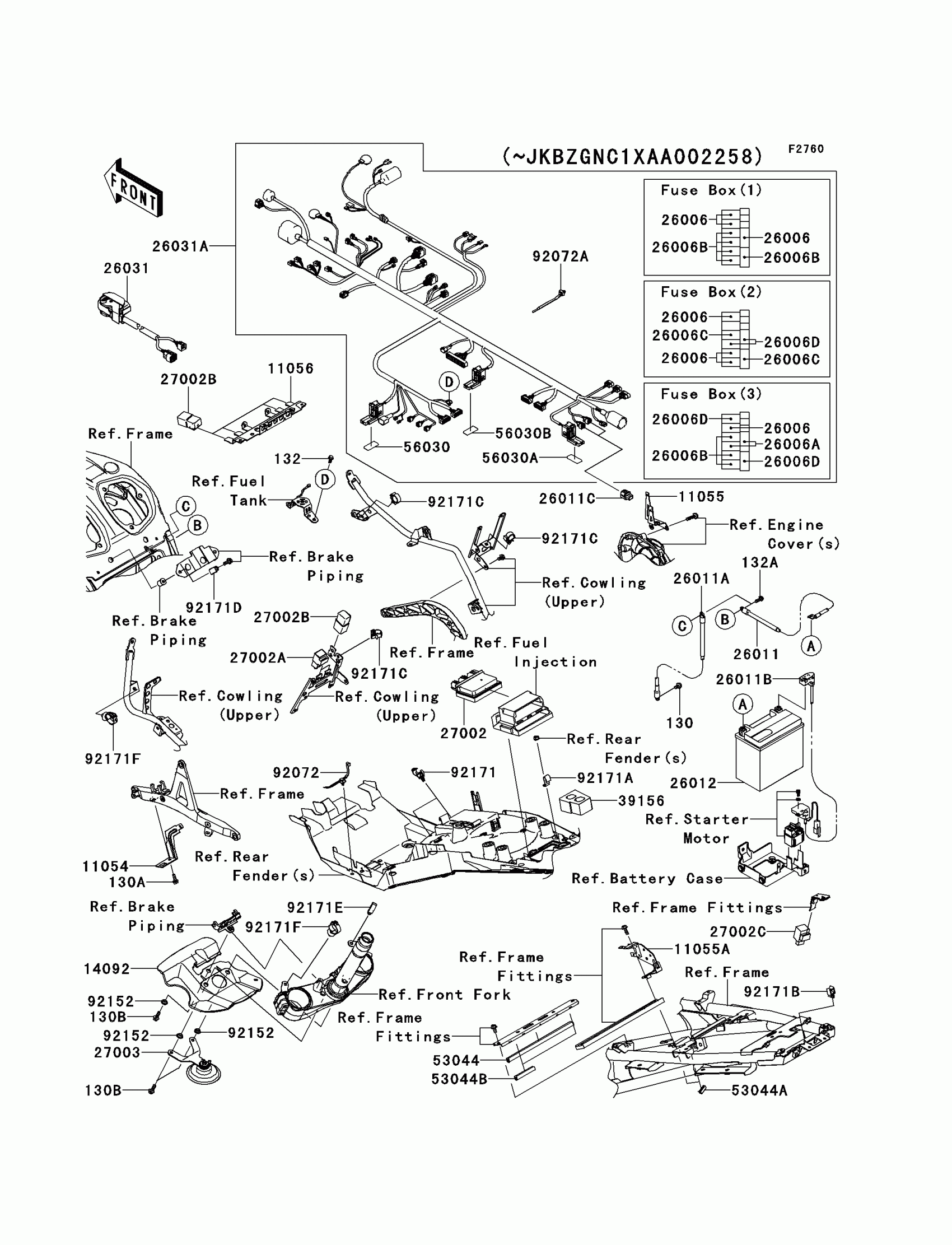

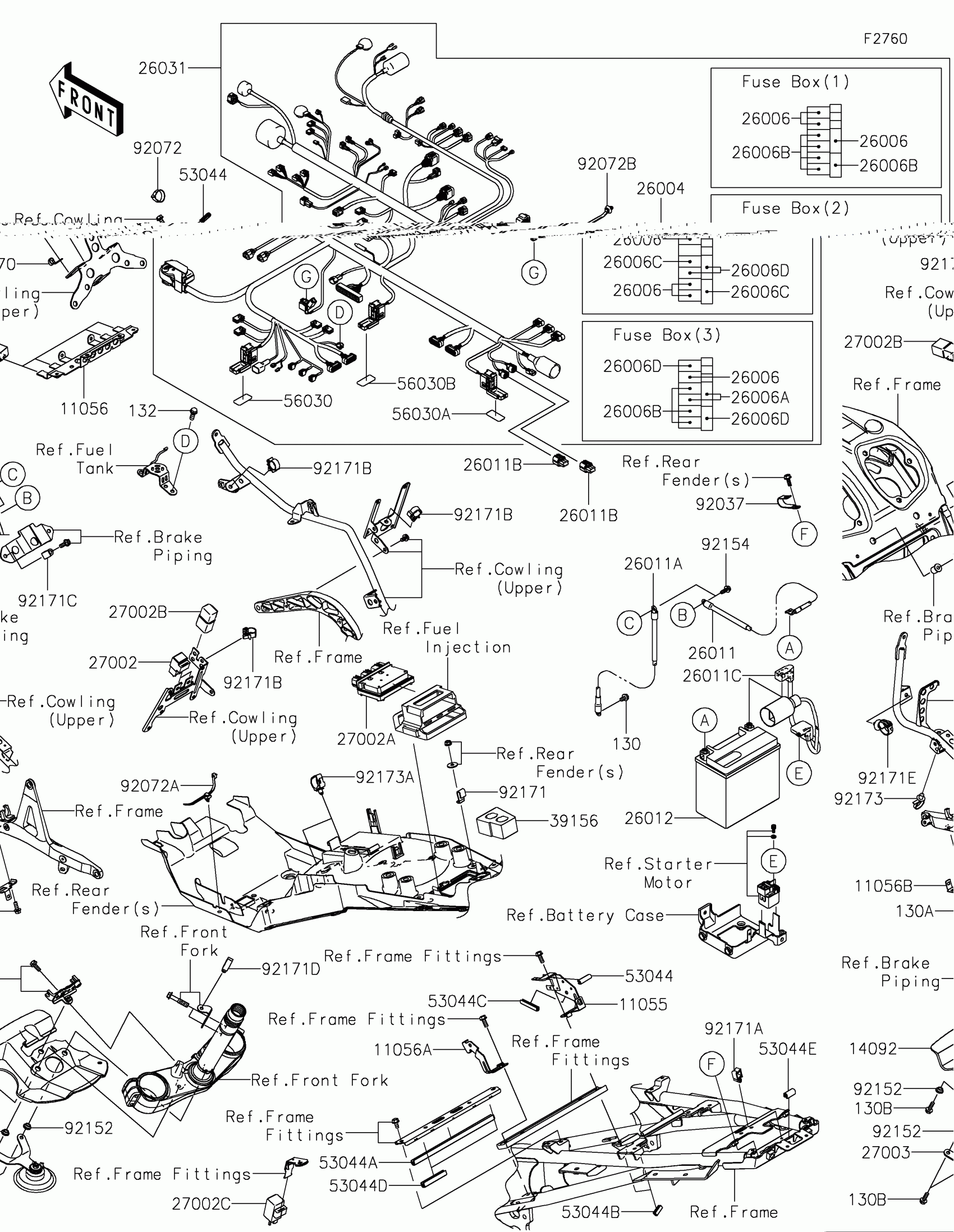

Kawasaki Concours® 14 ABS Chassis Electrical Equipment Diagram

#

Description
Price

11054

BRACKET,SUB FRAME,FR

11054-1131

$9.09

11055

BRACKET,ABS

11055-1818

$11.41

11055A

BRACKET,COUPLER

11055-1824

$23.45

11056

BRACKET,RELAY

11056-0152

$26.40

14092

COVER,RADIATOR

14092-0021

$41.40

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.87

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006C

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$4.87

26006D

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,BATTERY(-)

26011-0087

$29.43

26011A

WIRE-LEAD,BATTERY(-)

26011-0255

$29.75

26011B

WIRE-LEAD,BATTERY(+)

26011-0261

$57.35

26011C

WIRE-LEAD,CONNECTOR COVER

26011-0275

$14.13

26012

BATTERY,FTZ14-BS,12V 14AH

26012-1409

Unavailable

26031

HARNESS,SUB,ABS

26031-0802

$253.17

26031A

HARNESS,MAIN

26031-0909

$1,128.46

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY

27002-0012

$42.21

27002B

RELAY-ASSY

27002-1086

$36.91

27002C

RELAY-ASSY,TURN SIGNAL

27002-1090

$79.17

27003

HORN

27003-0069

$80.64

39156

PAD

39156-0597

$6.89

53044

TRIM,L=220

53044-0022

$13.60

53044A

TRIM,L=22

53044-0031

$3.39

53044B

TRIM,L=60

53044-1249

$6.57

56030

LABEL,FUSE BOX1

56030-0110

$3.87

56030A

LABEL,FUSE BOX2

56030-0312

$4.22

56030B

LABEL,FUSE BOX3

56030-0363

$4.22

92072

BAND

92072-0066

$3.39

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92152

COLLAR,6.5X10X5.6

92152-0445

$4.92

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.80

92171A

CLAMP,HARNESS

92171-0255

$7.57

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,6X18

130BA0618

$1.54

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

92171B

CLAMP

92171-0290

$3.73

92171C

CLAMP

92171-0782

$3.90

92171D

CLAMP

92171-0813

$8.68

92171E

CLAMP

92171-0864

$4.65

92171F

CLAMP

92171-1706

$10.30
