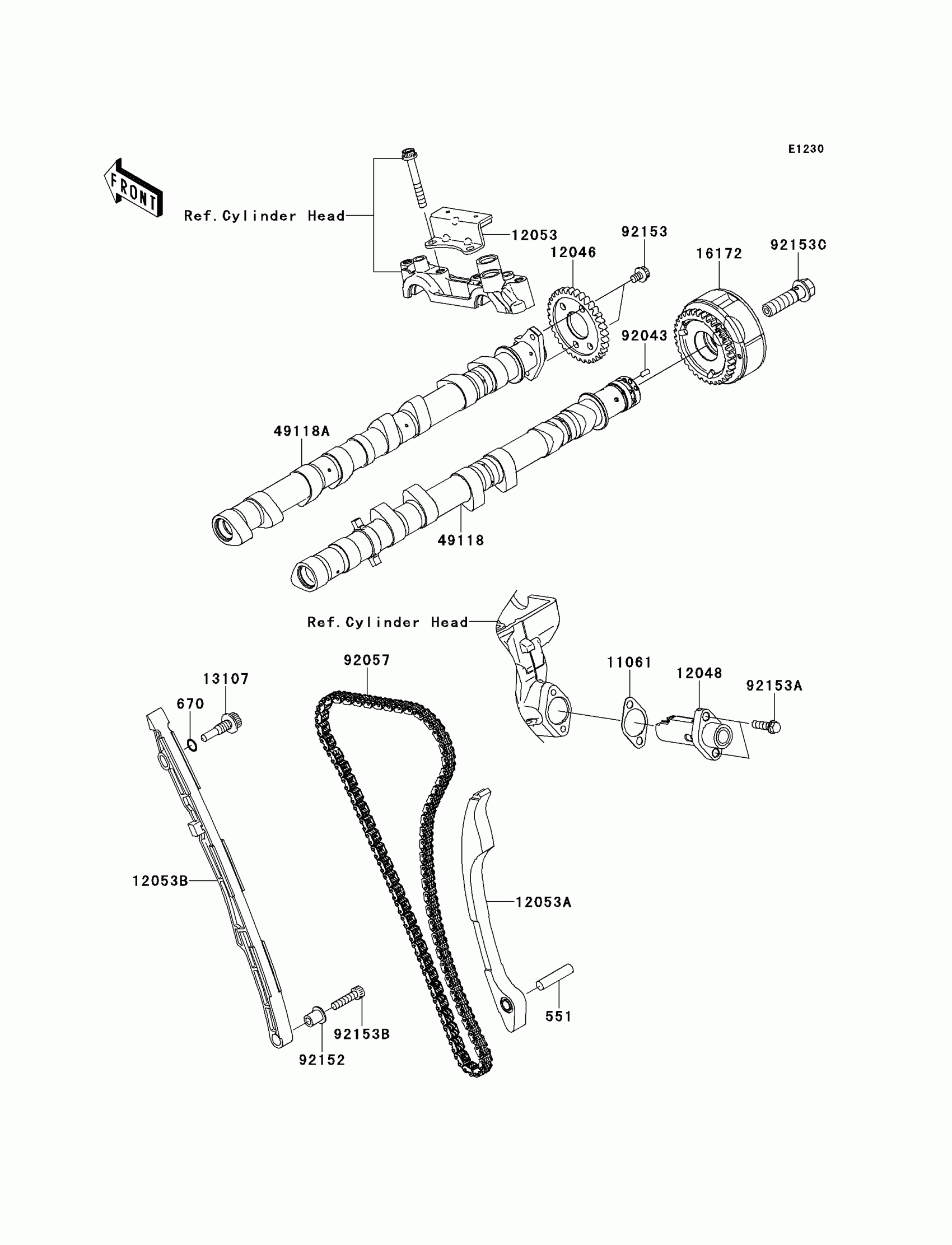

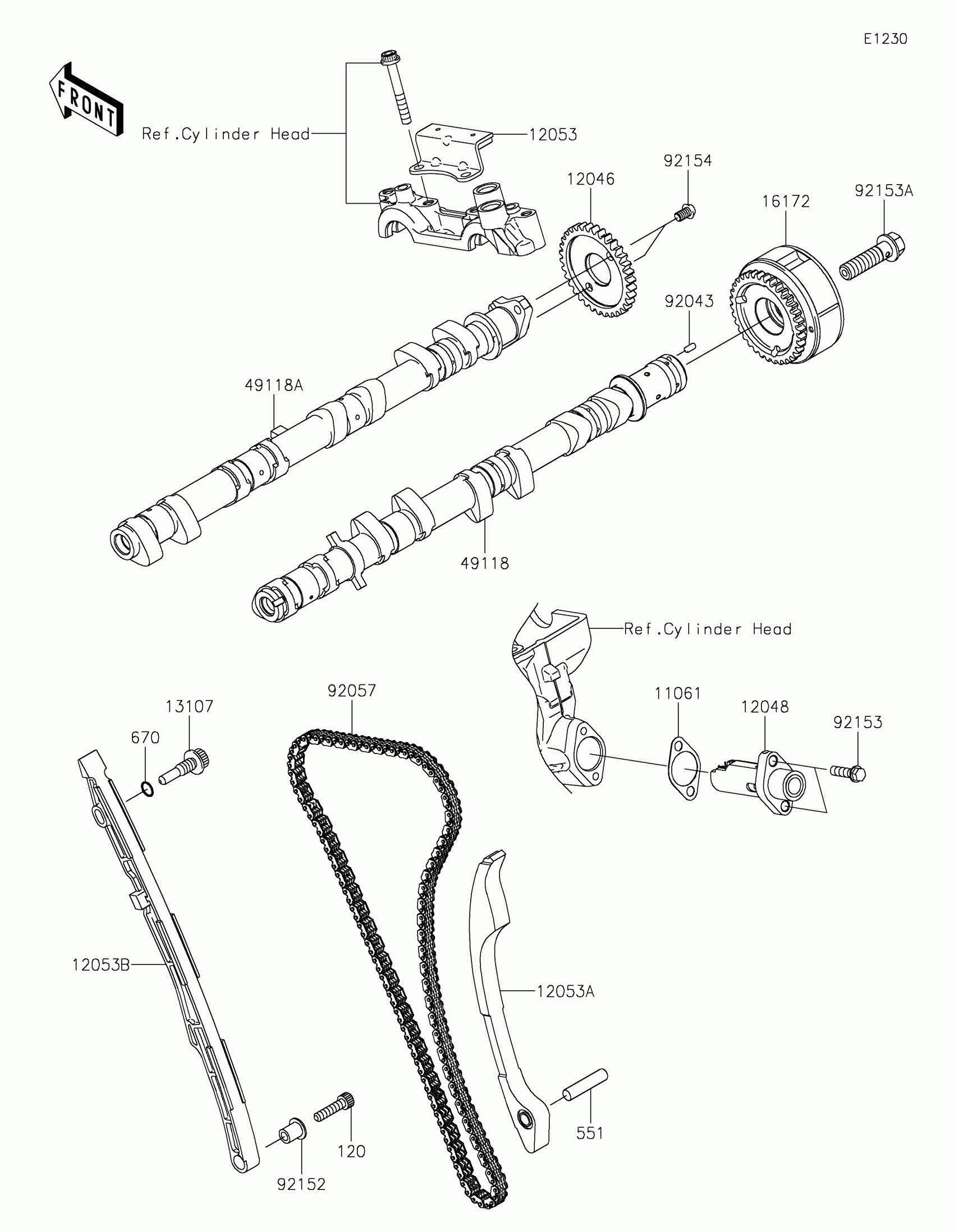

Kawasaki Concours 14 ABS Camshaft(s)/Tensioner Diagram

Description

Price

551

PIN-DOWEL

551A0835

$4.69

670

O RING,9MM

670D1509

$4.69

11061

GASKET,TENSIONER

11061-0299

$7.69

12046

SPROCKET,34T

12046-0057

$90.78

12048

TENSIONER-ASSY,HYDRAULIC

12048-0047

$134.87

12053

GUIDE-CHAIN,UPP

12053-0067

$20.04

12053A

GUIDE-CHAIN,RR

12053-0093

$74.86

12053B

GUIDE-CHAIN,FR

12053-0128

$53.44

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

16172

ACTUATOR,VVT

16172-0011

$505.72

49118

CAMSHAFT-COMP,INTAKE

49118-0092

$767.15

49118A

CAMSHAFT-COMP,EXHAUST

49118-0093

$767.15

92043

PIN,3.665X7.8

92043-0119

$2.15

92057

CHAIN,92RH2015-130M

92057-0109

$113.56

92152

COLLAR

92152-0413

$8.68

92153

BOLT,FLANGED,6X8

92153-0455

$2.55

92153A

BOLT,FLANGED-SMALL,6X22

92153-1560

$2.15

92153B

BOLT,SOCKET,6X25

92153-1561

$2.44

92153C

BOLT,FLANGED,11X40

92153-3733

$25.46
