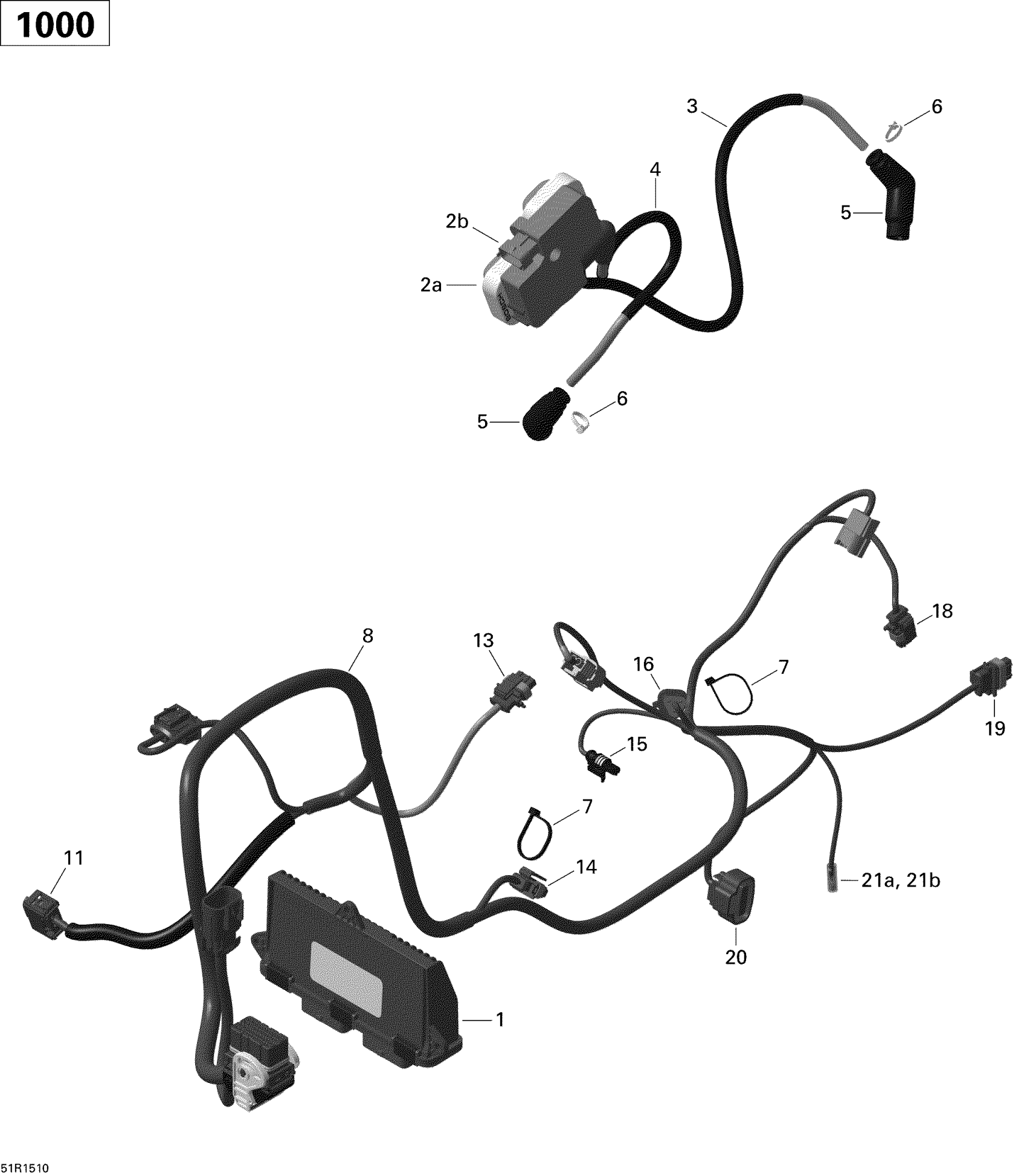

Can-Am Commmander 1000_LTD, 2015 Engine Harness And Electronic Module _51R1510 Diagram

#

Description
Price

1

ECM Connector

420266963

$1,269.99

2a

Ignition Coil

278001546

$148.48

2b

Housing

710000568

$10.51

3

Spark Plug Cable, 790 mm, Rear

420665333

$52.96

4

Spark Plug Cable, 790 mm, Rear

420665333

$52.96

5

Spark Plug Connector

420265248

$30.57

6

Tie Rap

420866710

$5.00

7

Tie Rap

420866714

$1.79

8

Engine Wiring Harness | Includes 9 to 17

420666333

$640.27

11

Housing

710003731

$7.15

13

Male Housing, 3 Circuits

278000997

$17.88

14

Male Housing, 2 Circuits

278001005

$17.88

15

Male Housing, 1 Circuit

278001012

$14.52

16

Male Housing

278002378

$12.52

18

Male Housing, 2 Circuits

278001005

$17.88

19

Male Housing, 3 Circuits

278000997

$17.88

20

Male Housing, 4 Circuits

710000329

$14.34

21a

Insulated Sheath

278001007

$3.12

21b

Female Terminal | DS 650 X

278001009

$2.93
