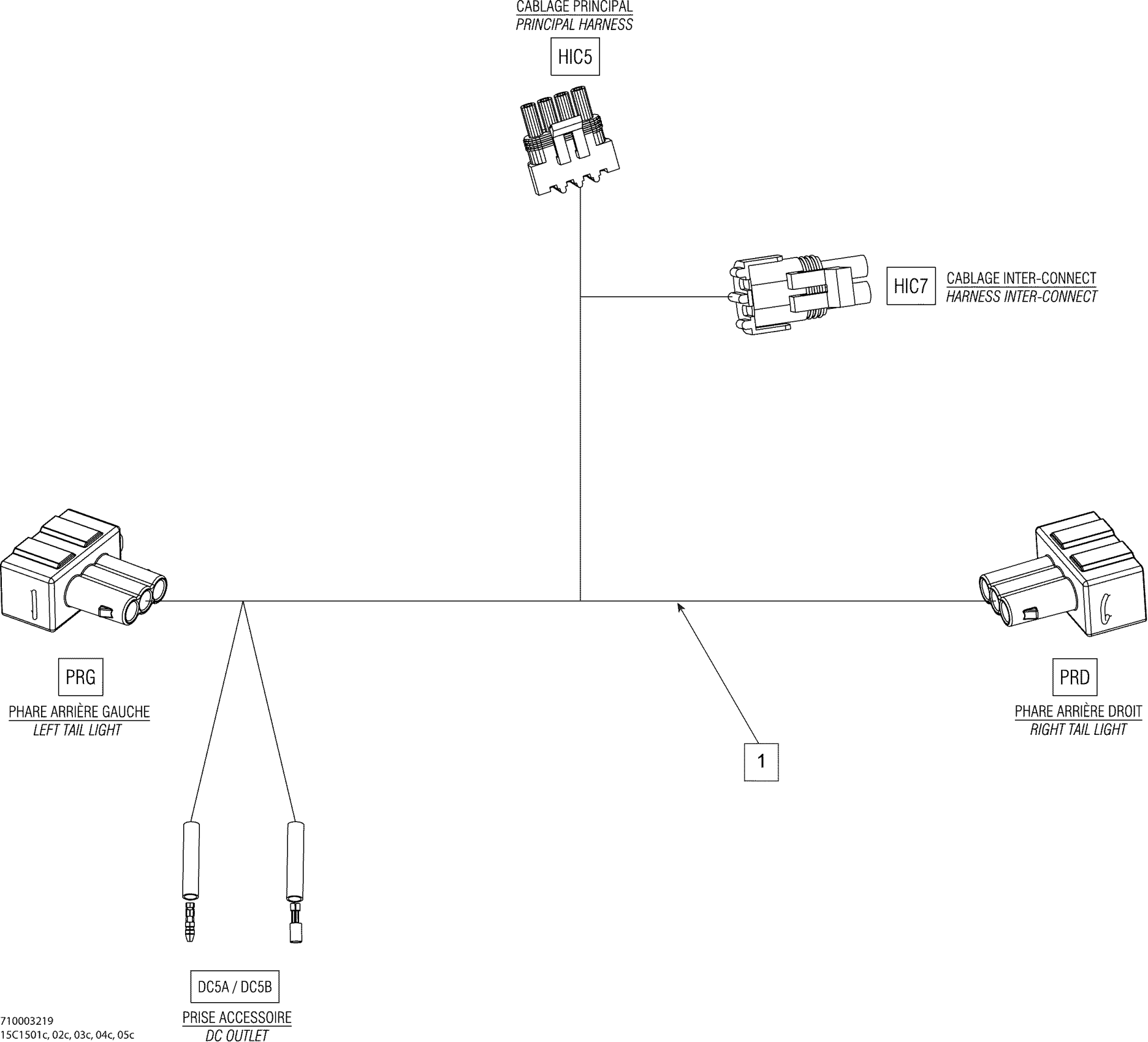

Can-Am Commmander 1000_LTD, 2015 Electrical Harness Rear, NA_Inter_15C1503c Diagram

Description

Price

Rear Harness | Except Europe

710003219

$152.28

DC5A

Insulated Sheath

278001008

$3.20

DC5A

Female Terminal

278002261

$6.20

DC5B

Insulated Sheath

278001007

$3.22

DC5B

Female Terminal

710000421

$5.46

HIC5

Male Housing, 4 Circuits

278000395

$15.02

HIC5

Wire Seal

278001065

$6.03

HIC5

Female Terminal

278000223

$2.55

HIC7

Male Connector, 2 Circuits

278000220

$11.02

HIC7

Wire Seal

278000218

$3.48

HIC7

Female Terminal

409007300

$0.36

PRD

Connector, 3 Positions

710003167

$9.22

PRD

Seal

415128501

$1.51

PRD

Female Terminal

278000998

$3.48

PRG

Connector, 3 Positions

710003167

$9.22

PRD

Seal

415128501

$1.51

PRG

Female Terminal

278000998

$3.48
