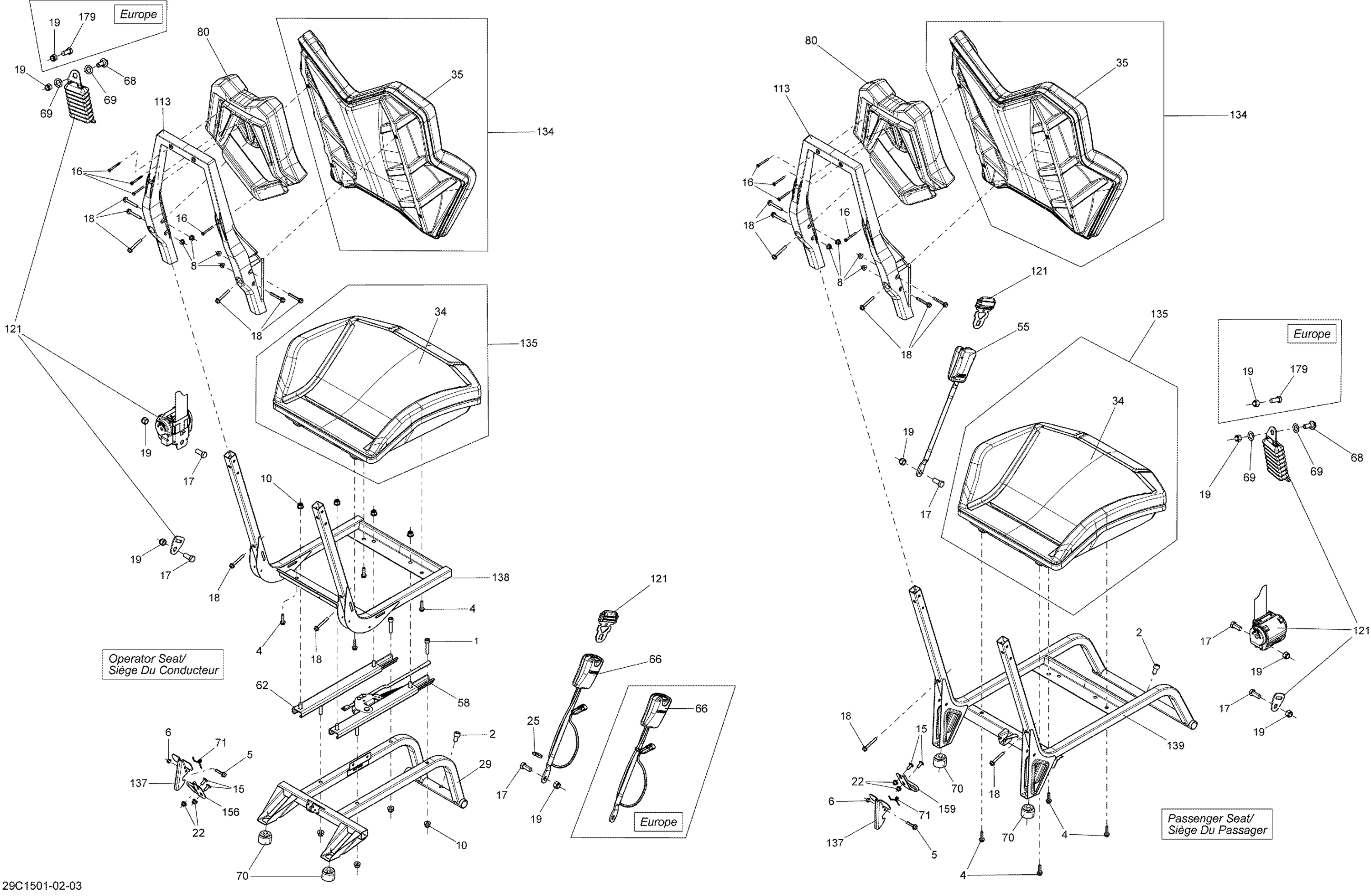

Can-Am Commmander 1000_LTD, 2015 Seat _29C1503 Diagram

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

Socket Screw M10 X 16

205501644

$3.88

Hex. Flange Screw M6 X 25

207562544

$1.60

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

Hex. Elastic Stop Nut M6

232561600

$1.06

Hex. Elastic Flange Nut M6

233161464

$0.96

Hex. Flange Elastic Nut M8

233281414

$1.31

Torx Screw M6 X 16

250000223

$2.00

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.79

Hex. Flange Screw M6

250000672

$2.00

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$6.70

Threaded Insert M6 X 1.0

250100242

Unavailable

Tie Wrap 368 mm

293750008

$0.97

Seat Member

708000667

$56.99

Seat Cover

708001564

$117.99

BACKREST COVER - Call your local BRP dealership

708001562

$114.99

Passenger Buckle Side

708000844

$53.99

PASSENGER BUCKLE SIDE - Call your local BRP dealership | Europe

708000857

Unavailable

RH Rail

708001739

$35.99

LH Rail

708000848

$52.99

Driver Buckle Side | Europe

708000856

Unavailable

Driver Buckle Side

708002061

$70.99

Safety Belt Screw

708000890

$3.79

Position Washer

708000891

$0.97

Rubber Bumper

708001671

$2.13

Spring

708000921

$0.96

Head Rest

708001074

$91.01

Seat Support

708001245

$26.09

SAFETY BELT - Call your local BRP dealership | Europe

708001130

Unavailable

Safety Belt

708001302

$260.42

BACKREST ASS'Y - Call your local BRP dealership

708001561

Unavailable

Cushion Ass'y

708001563

$314.90

Seat Latch

708001355

$2.59

Operator Seat Frame

708001356

$296.24

Passenger Seat Frame

708001357

$319.99

Retaining Rod LH

708002302

$13.45

RH Retaining Rod

708001482

Unavailable

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.79
