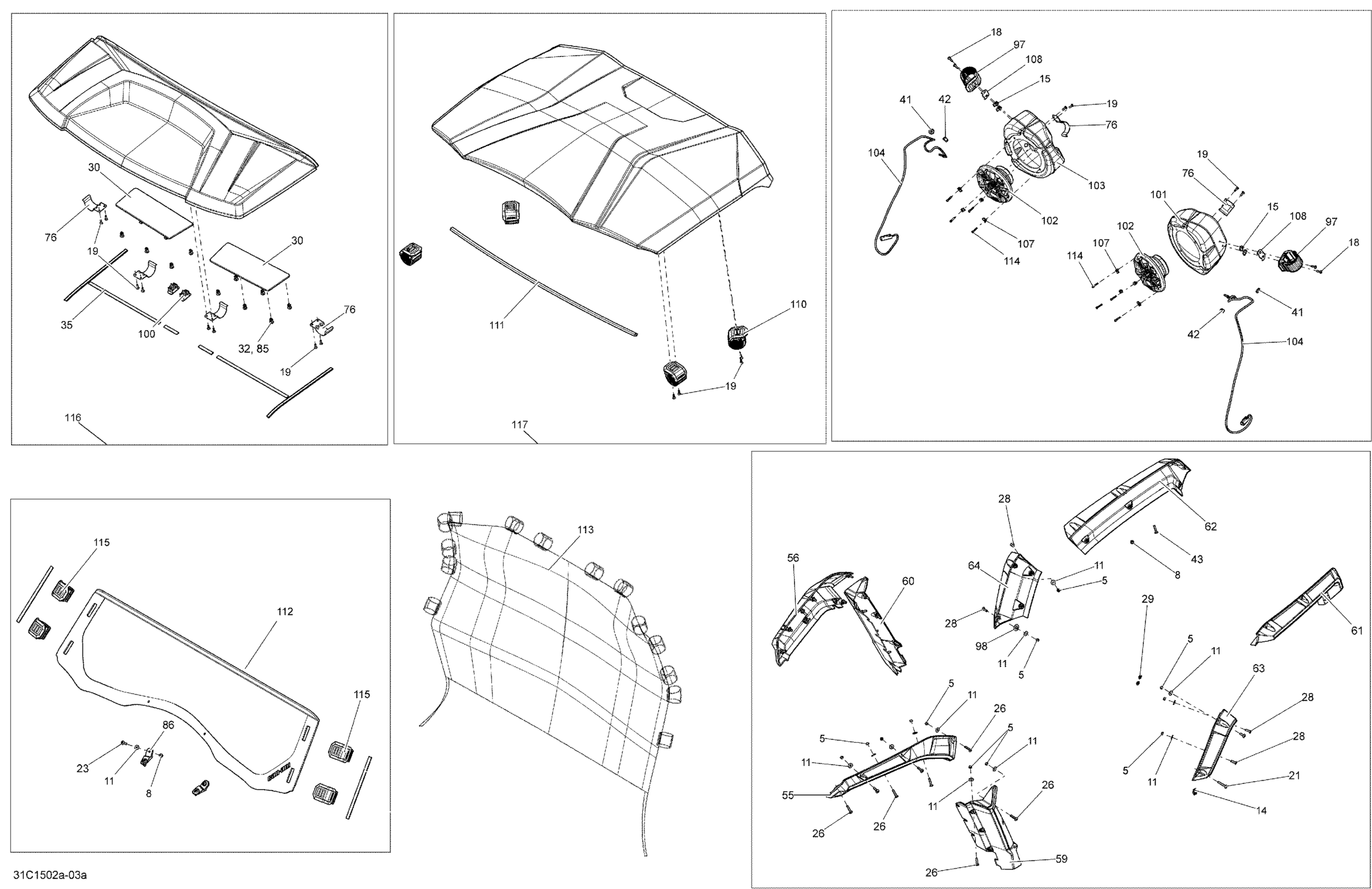

Can-Am Commmander 1000_LTD, 2015 Body And Accessories Kit_31C1503a Diagram

#

Description
Price

5

Elastic Stop Nut M6

232561434

$1.55

8

Hex. Flange Elastic Nut M6

233261494

$1.26

11

Stainless Steel Flat Washer

234062670

$1.74

14

Panel Nut M6 X 1.0

250100198

$1.73

15

Panel Nut M5 X 0.8

250000958

$3.48

18

Torx Screw M5 X 20

250000724

$1.39

19

Torx Screw K50 X 16

250000720

$1.39

21

Torx Screw M6 X 45

250000215

$1.56

23

Torx Screw M6 x 25

250000284

$1.74

26

Torx Truss Screw M6 X 30

250000843

$1.74

28

Torx Truss Screw M6 X 20

250000488

$1.74

29

PUSH NUT - Call your local BRP dealership

250100129

Unavailable

30

VISOR POCKET - Call your local BRP dealership | LTD

280000496

Unavailable

32

Tuflok Plastic Rivet

293150230

$1.21

35

Gasket, Neoprene 2000Mm Long

219704476

$12.64

41

Grommet

414036300

$2.22

42

Clip

414227300

$1.45

43

Torx Truss Screw M6 X 16

250000721

$1.39

55

Black, LH Upper Front Mudguard | LTD

705008666

$38.56

56

Black, RH Upper Front Mudguard | LTD

705008667

$38.56

59

Black, LH Lower Mudguard | LTD

705008668

$38.56

60

Black, RH Lower Mudguard | LTD

705008669

$38.56

61

LH Upper Rear Mudguards | LTD

705008671

$38.56

62

RH Upper Rear Mudguards | LTD

705008673

$38.56

63

Black, LH Rear Lower Mudguard | LTD

705008670

$38.56

64

RH Rear Lower Black Mudguard | LTD

705008672

$38.56

76

U Brace Strip | LTD

705009030

$18.43

85

VISOR FASTENER KIT - Call your local BRP dealership | LTD

705005658

Unavailable

86

Windshield Support | LTD

705005776

$12.91

97

Retainer Velcro Perforated

705013420

$40.74

98

Hardened Washer

706200281

$2.34

100

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

101

LH Speaker Box Ass'y

710002837

$141.51

102

Speaker

710002838

$163.05

103

RH Speaker Box Ass'y

710002839

$141.51

104

Speaker Harness

710004341

$109.97

107

Extruded Panel Nut M4 X 0.7

250100143

$6.77

108

M5 Support Plate

710002946

$7.37

110

Retainer Velcro Perforated

705013420

$40.74

111

Seal Tray 1000Mm Long

219704368

$12.91

112

Windshield Half Ass'y

703501024

$369.20

113

Wind Deflector

715003078

$133.82

114

Torx Pan Screw M4 X 20

250000622

$1.85

115

Retainer Velcro Perforated

705013420

$40.74

116

ROOF VISOR ASS'Y - Call your local BRP dealership | Model-Pearl White

705008597

Unavailable

116

Roof Visor Ass'y

715001952

Unavailable

117

MID ROOF KIT - Call your local BRP dealership

705008598

Unavailable

117

Mid Roof Kit

715001949

$649.97
