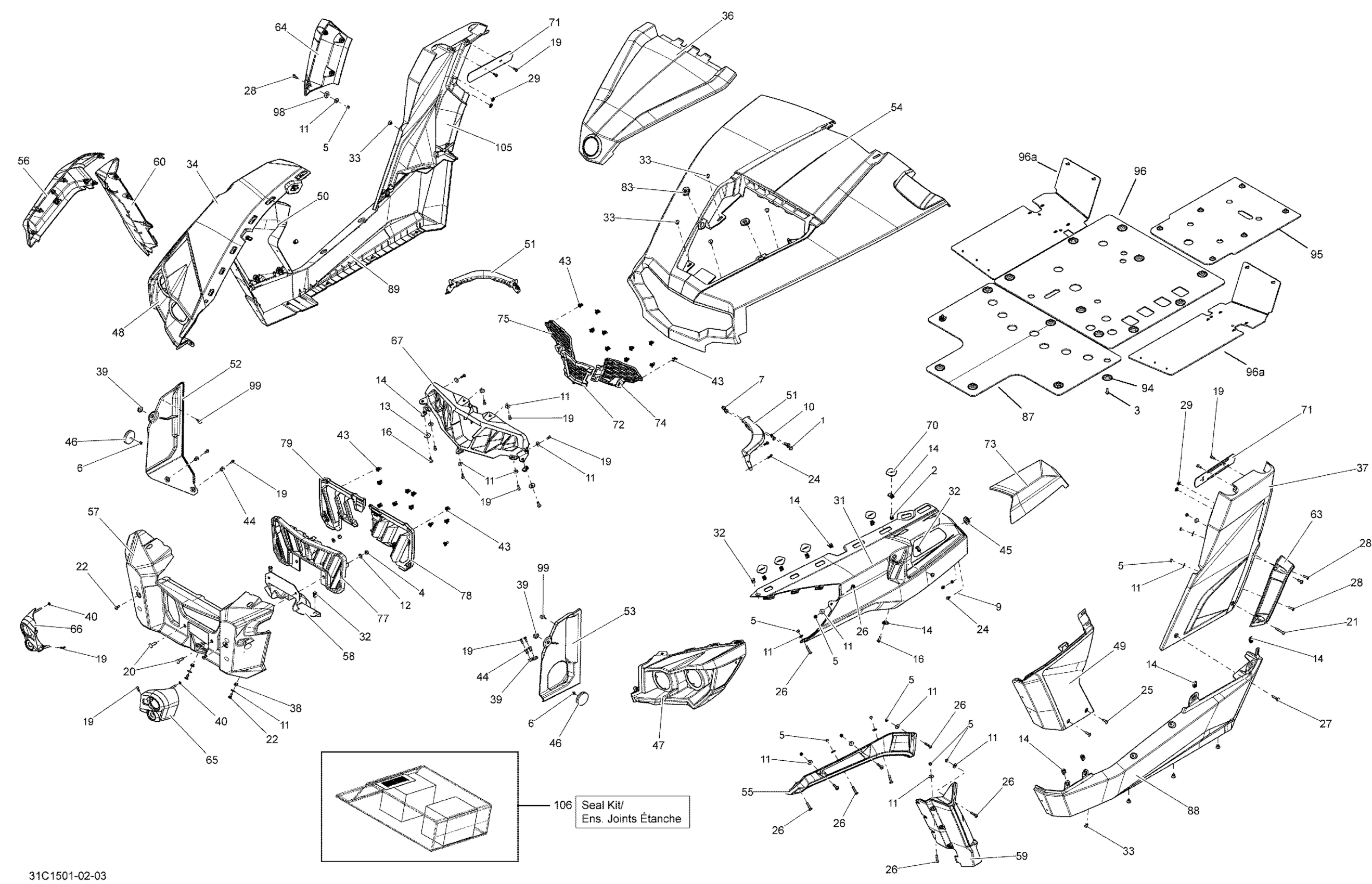

Can-Am Commmander 1000_LTD, 2015 Body And Accessories _31C1503 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.61

2

Hex. Flange Screw M6 X 20

207662044

$1.66

3

Hexagonal Head Screw

210262050

$1.74

4

Hex. Nut M8

232081414

$0.60

5

Elastic Stop Nut M6

232561434

$1.55

6

Hex. Flange Elastic Nut M5

233251414

$1.66

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

9

Flat Washer M5

234051410

$0.44

10

Stainless Flat Washer M6

234061600

$0.25

11

Stainless Steel Flat Washer

234062670

$1.74

12

Flat Washer 8 mm

234081410

$0.69

13

Flat Washer 8 mm

234082410

$1.11

14

Panel Nut M6 X 1.0

250100198

$1.73

16

Torx Screw M6 X 20

250000722

$1.34

19

Torx Screw K50 X 16

250000720

$1.39

20

Hex Torx Truss M8 X30

250000745

$3.05

21

Torx Screw M6 X 45

250000215

$1.56

22

Torx Screw M6 X 16

250000755

$0.72

24

Truss Head Torx Screw K50 X 20

250000297

$2.06

25

Torx Truss Screw M6 X 20

250000350

$4.39

26

Stainless, Torx Screw M6 X 30

250000842

$1.74

27

Torx Truss Screw M6 X 30

250000843

$1.74

28

Torx Truss Screw M6 X 20

250000488

$1.74

31

FENDER FL B-341 - Call your local BRP dealership | White

705006774

$710.74

31

DEEP PEWTER SATIN LH FRONT FENDER - Call your local BRP dealership | Model-Deep Pewter Satin

705008341

Unavailable

34

Painted Hybrid White Rh Front Fender | White

705011766

$379.97

34

DEEP PEWTER SATIN RH FRONT FENDER - Call your local BRP dealership | Model-Deep Pewter Satin

705008343

Unavailable

36

PAINTED HYBRID WHITE HOOD - Call your local BRP dealership | White

705011739

Unavailable

36

DEEP PEWTER SATIN REMOVABLE HOOD - Call your local BRP dealership | Model-Deep Pewter Satin

705008348

Unavailable

37

PANEL_BODY REAR L B-341 - Call your local BRP dealership | White

705006744

Unavailable

37

DEEP PEWTER SATIN LH REAR LAT. PANEL - Call your local BRP dealership | Model-Deep Pewter Satin

705008355

Unavailable

47

LH Front Facia

705002885

$69.20

48

RH Front Facia

705002886

$69.20

49

PANEL_BODY FL B-341 - Call your local BRP dealership | White

705006037

$313.05

49

Deep Pewter Satin LH Front Lateral Panel | Model-Deep Pewter Satin

705008350

$243.82

50

PANEL_BODY FR B-341 - Call your local BRP dealership | White

705006059

Unavailable

50

PANEL_BODY FR B-371 - Call your local BRP dealership | Model-Deep Pewter Satin

705011643

Unavailable

52

RH Deflector

705002894

$18.43

53

LH Deflector | XT

705005113

$15.35

54

HOOD B-341 - Call your local BRP dealership | White

705006036

Unavailable

54

DEEP PEWTER SATIN FIXED HOOD - Call your local BRP dealership | Model-Deep Pewter Satin

705008347

Unavailable

55

Black, LH Upper Front Mudguard | LTD

705008666

$38.56

56

Black, RH Upper Front Mudguard | LTD

705008667

$38.56

57

Black Front Facia

705008689

$94.58

58

Bottom Deflector | Except XT Models

705003399

$13.69

59

Black, LH Lower Mudguard | LTD

705008668

$38.56

60

Black, RH Lower Mudguard | LTD

705008669

$38.56

63

Black, LH Rear Lower Mudguard | LTD

705008670

$38.56

64

RH Rear Lower Black Mudguard | LTD

705008672

$38.56

65

Not Available As Spare Parts

XXX

Unavailable

66

Not Available As Spare Parts

XXX

Unavailable

67

FASCIA UP B-160 - Call your local BRP dealership

705003629

$19.20

70

Support Plate

705003841

$0.91

71

Support Skid Plate

705007916

$12.68

72

Center Upper Facia Protector

705004336

$4.03

73

COVER_AIR INLET FL B-341 - Call your local BRP dealership | White

705006054

Unavailable

73

Deep Pewter Satin CVT Inlet Cover | Model-Deep Pewter Satin

705008345

$167.66

74

LH Upper Facia Protector

705004350

$4.03

75

RH Upper Facia Protector

705004351

$4.03

77

Lower Front Facia Protector

705004755

$16.89

78

LH Lower Rear Facia Protector

705004819

$16.89

79

RH Lower Rear Facia Protector

705004820

$16.89

83

Oval Washer

705005156

$4.85

87

Middle Protector Plate

705007055

$78.43

88

LH Middle Side Pannel | XT

705006993

$69.20

89

RH Middle Side Pannel | XT

705006994

$69.20

94

Cup | Package Hunter

705007171

$6.18

95

Rear Protector Plate

705007227

$32.28

96

Rear Protector Plate

705007056

$115.35

96a

RH Lateral Skid Plate

705007038

$64.58

98

Hardened Washer

706200281

$2.34

99

Rubber Stopper

708000759

$3.61

105

PAINTED HYBRIB WHITE RH REAR PANEL - Call your local BRP dealership | White

705011694

$449.20

105

DEEP PEWTER SATIN RH REAR LATERAL PANEL - Call your local BRP dealership | Model-Deep Pewter Satin

705008359

Unavailable

106

Seal Kit

705008208

Unavailable
