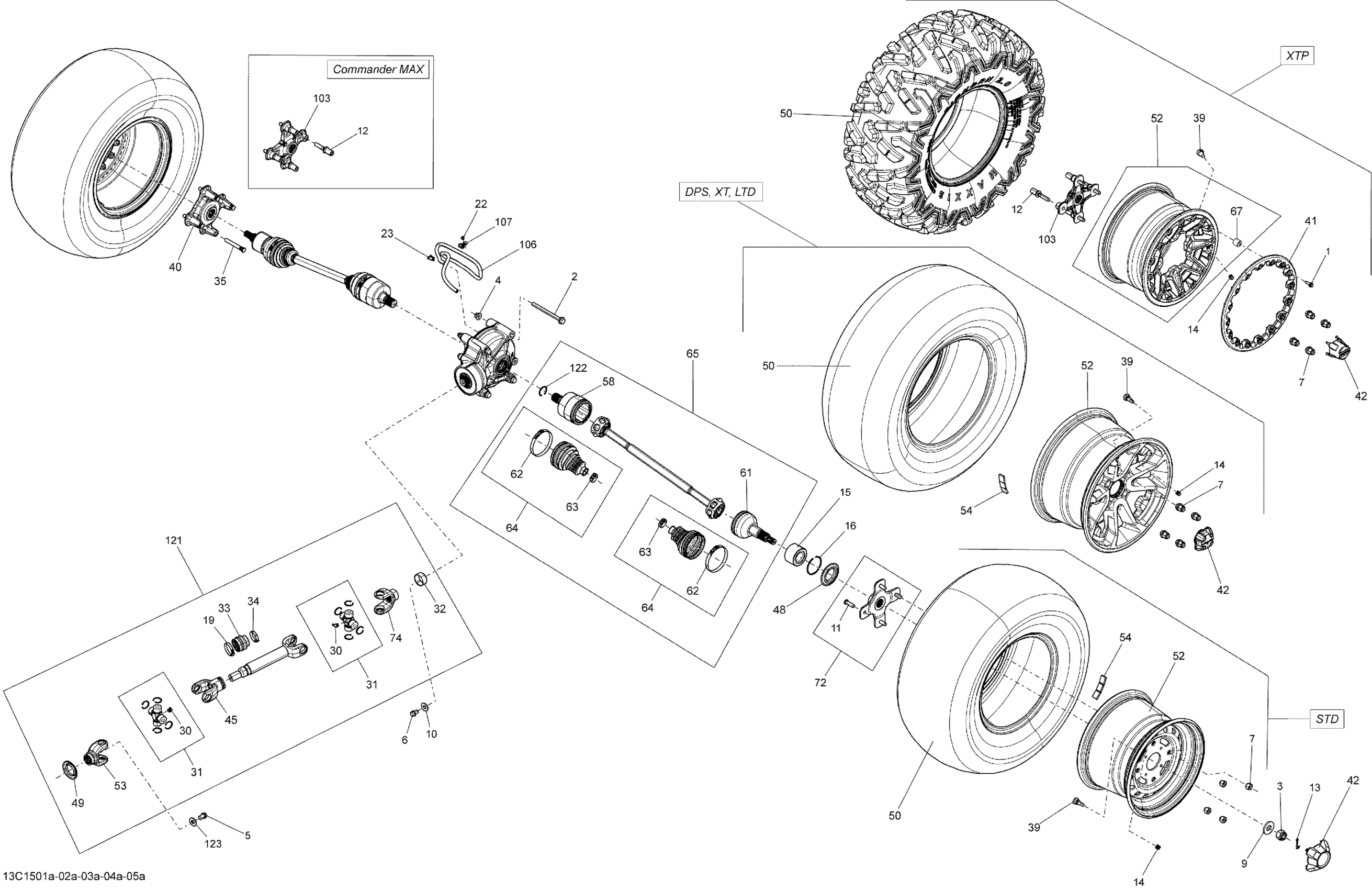

Can-Am Commmander 1000_LTD, 2015 Drive System, Rear _13C1503a Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Hex. Flange Screw M10 X 125

230602546

$6.08

3

Hex. Flange Castellated Nut M18

232291413

$2.82

4

Hex. Flange Elastic Nut M10

233201436

$1.74

5

Hex Flange Screw M12 X 16

250001039

$1.74

6

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

7

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

9

Conical Spring Washer M18

250200171

$5.28

10

Flat Washer M10 | 4X4

250200014

$1.17

11

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

12

Not Available As Spare Parts

XXX

Unavailable

13

Cotter Pin

250400036

$1.74

14

Valve Cap

293000110

$1.18

15

Ball Bearing

293350150

$51.93

16

Circlip

293370019

$4.98

19

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

22

Pop Rivet 3/16"

390402200

$0.26

23

Clip

414227300

$1.45

30

Grease Fitting | T3

715900295

$4.62

31

Universal Joint Ass'y | T3

703500846

$78.43

32

Wear Ring | 4X4

705400036

$25.35

33

Rubber Boot

715900118

$13.83

34

Oetiker Gear Clamp 36.1MM

509000045

$3.55

35

Wheel Stud

705401964

$10.14

39

Rim Valve With Cap

705400193

$6.69

40

Wheel Hub

705401314

$129.20

41

Not Available As Spare Parts

XXX

Unavailable

42

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.06

45

Spline Yoke

715900106

$41.51

48

Wear Sleeve | 4X4

705501121

$7.28

49

Protector

705501123

$7.37

50

27X11R14 Rear Tire

705502665

$244.58

52

Rear Rim

705502635

$189.97

53

Joint

715900272

$23.05

54

1/2 Oz Weight

219704465

$4.35

58

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

61

CV Joint

705501776

Unavailable

62

Oetiker Clamp, 82.1 mm

715900241

$7.84

63

Oetiker Clamp, 27.3 mm

715900242

$7.84

64

Boot Kit

705501864

$41.51

65

Joint Assemble *Half Shaft | Includes 63 to 68

705502359

$232.74

67

Not Available As Spare Parts

XXX

Unavailable

72

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

Unavailable

74

Joint

715900271

$23.05

103

Not Available As Spare Parts

XXX

Unavailable

106

Polyurethane Hose 10000Mm Long

219704410

$46.12

107

Clamp

293650256

$4.36

121

Shaft Ass'y Kit

703500985

$110.74

122

Circlip

705501781

$5.38

123

Flat Washer M12

250200102

$1.74
