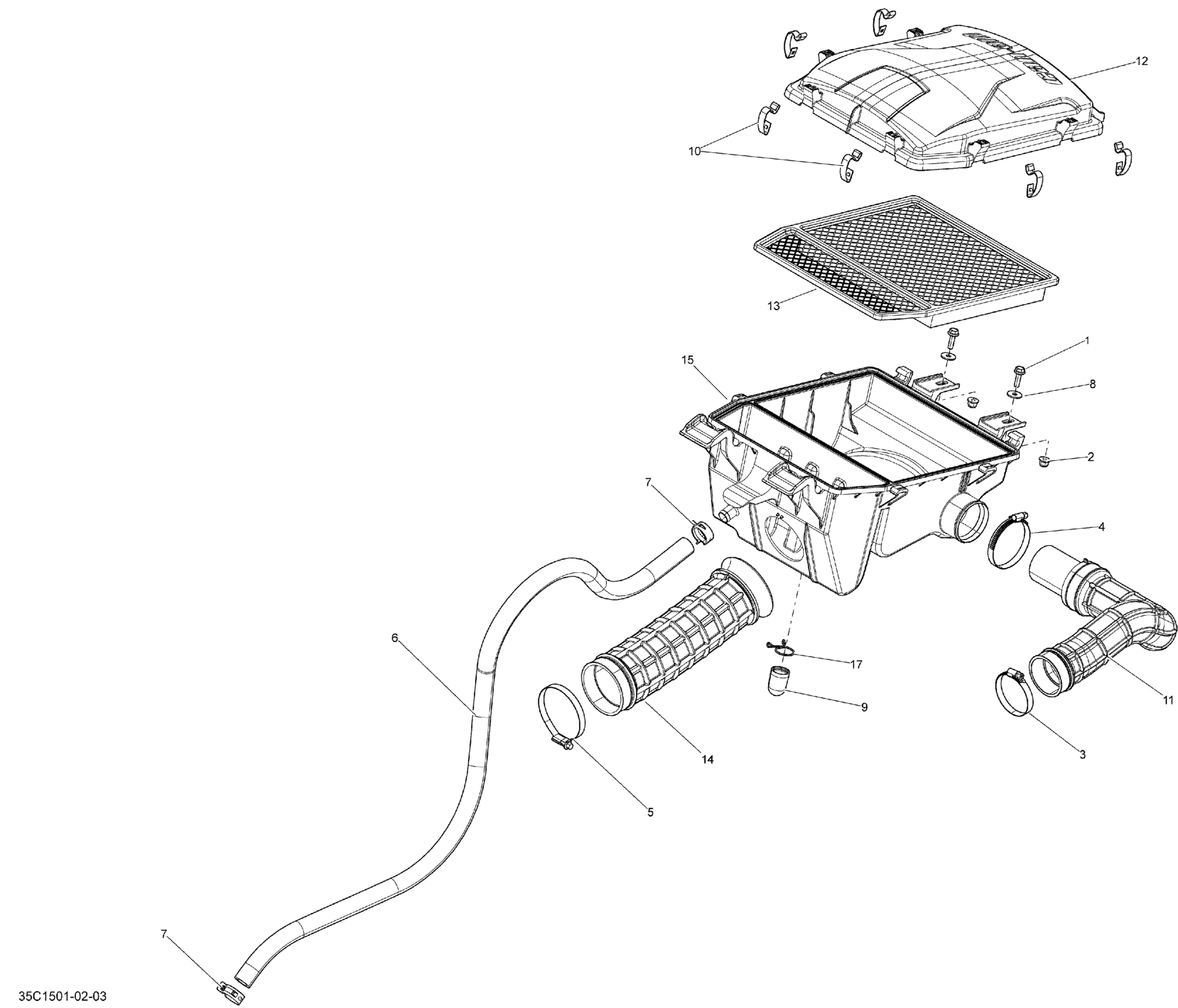

Can-Am Commmander 1000_LTD, 2015 Air Intake _35C1503 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3

Norma Clamp

293650077

$7.41

4

Norma Clamp

293650079

$11.60

5

Norma Clamp

293650091

$11.12

6

Was 707800411 Hose 15.88 mm

219704438

$12.99

7

Norma Spring Clamp

293650213

$3.17

8

Flat Washer

250200082

$0.42

9

Drain Tube

707800080

$8.29

10

Cover Bracket

707800249

$9.39

11

Intake Adaptor

707800322

$61.99

12

Air Intake Silencer Cover

707800326

$33.99

13

Air Filter

707800327

$52.99

14

Intake Adaptor

707800329

$48.99

15

Air Intake Silencer Base

707800517

$54.99

17

Retainer Clip

707800278

$13.99
