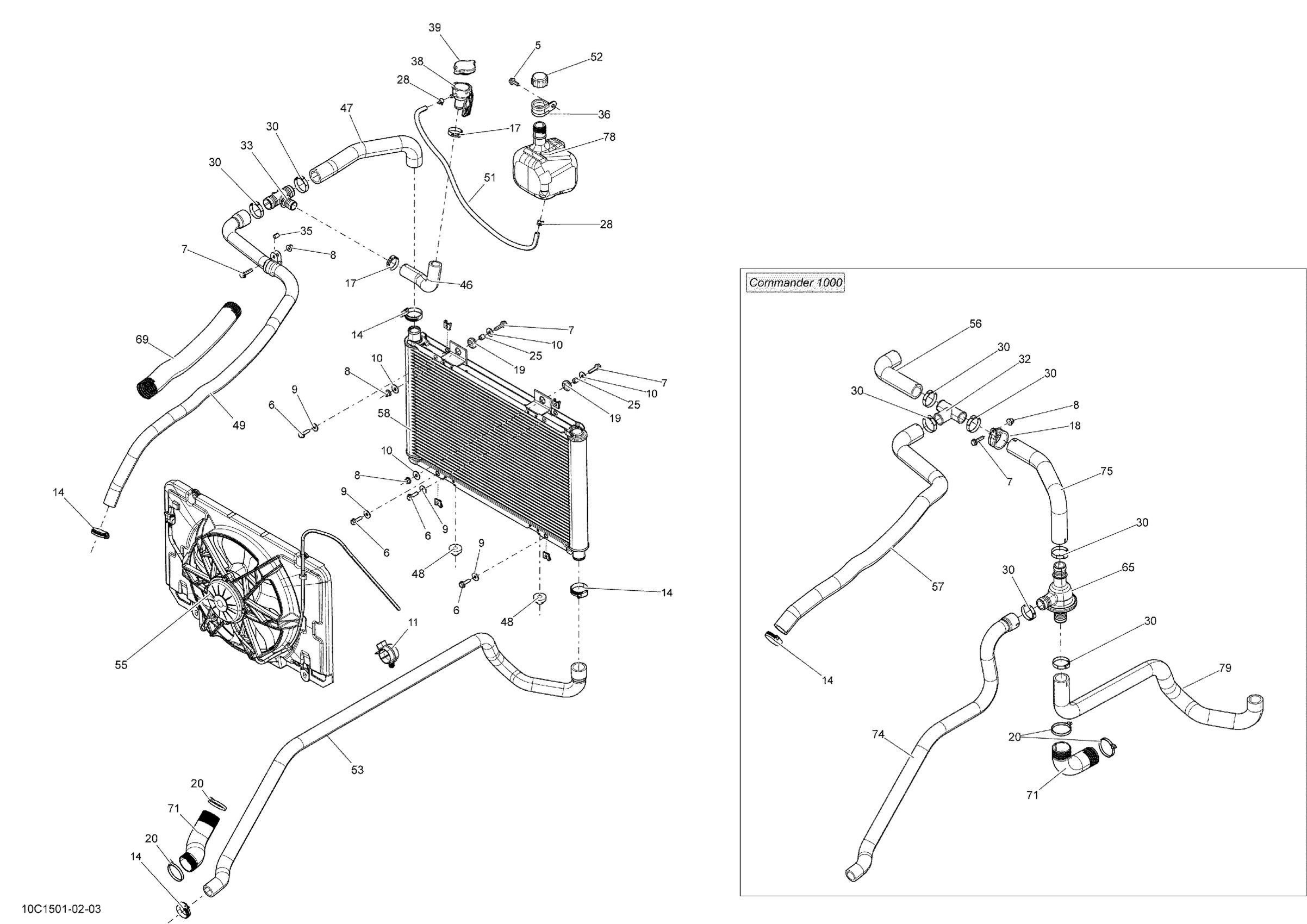

Can-Am Commmander 1000_LTD, 2015 Cooling System _10C1503 Diagram

#

Description
Price

5

Hex. Flange Screw M6 X 16

207661644

$0.61

6

Hex. Flange Screw M6 X 20

207662044

$1.66

7

Hex. Flange Screw M6 X 25

207662534

$1.74

8

Flange Elastic Nut M6

233261434

$3.61

9

Flat Washer 6 mm

234062410

$0.64

10

Flat Washer

250200082

$0.35

11

Retainer

275500590

$7.18

14

Norma Gear Clamp

293650098

$4.28

17

Crimp Clamp

293650099

$4.60

18

Not Available As Spare Parts

XXX

Unavailable

19

Grommet

709000582

$4.38

20

Tie Wrap 368 mm

293750008

$0.85

25

Bushing

293900105

$6.26

28

Spring Clamp

414554800

$0.83

30

Gear Clamp

509000162

$5.84

32

T-Fitting

509000219

$15.35

33

T-Fitting

509000372

$7.87

35

Not Available As Spare Parts

XXX

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

38

Filler Neck

709200179

$17.66

39

Radiator Pressure Cap

709200207

$18.82

46

Filler Neck Hose

709200264

$10.14

47

Radiator Outlet Hose

709200265

$10.98

48

Grommet

709200285

$7.09

49

Not Available As Spare Parts

XXX

Unavailable

51

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

52

Tank Cap

709200587

$5.29

53

Not Available As Spare Parts

XXX

Unavailable

55

Fan Ass'y

709200566

$267.66

56

Intermediate Hose

709200904

$23.05

57

Intermediate Hose

709200382

$27.66

58

Radiator

709200395

$359.97

65

Thermostat

709200406

$77.32

69

Tubing 35 MM 1000MM Long

219704428

$8.57

71

Tubing 35 MM 1000MM Long

219704428

$8.57

74

Pump Hose

709200441

$36.89

75

Hose

709200447

$24.58

78

Coolant Tank Ass'y

709200624

$96.89

79

Hose_Radiator In

709200909

$23.05
