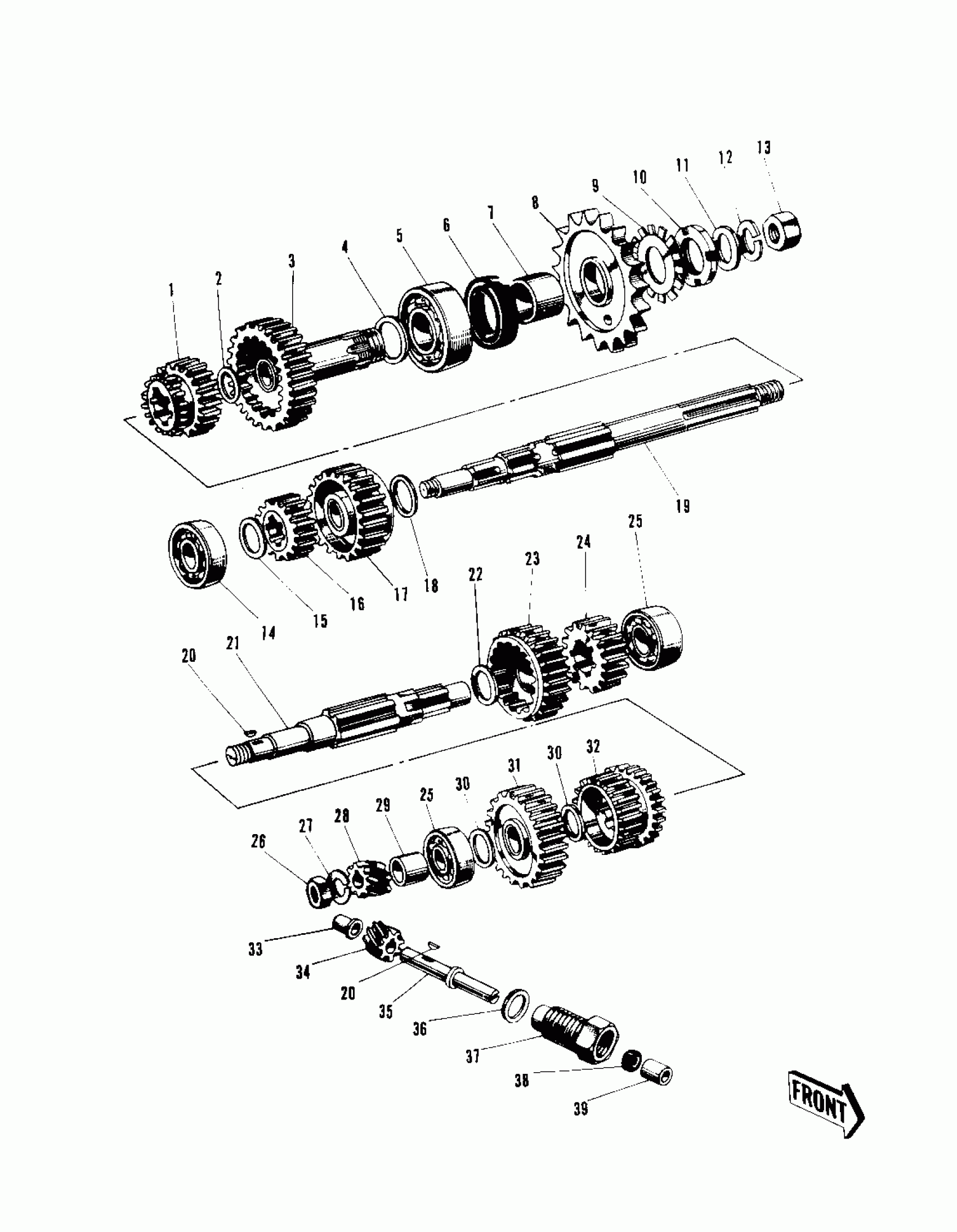

Kawasaki Commander TRANSMISSION (-E/NO. W1M 4000) Diagram

#

Description
Price

1

2ND GEAR DRIVE SHAFT

13130-011

Unavailable

2

WASHER TOP GEAR THRST

92026-041

$3.95

3

TOP GEAR DRIVE SHAFT

13136-016

Unavailable

4

SPACER TOP GEAR

92026-039

$3.96

5

BEARING BALL #6206N

92045-006

$11.21

6

OIL SEAL SC405465

92050-018

Unavailable

7

SPACER ENG SPROCKET

92027-042

$7.48

8

ENGINE SPROCKET 19T

13144-021

Unavailable

9

WASHER LOCK 30MM

92032-001

$1.69

10

NUT 30MM

92015-011

$4.08

11

WASHER MAIN SHT THRST

92026-040

$7.66

12

WASHER SPRING 16MM

461E1600

$1.12

13

NUT-HEX-FINE,16MM

315B1600

Unavailable

13

NUT 16MM

92015-029

$3.66

14

BEARING-BALL,#6204

601A6204

$12.90

15

WASHER MAIN SHT THRST

92026-036

$4.51

16

LOW GEAR DRIVE SHAFT

13129-019

Unavailable

17

UNAVAILABLE IN PRICE BOOK

13132-008

$34.99

18

SPACER 3RD GEAR

92026-038

$3.87

19

SHAFT DRIVE

13127-014

Unavailable

20

WOODRUFF KEY SPD GEAR

92038-006

$1.39

21

UNAVAILABLE IN PRICE BOOK

13128-015

Unavailable

22

SPACER 2ND GEAR

92027-045

$3.64

23

2ND GEAR OUTPUT SHAFT

13131-013

Unavailable

24

TOP GEAR OUTPUT SHAFT

13137-006

Unavailable

25

BEARING-BALL,#6302C3

601B6302

$6.24

26

NUT-HEX-FINE,14MM

315B1400

$2.03

27

WASHER SPRING 14MM

461F1400

Unavailable

28

UNAVAILABLE IN PRICE BOOK

13224-002

$30.83

29

SPACER SPEED PINION

92027-043

$3.18

30

WASHER MAIN SHT THRST

92026-017

$4.01

31

LOW GEAR OUTPUT SHAFT

13129-021

Unavailable

32

3RD GEAR OUTPUT SHAFT

13133-009

Unavailable

33

BUSH SPEED GEAR SHAFT

92028-084

$7.35

34

GEAR SPEEDOMETER

13225-001

Unavailable

35

SHAFT SPEED GEAR

13226-001

Unavailable

36

GASKET SPD GR HOUSING

92065-032

$0.24

37

HOUSING SPEED GEAR

13227-001

Unavailable

38

OIL SEAL VB8178

92053-005

Unavailable

39

SPACER SPEED GEAR SHT

92027-044

$1.77
