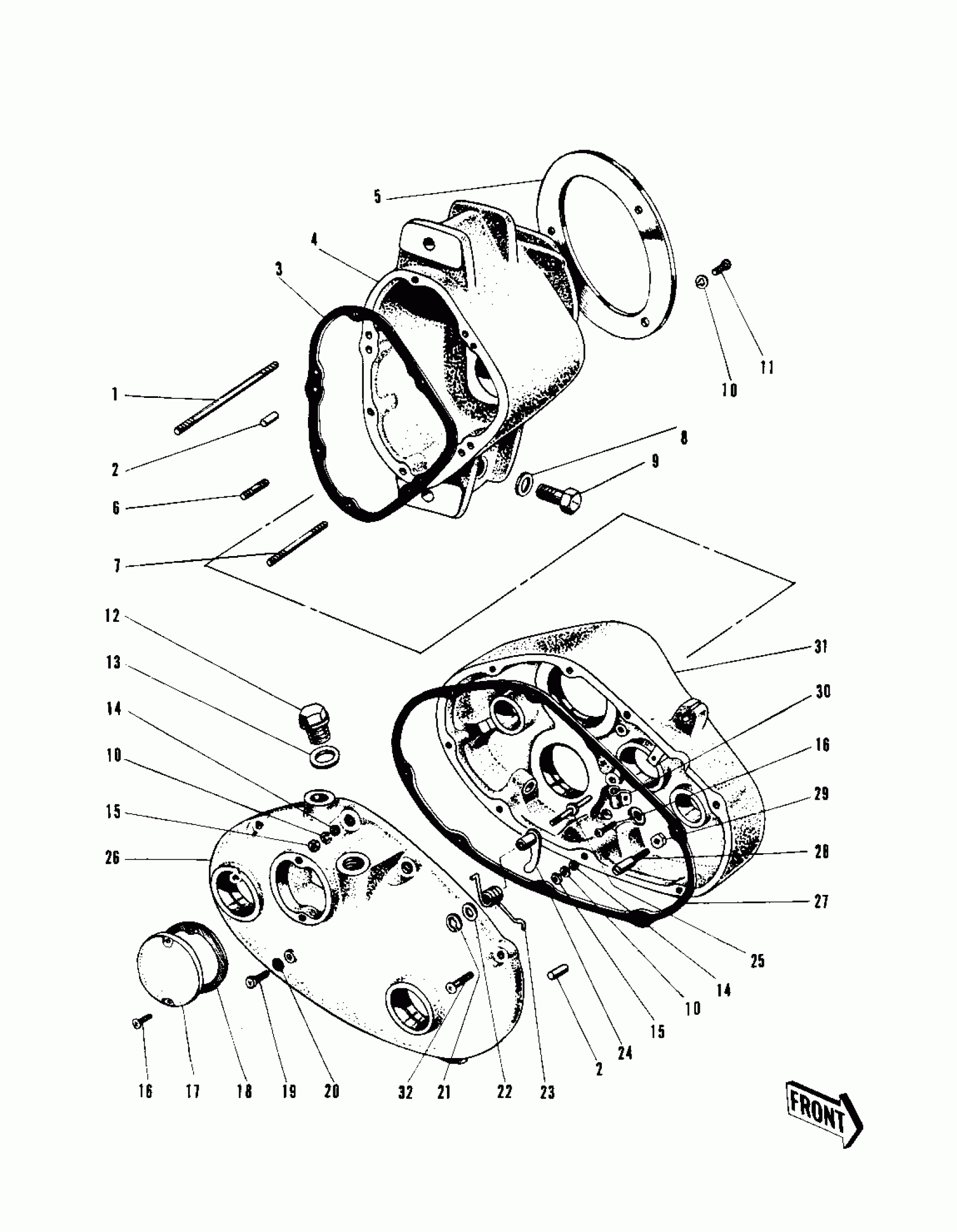

Kawasaki Commander TRANSMISSION CASE/GEAR CASE Diagram

#

Description
Price

1

STUD 6X78

92004-015

$3.61

2

PIN DOWEL 8X14

552A0814

$0.42

3

GASKET GEAR BOX

14058-001

$10.39

4

GEAR BOX

14054-001

$111.92

5

PLATE DUST SHIELD

14061-001

$5.63

6

STUD

172G0618

$1.23

7

STUD 6X50

172G0650

Unavailable

8

GASKET DRAIN PLUG

92065-036

$1.36

9

BOLT,HEX HEAD,10X14

113G1014

$2.86

10

WASHER SPRING 6MM

461F0600

$0.69

11

BOLT,6X10

112G0610

$0.58

12

PLUG OIL FILLER

92066-009

$7.30

13

GASKET OIL FILER PLUG

92065-034

$3.88

14

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

15

NUT 6MM

311B0600

$0.93

16

SCREW PAN HEAD 6X12

220B0612

Unavailable

17

UNAVAILABLE IN PRICE BOOK

14040-002

Unavailable

17

CAP HOLE

14028-004

Unavailable

18

GASKET HOLE CAP

14049-003

$3.55

19

SCREW-PAN-CROS,6X8

220B0608

$0.59

20

GASKET OIL LEVEL SCRW

92065-035

Unavailable

21

CIRCLIP-TYPE-E,6MM

482J6000

$0.69

22

WASHER CHNG DRUM LEV

92022-091

Unavailable

23

SPRING CHNG DRUM LEV

92083-008

$6.81

24

LEVER GEAR CHNG DRUM

13168-009

Unavailable

25

PIN CHANGE DRUM LEVER

92043-018

$3.67

26

COVER MISSION CASE

14056-001

$111.92

27

GASKET MISSION CASE

14058-002

Unavailable

28

PIN CHANG PEDAL SPRNG

92043-014

Unavailable

29

NUT 6MM

312B0600

$0.72

30

CLAMP NEUTRAL SW CORD

14062-001

$1.02

31

CASE TRANSMISSION

14055-001

$90.86

32

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82
