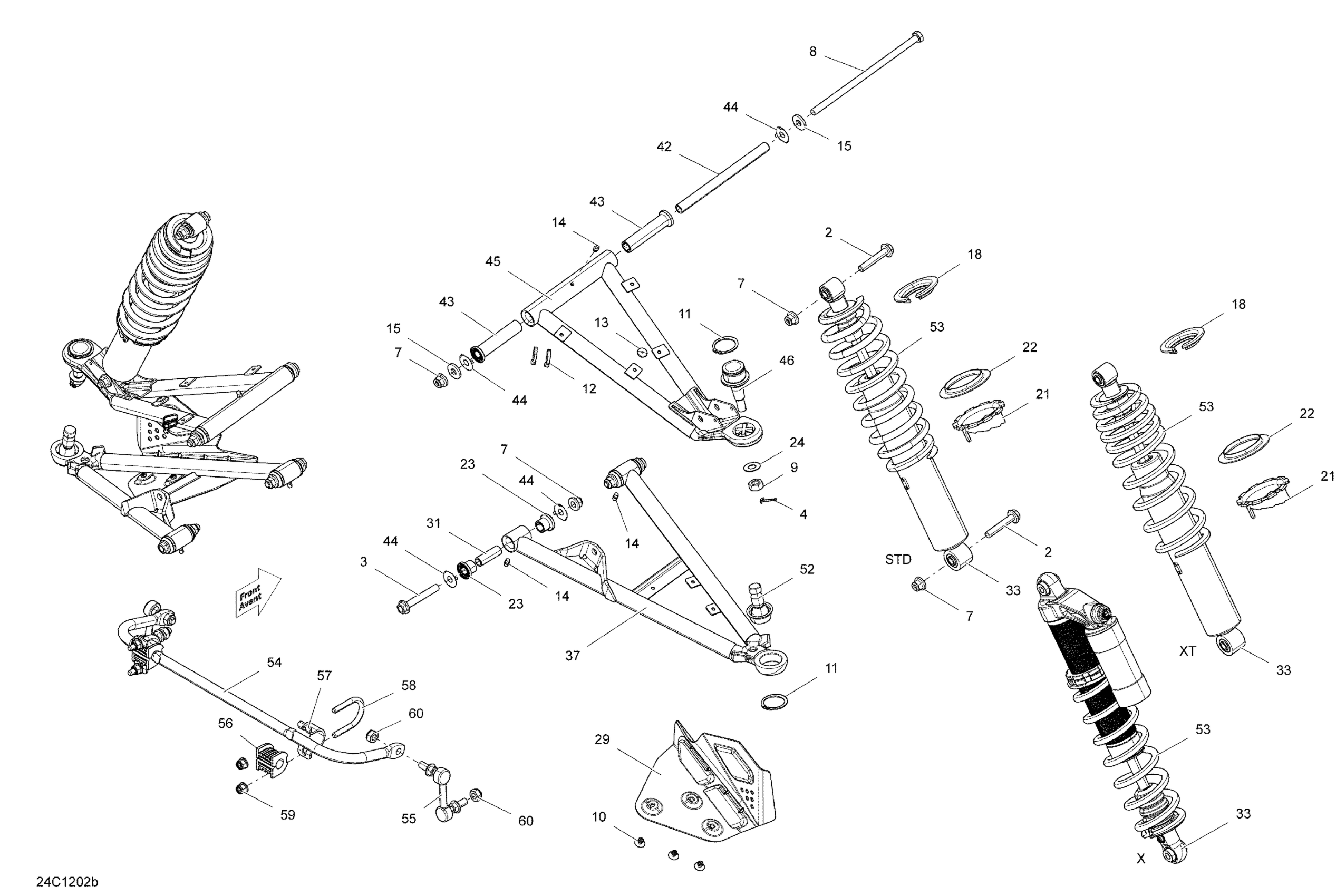

Can-Am Commander STD, XT, X, 1000 EFI, 2012 Front Suspension X Model Diagram

#

Description
Price

2

Hex. Flange Screw M10 X 55

207605544

$2.78

3

Hex. Flange Screw M10 X 70

207607046

$2.91

4

Cotter Pin

211400017

$0.25

7

Hex. Flange Elastic Nut M10

233201436

$1.74

8

Hex. Cap Screw M10 X 225

250001032

$9.49

9

Nut M12

250100099

$1.64

10

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

11

Circlip

293370035

$2.55

12

Tie Wrap 142 mm

293750002

$0.88

13

Pop Rivet 3/16"

390406500

$0.70

14

Grease Fitting

408200700

$2.80

15

Washer

503190439

$5.82

18

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

24

Hardened Washer

706200281

$2.34

29

RH Protector

706201670

$17.66

29

LH Protector

706201669

$17.66

31

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

33

FRONT SHOCK - Call your local BRP dealership | X

706201449

Unavailable

37

LH Lower Suspension Arm

706200742

$184.58

37

RH Lower Suspension Arm

706200744

$184.58

42

Bushing

706202445

$16.89

43

Cushion

706201062

$4.60

44

Wear Plate

706201063

$0.89

45

Suspension Upper Arm

706200796

$184.58

46

Ball Joint

706202044

$35.14

52

Ball Joint

706202507

$59.97

53

YELLOW FRONT SPRING - Call your local BRP dealership | X

706201124

Unavailable

54

Sway Bar Ass'y | X

706202560

$96.89

55

LH Sway Bar Link | X

706202536

$64.58

55

RH Sway Bar Link | X

706202537

$69.20

56

Stabilizer Bushing | X

706201086

$9.22

57

Clamp | X

706201087

$11.98

58

U-clamp | X

506060600

$15.35

59

Hex. Flange Elastic Nut M8

233281414

$1.14

60

Elastic Flange Nut M10

232501416

$1.25
