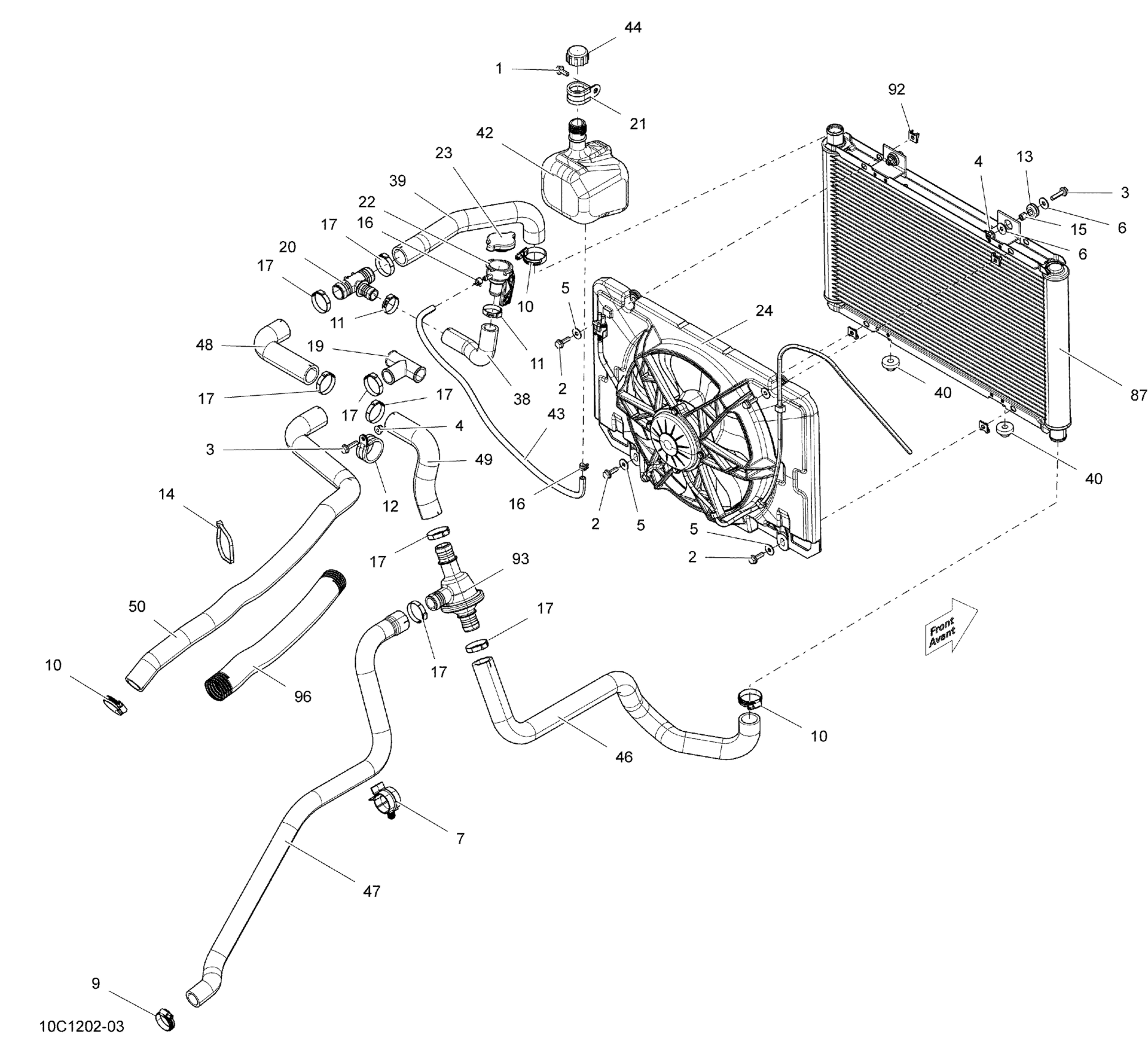

Can-Am Commander STD, XT, X, 1000 EFI, 2012 Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.70

2

Hex. Flange Screw M6 X 20

207662044

$1.91

3

Hex. Flange Screw M6 X 25

207662534

$2.00

4

Flange Elastic Nut M6

233261434

$4.15

5

Flat Washer 6 mm

234062410

$0.73

6

Flat Washer

250200082

$0.40

7

Retainer

275500590

$8.24

9

Norma Gear Clamp

293650098

$4.15

10

Norma Gear Clamp

293650098

$4.15

11

Crimp Clamp

293650099

$4.07

12

Hose Retainer

293650218

$7.72

13

Grommet

709000582

$4.25

14

Tie Wrap 368 mm

293750008

$0.97

15

Bushing

293900105

$6.07

16

Spring Clamp

414554800

$0.81

17

Gear Clamp

509000162

$4.90

19

T-Fitting

509000219

$14.90

20

T-Fitting

509000372

$9.03

21

Hose Anchor

709200036

$10.51

22

Filler Neck

709200179

$17.13

23

Radiator Pressure Cap

709200207

$21.61

24

Fan Ass'y

709200566

$251.46

38

Filler Neck Hose

709200264

$9.54

39

Radiator Outlet Hose

709200265

$10.51

40

Grommet

709200285

$8.13

42

Coolant Tank Ass'y

709200624

$91.76

43

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

44

Tank Cap

709200587

$5.15

46

RADIATOR INLET HOSE - Call your local BRP dealership

709200378

Unavailable

47

PUMP HOSE - Call your local BRP dealership

709200379

Unavailable

48

Intermediate Hose

709200904

$22.36

49

RECIRCULATION HOSE - Call your local BRP dealership

709200381

Unavailable

50

Intermediate Hose

709200382

$26.09

87

Radiator

709200395

$346.24

92

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable

93

Thermostat

709200406

$88.78

96

Tubing 35 MM 1000MM Long

219704428

$9.84
