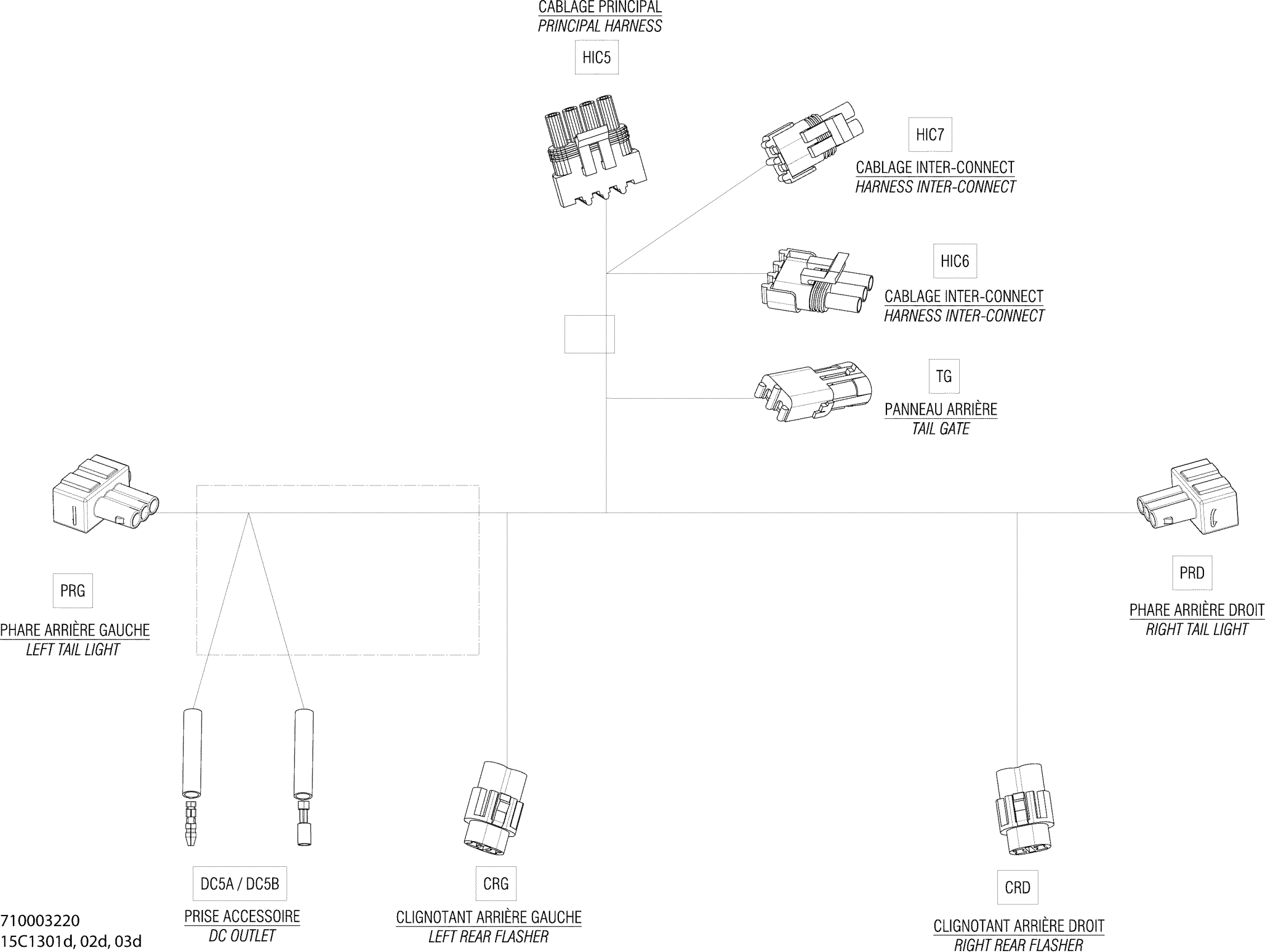

Can-Am Commander STD, DPS, XT, X 1000 EFI, 2013 Electrical Harness Rear, EUROPE Diagram

Description

Price

Rear Harness

710003220

$205.94

PRD

Female Terminal

278000998

$4.00

PRG

Female Terminal

278000998

$4.00

Male Terminal | XT Models

278000222

$2.93

HIC7

Female Terminal

409007300

$0.42

HIC5

Female Terminal

278000223

$2.93

HIC6

Female Terminal

278000223

$2.93

Female Housing, 2 Circuits

278000217

$8.72

HIC7

Male Connector, 2 Circuits

278000220

$12.66

HIC6

Male Housing, 3 Circuits

278000273

$8.72

HIC5

Male Housing, 4 Circuits

278000395

$14.57

HIC7

Wire Seal

278000218

$4.00

CRD

Female Terminal

409012100

$4.28

CRG

Female Terminal

409012100

$4.28

CRD

Not Available As Spare Part - Friction Washer

Unavailable

CRD

Seal

409012300

$4.25

CRG

Seal

409012300

$4.25

DC5A

Insulated Sheath

278001008

$3.10

DC5B

Insulated Sheath

278001007

$3.12

PRD

Seal

415128501

$1.73

PRG

Seal

415128501

$1.73

HIC5

Wire Seal

278001065

$5.85

DC5B

Female Terminal

710000421

$5.30

DC5A

Female Terminal

278002261

$6.01
